Home > Schneider Electric > Automation & Control > Motors, Drives & Control > VX5VPS5001 – Wear part, enclosure door, fan for variable speed drive, Altivar Process 600 900, from 30 to 90kW

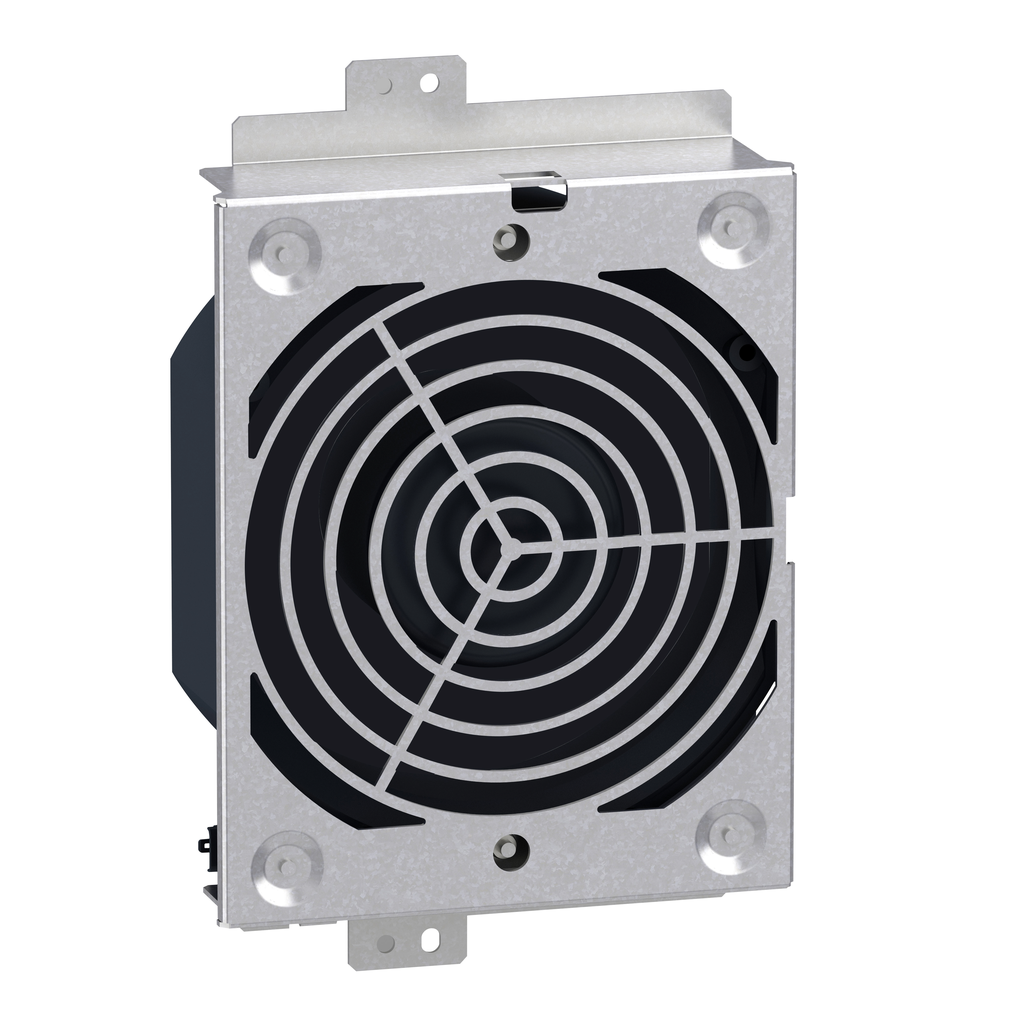

VX5VPS5001 – Wear part, enclosure door, fan for variable speed drive, Altivar Process 600 900, from 30 to 90kW
VX5VPS5001
Wear part, enclosure door, fan for variable speed drive, Altivar Process 600 900, from 30 to 90kW

This product is a wear part for Drive Altivar 340, Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 30kw to 90kw and a rated voltage from 200V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 30.5cm (width) x 30.5cm (Length) x 9.5cm (Height) and weighs 1.14kg. This power fan is compatible with ATV340D45N4E to D75N4E, ATV*30D30M3 to D45M3, ATV*30D55N4 to D90N4, ATV*50D55N4 to D90N4, ATV650D55N4E to D90N4E and ATV930D30M3C to D45M3C. This kit includes 1 power fan for IP21 and IP55 drives, 1 bracket, 1 instruction sheet. IoT-ready variable speed drives for safety and heavy duty applications from 0.75 to 75kW (1 to 100Hp). Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Accessory / Separate Part Category cooling accessory
Range Compatibility Altivar Process 600/900
Product Or Component Type fan
Accessory / Separate Part Type fan kit
Warranty 18 months
Product Compatibility
  • variable speed drive ATV630 wall mount 30-30 kW 200...240 V
  • variable speed drive ATV630 wall mount 37-37 kW 200...240 V
  • variable speed drive ATV630 wall mount 45-45 kW 200...240 V
  • variable speed drive ATV630 wall mount 55-55 kW 380...480 V
  • variable speed drive ATV630 wall mount 75-75 kW 380...480 V
  • variable speed drive ATV630 wall mount 90-90 kW 380...480 V
  • variable speed drive ATV930 wall mount 30-30 kW 200...240 V
  • variable speed drive ATV930 wall mount 37-37 kW 200...240 V
  • variable speed drive ATV930 wall mount 45-45 kW 200...240 V
  • variable speed drive ATV930 wall mount 55-55 kW 380...480 V
  • variable speed drive ATV930 wall mount 75-75 kW 380...480 V
  • variable speed drive ATV930 wall mount 90-90 kW 380...480 V
  • variable speed drive ATV340 45-45 kW 380...480 V
  • variable speed drive ATV340 55-55 kW 380...480 V
  • variable speed drive ATV340 75-75 kW 380...480 V
Kit Composition
  • fan
  • mounting bracket
  • instruction sheet
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information Yes
Mercury Free Yes
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
Documents
