Home > Schneider Electric > Automation & Control > Motors, Drives & Control > VX5VP50BC001 – Wear part, fan for variable speed drive, Altivar Process 600 900, IP55, from 30 to 90kW, from 380 to 480V
VX5VP50BC001 – Wear part, fan for variable speed drive, Altivar Process 600 900, IP55, from 30 to 90kW, from 380 to 480V
VX5VP50BC001
Wear part, fan for variable speed drive, Altivar Process 600 900, IP55, from 30 to 90kW, from 380 to 480V

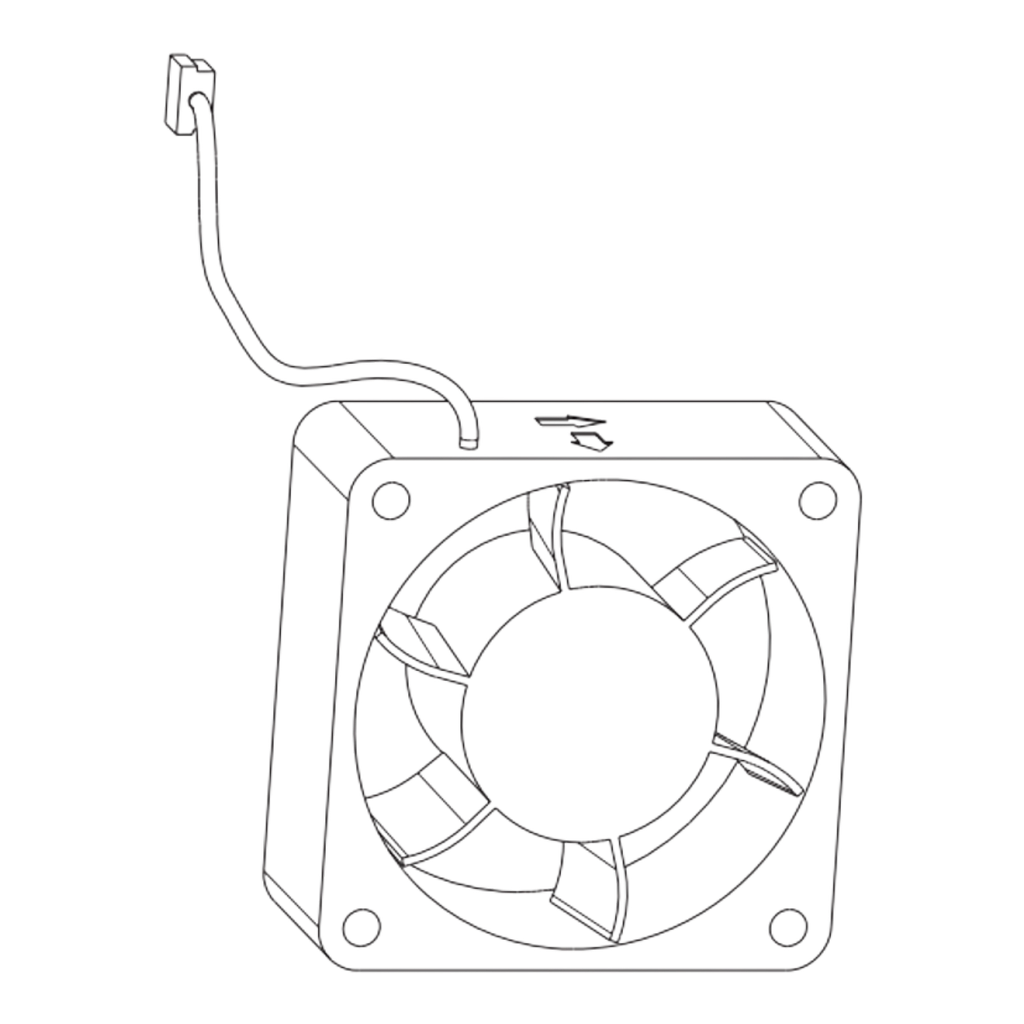

This product is a wear part for Drive Altivar Process 600 and Altivar Process 900. This Fan for variable speed drive is a cooling accessory. It works for variable speed drives from 30kw to 90kw and a rated voltage from 380V to 480V. This Fan increase the Drive life time. 1 Fan required for all drive ranges. This fan has a fixed type body which is made of plastic. Its dimensions are 17cm (width) x 23cm (Length) x 7.1cm (Height) and weighs 246g. This power fan is compatible with ATV650D30N4 to D90N4, ATV650D30N4E to D90N4E, ATV950D30N4 to D90N4, ATV950D30N4E to D90N4E. This kit includes 1 control fan for IP55 Drive, 1 mounting bracket, 1 instruction sheet. Variable Speed Drives for pumps, fans or compressors up to 2600 kW. Variable Speed Drive for conveyors, cranes or mills up to 2600 kW.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Accessory / Separate Part Category cooling accessory
Range Compatibility Altivar Process 600/900
Product Or Component Type fan
Accessory / Separate Part Type internal fan
Warranty 18 months
Product Compatibility
  • variable speed drive ATV650 wall mount 30-30 kW 380...480 V
  • variable speed drive ATV650 wall mount 37-37 kW 380...480 V
  • variable speed drive ATV650 wall mount 45-45 kW 380...480 V
  • variable speed drive ATV650 wall mount 55-55 kW 380...480 V
  • variable speed drive ATV650 wall mount 75-75 kW 380...480 V
  • variable speed drive ATV650 wall mount 90-90 kW 380...480 V
  • variable speed drive ATV950 wall mount 30-30 kW 380...480 V
  • variable speed drive ATV950 wall mount 37-37 kW 380...480 V
  • variable speed drive ATV950 wall mount 45-45 kW 380...480 V
  • variable speed drive ATV950 wall mount 55-55 kW 380...480 V
  • variable speed drive ATV950 wall mount 75-75 kW 380...480 V
  • variable speed drive ATV950 wall mount 90-90 kW 380...480 V
Kit Composition
  • fan
  • mounting bracket
  • instruction sheet
China Rohs Regulation Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information Yes
Mercury Free Yes
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
