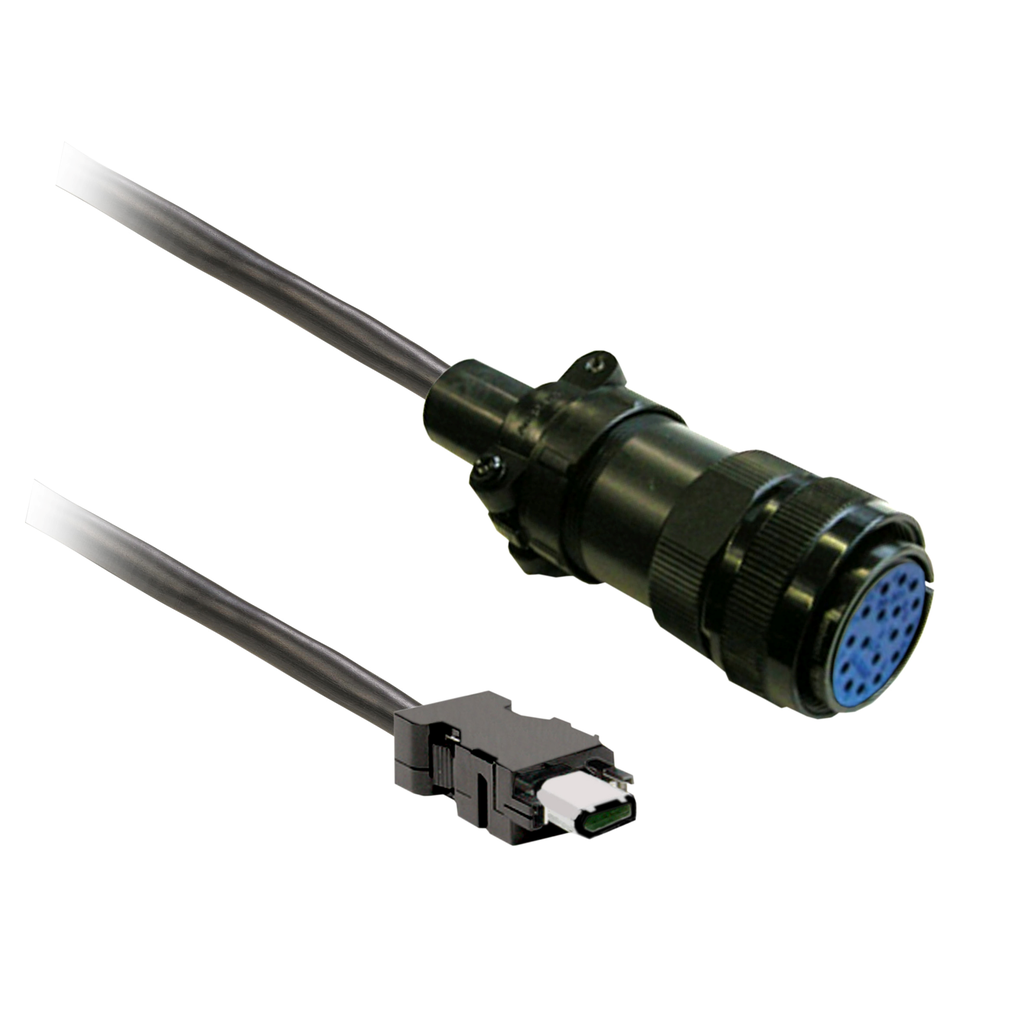

VW3M8D2AR50
encoder cable 5m shielded, MIL connector for BCH2.H/.M/.R, CN2 plug
Specifications
| Range Of Product | Lexium |
|---|---|
| Accessory / Separate Part Category | connection accessory |
| Cable Composition | 5 x (2 x 0.13 mm²) |
| Product Or Component Type | encoder cable |
| Accessory / Separate Part Type | encoder cable |
| Device Application | for BCH2 with SinCos single turn encoder |
| Accessory / Separate Part Destination | from servo motor to servo drive |
| Electrical Connection |
|
| Cable Length | 5 m |
| Range Compatibility | Lexium 28 |
| Net Weight | 1.5 kg |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
