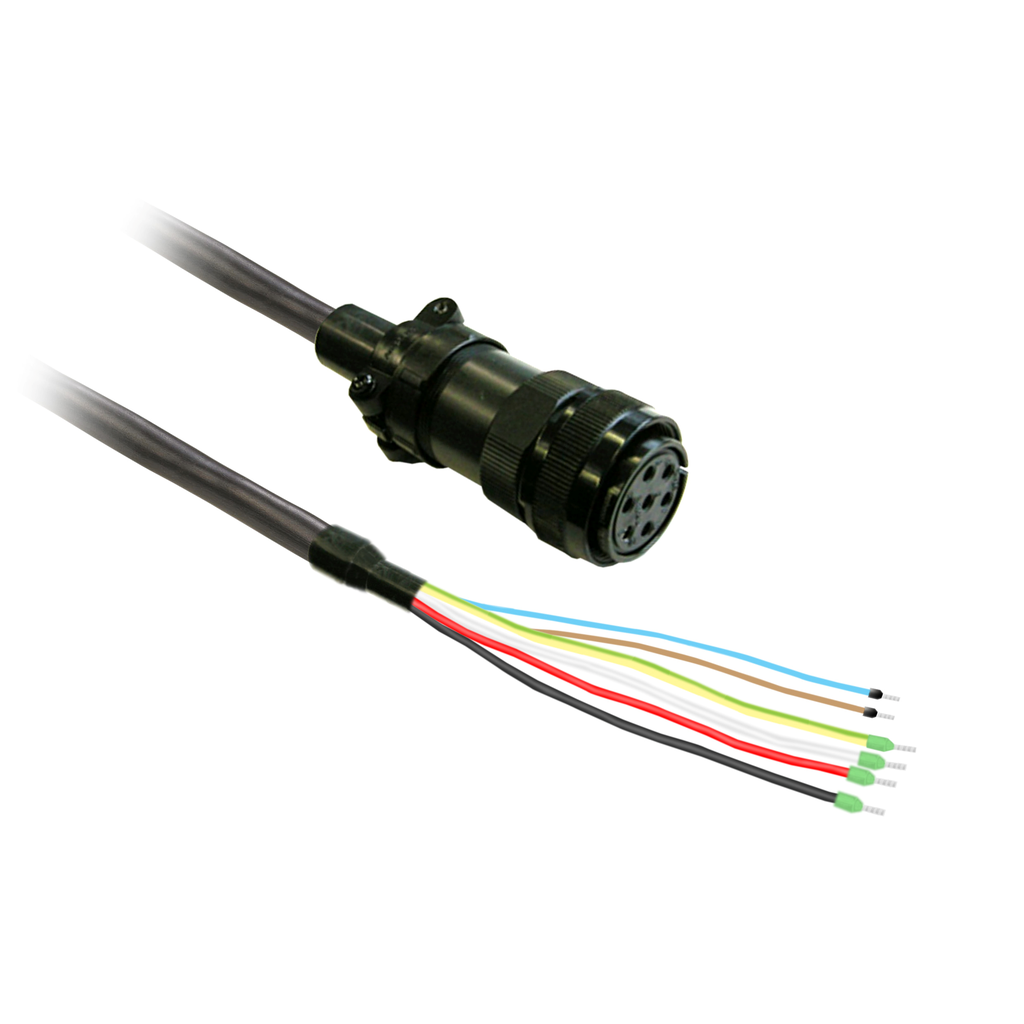

VW3M5D6FR50 - power cable 5m shielded 4x 6mm², BCH2 brake MIL connector

VW3M5D6FR50

Add to Quote Catalogue

Range Of Product	Lexium 28
Product Compatibility	servo motor BCH2 3000 W 180 mm) with brake) servo motor BCH2 3500 W 180 mm) with brake) servo motor BCH2 4500 W 180 mm) with brake)
Cable Length	5 m
Accessory / Separate Part Category	connection accessory
Range Compatibility	Lexium 28
Product Or Component Type	power cable
Accessory / Separate Part Type	preassembled power cordset
Accessory / Separate Part Destination	between servo motor and servo drive
Electrical Connection	free end servo drive side connector - MIL big servo motor side
Net Weight	5 kg
Awg Gauge	6 x AWG 10
China Rohs Regulation	Pro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information	Yes
Mercury Free	Yes
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
