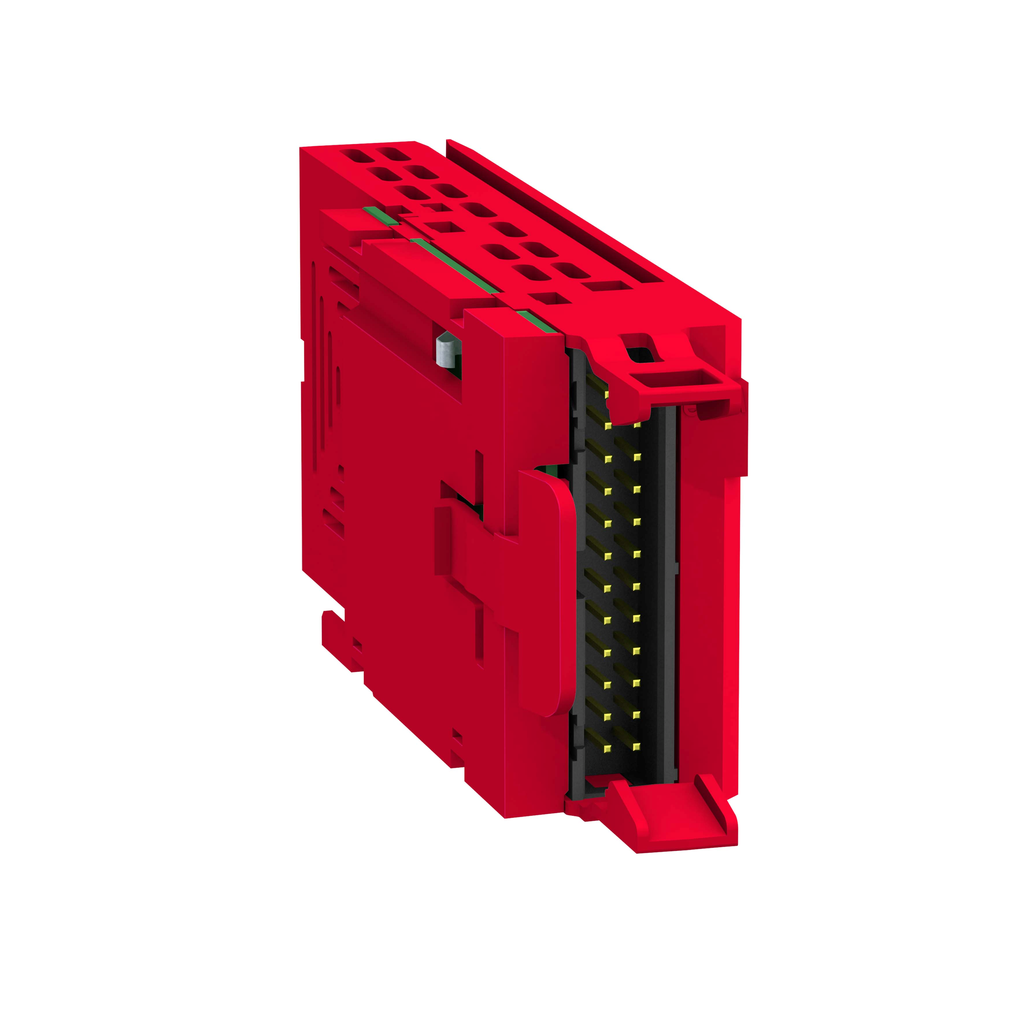

eSM safety card, Lexium 32, servo drive, 24V DC
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. This ESM safety card is for Lexium 32 servo drive. It is an ESM safety card with a rated supply voltage of 24V DC and 19V to 30V voltage limits. It provides reverse polarity protection on input and short-circuit protection on output. It offers safety functions like SOS (safe operating stop), SLS (safe limited speed), SS1 (safe stop 1), STO (safe torque off), SS2 (safe stop 2) with safety levels SIL 3, SILCL 3 and PL = e. It meets EN/IEC 61508, ISO 13849-1 and EN/IEC 62061 standards. This card is compatible with Lexium 32 servo drive. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| [Us] Rated Supply Voltage | 24 V DC 19-30 V |
|---|---|
| Accessory / Separate Part Category | communication option |
| Product Or Component Type | eSM safety card |
| Discrete Input Number | 11 |
| Range Compatibility | Lexium 32 |
| Product Compatibility | Lexium 32 |
| Accessory / Separate Part Type | eSM safety card |
| Accessory / Separate Part Destination | servo drive |
| Warranty | 18 months |
| Discrete Output Number | 7 |
| Voltage State 0 Guaranteed | <= 5 V |
| Short-Circuit Protection | yes on output |
| Safety Function |
|
| Reverse Polarity Protection | yes on input |
| Safety Level |
|
| Voltage State 1 Guaranteed | >= 15 V |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407005EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1407005EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Standards |
|
