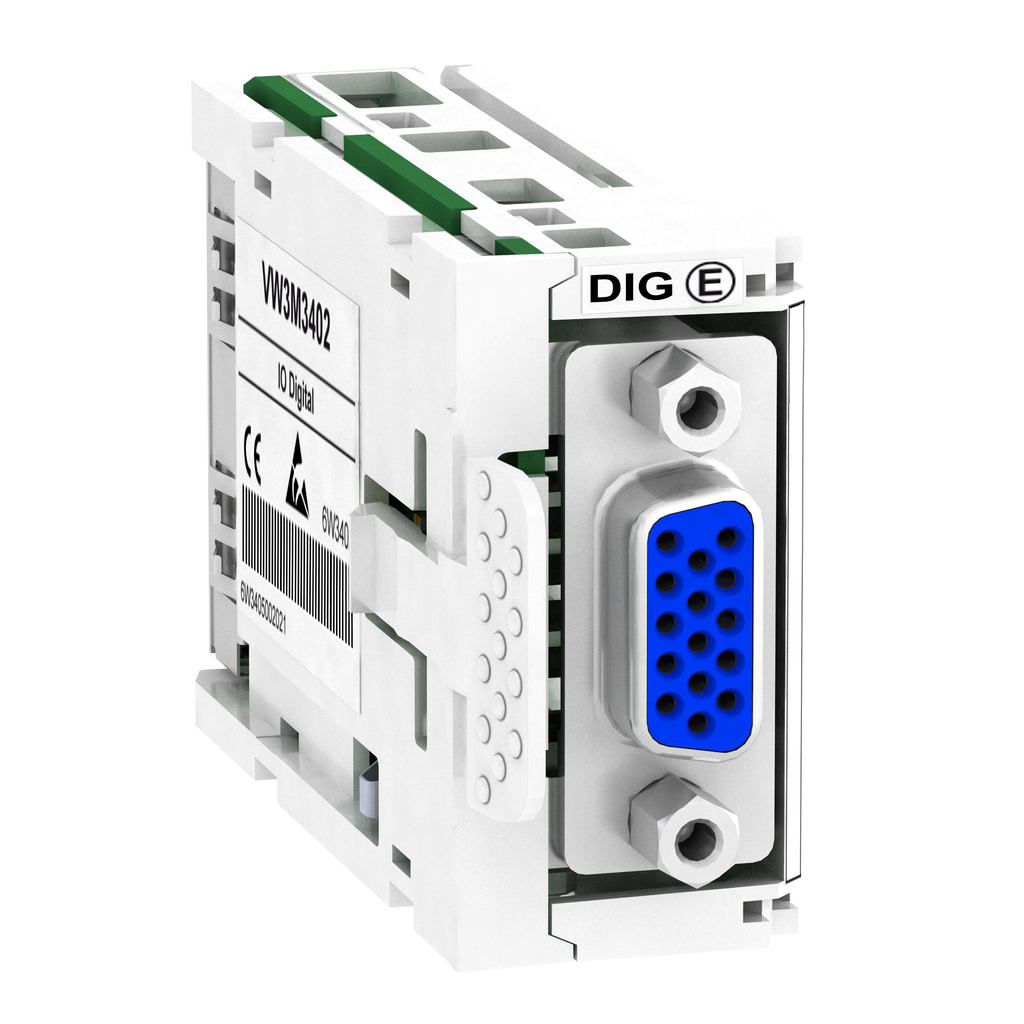

Encoder interface module, Lexium 32, card for digital input signals
This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The interface card provides digital output for machine encoder. It is an interface card with a rated supply voltage of 12V for SSI encoder, 5V for A/B/I encoder, 5V for BISS encoder, 5V for EnDat 2.2 encoder. It is furnished with 15-way D-Sub (DE-15) female high definition connector for electrical connection. This product is compatible with Lexium 32M servo drive. Lexium 32 is a servo drive range with three or four servo drive models and two servo motor families plus an intelligent selection of options. Servo drives and servo motors from 0.15kW to 7kW for maximum performance.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Lexium 32 |
|---|---|
| Encoder Type |
|
| Accessory / Separate Part Category | connection accessory |
| Product Or Component Type | encoder interface module |
| Accessory / Separate Part Type | card with digital output |
| Accessory / Separate Part Destination | machine encoder |
| Warranty | 18 months |
| Electrical Connection | 1 female connector high definition SUB-D 15 |
| [Us] Rated Supply Voltage |
|
| Product Compatibility | Lexium 32M |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1407005EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1407005EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
