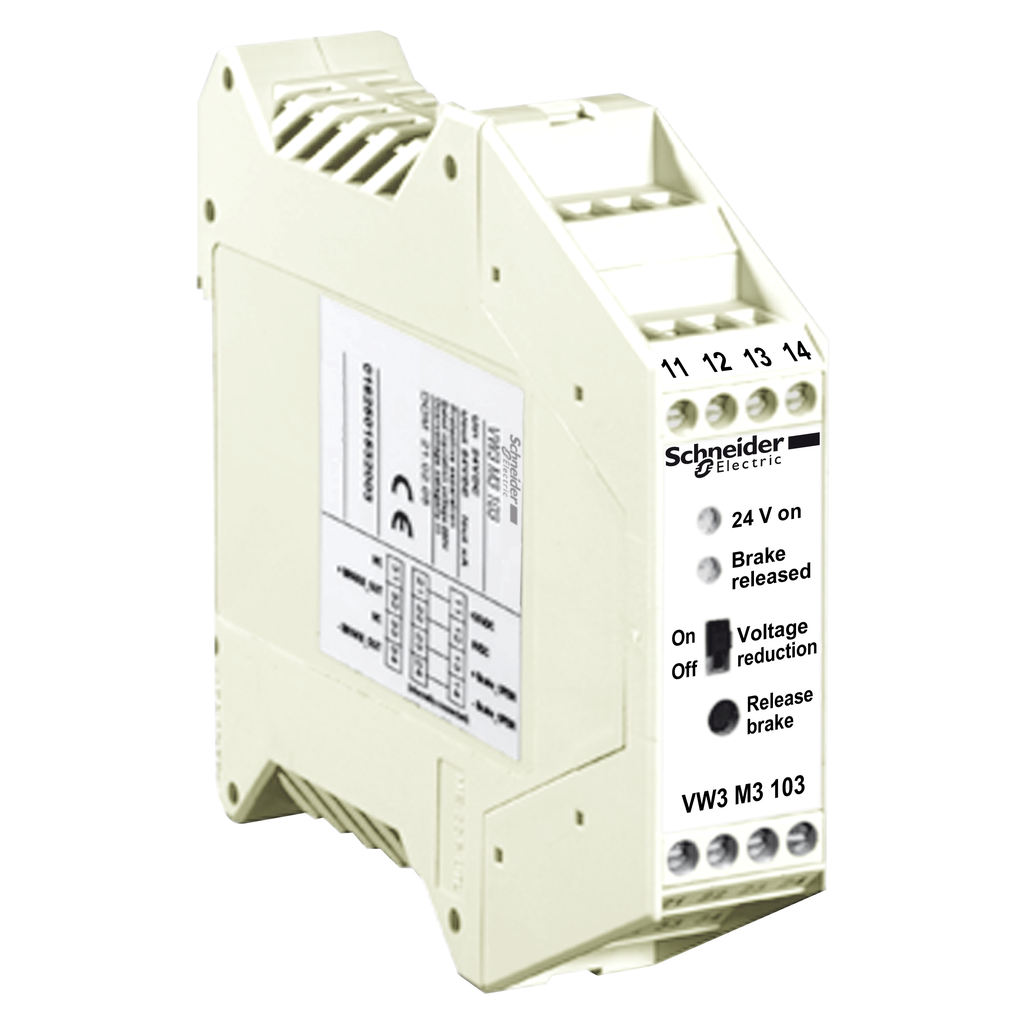

VW3M3103
holding brake controller - 24 V DC - 50 W - IP20
Specifications
| Supply Circuit Type | DC |
|---|---|
| Range Compatibility |
|
| Product Or Component Type | holding brake controller |
| Mounting Support | 55 mm symmetrical DIN rail |
| [Us] Rated Supply Voltage | 24 V |
| Warranty | 18 months |
| Braking Current | 1.6 A |
| Output Voltage |
|
| Supply Voltage Limits | 19.2-30 V |
| Input Current | 0.5 A + brake nominal current |
| Power Consumption In W | 50 W |
| Normal Time To Voltage Reduction | 1000 ms |
| Net Weight | 0.6 kg |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Ip Degree Of Protection | IP20 |
