VW3L40210
insert - 2 female M8 for 2 I/O signals + 1 male M8 for safe torque off safety

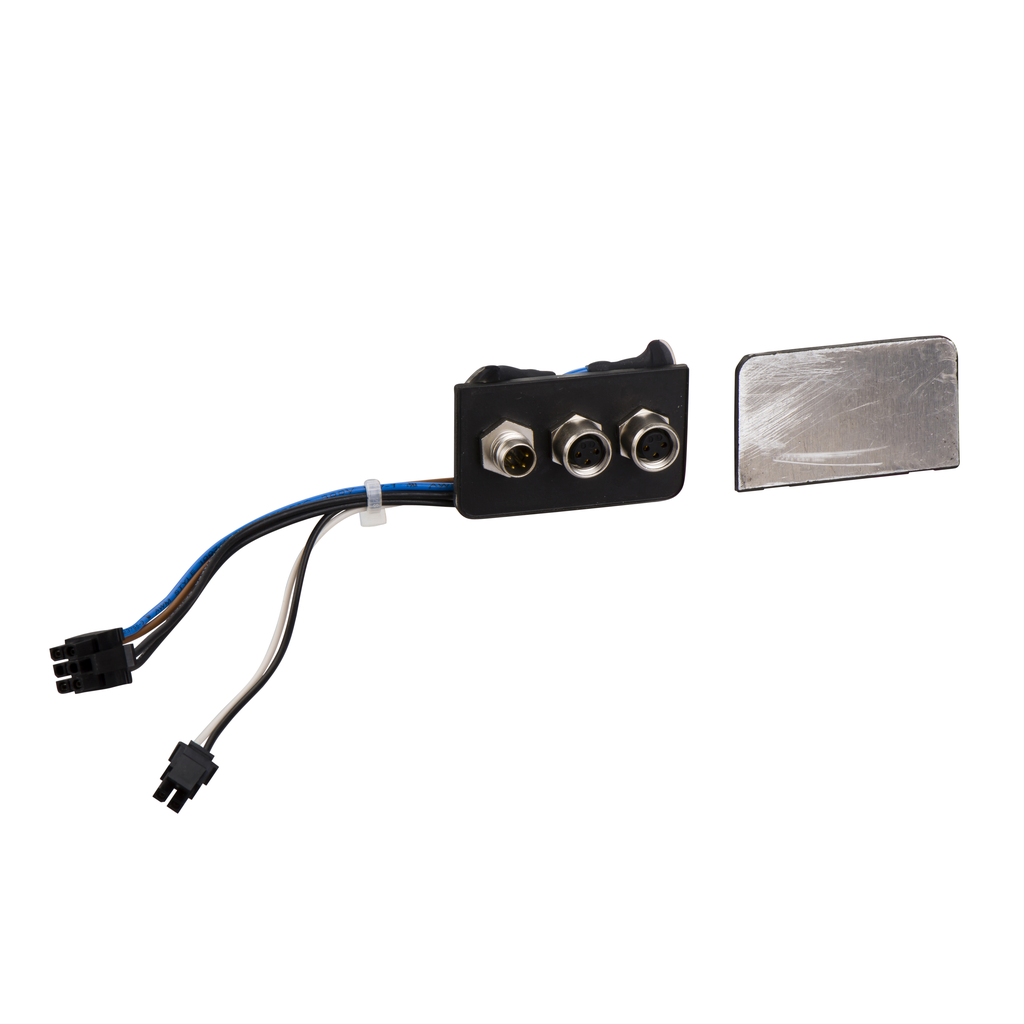

This product is part of the Lexium ILA, ILE, ILS range, an offer of motion integrated drives for motion control. The communication interface insert provides two I/O signals and a STO signal. It is furnished with 4-pin M8 male connector for safe torque off and two 3-pin M8 female connectors for 2 I/O signals. It weighs 0.036kg. It is compatible for use with Lexium integrated drives. The kit includes 1 insert with connectors and 1 insert for sealing (IP54).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Lexium integrated drive |
|---|---|
| Accessory / Separate Part Category | connection accessories |
| Product Or Component Type | insert for communication interface |
| Accessory / Separate Part Type | connection accessories |
| Accessory / Separate Part Destination | for drives |
| Warranty | 18 months |
| Electrical Connection |
|
| Net Weight | 0.036 kg |
| Kit Composition |
|
| Input/Output Type | 2 I/O signals + 1 STO signal |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
