VW3L10100N10
4 protective cable sleeves - Ø 3..9 mm - set of 10 - for integrated drives

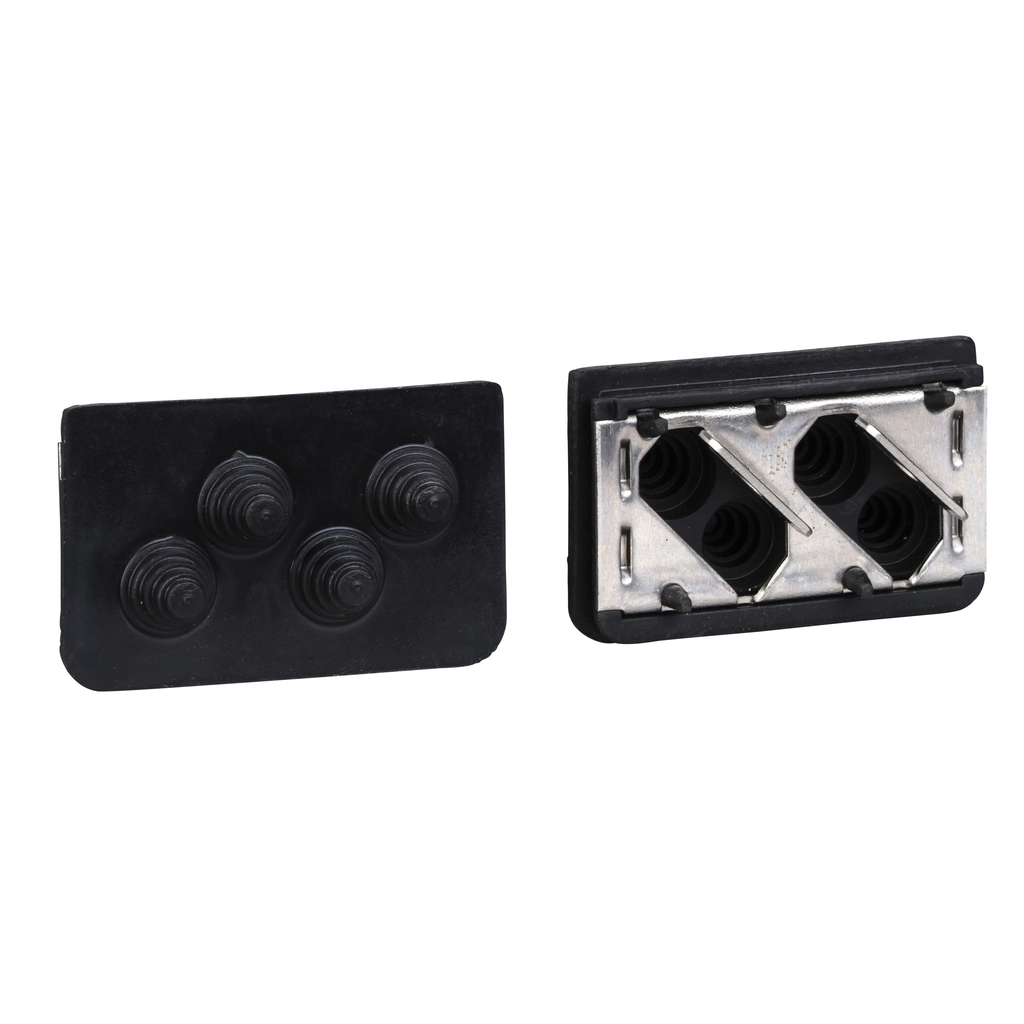

This IP54 plate is proposed as an option of Lexium ILA,ILE, ILS integrated servo drives. It consists in a plate with cable entries for for 4 cables diameter 3mm to 9mm. 2 plates are required per integrated drive. They provide the seal, the mechanical catch and connection of the shielding. It is sold in lots of 10.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Lexium integrated drive |
|---|---|
| Accessory / Separate Part Category | connection accessories |
| Quantity Per Set | set of 10 |
| Product Or Component Type | cable entry for signals and power supply cable |
| Accessory / Separate Part Type | connection accessories |
| Accessory / Separate Part Destination | for integrated drives |
| Warranty | 18 months |
| Cable Entry | 5 protective cable sleeves on each insert |
| Cable Outer Diameter | 3-9 mm |
| Net Weight | 0.213 kg |
| Kit Composition | 2 inserts with cable entries |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
