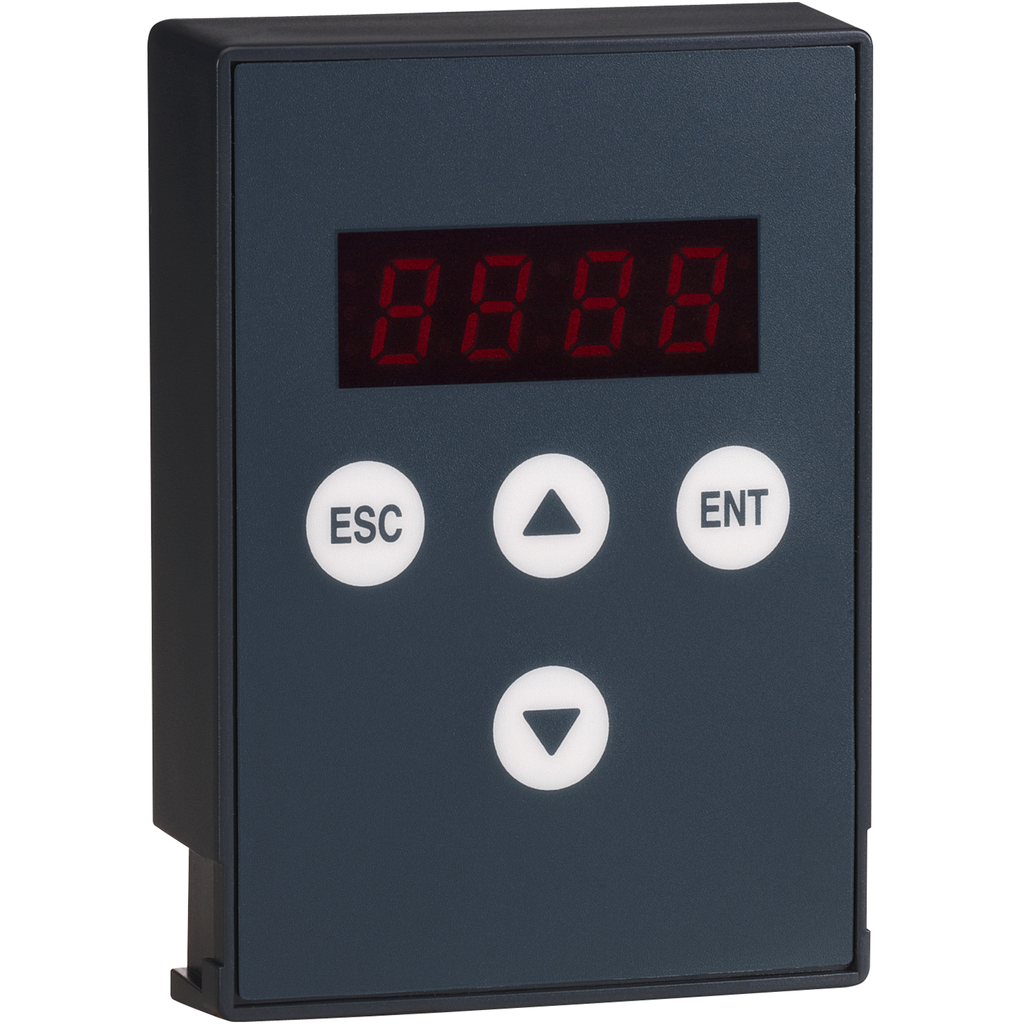

VW3G22102
remote terminal, Altistart 22, for soft starter for asynchronous motor, IP65
Specifications
| Range Of Product | Altistart 22 |
|---|---|
| Accessory / Separate Part Designation | remote terminal |
| Accessory / Separate Part Category | control accessories |
| Accessory Dimension | 50 x 15 x 70 mm |
| Product Compatibility | ATS22 |
| Accessory / Separate Part Type | remote terminal |
| Ip Degree Of Protection | IP65 |
| Accessory / Separate Part Destination | soft starter for asynchronous motor |
| Warranty | 18 months |
| Net Weight | 0.275 kg |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Documents
- Spec Sheet
- Catalog: Soft start/soft stop units Altistart 22 - DIA2ED2140606EN (pdf)
- Altistart 22 Soft Starters Catalog - ATS22eCatalog (pdf)
- Digest Catalog 26: AC Drives and Soft Starters (OCT 2021) - 0100CT1901_SEC-26_OCT2021 (pdf)
- Instruction Sheet ATS22 terminal IP65 - ATS22_IS_kit_deport_terminal_IP65_BBV51340_01 (pdf)
- Enclosed Altistart 22 Solid State Reduced Voltage Combination Motor Controller Instruction Bulletin - 30072-453-26 (pdf)
- Altistart 22 Soft Starters in Motor Control Centers - Installation Instructions - 80459-652-01 (pdf)
- Seismic Qualification of Enclosed Drives and Soft Starters Instruction Bulletin - 30072-454-87 (pdf)
