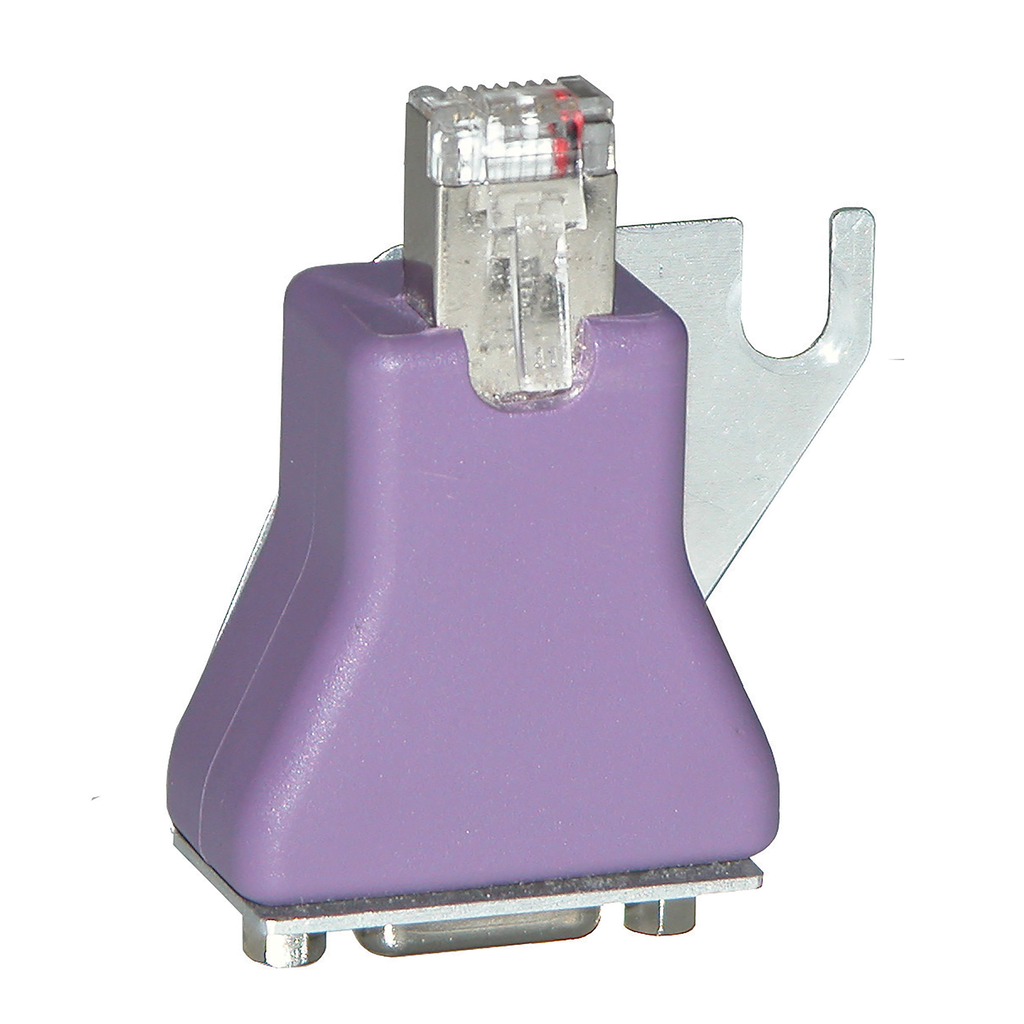

VW3CANA71
CANopen adaptor for converting SUB-D to RJ45 - 1 male SUB-D - 1 male RJ45
This adaptor enables your product integration in CANopen machine bus. It is mounted on the RJ45 socket in the drive control terminals for converting SUB-D to RJ45. The adaptor provides a 9-way male SUB-D connector conforming to the CANopen standard (CIA DRP 303-1). It has an IP20 protection index.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | CANopen |
|---|---|
| Accessory / Separate Part Designation | CANopen adaptor for converting SUB-D to RJ45 |
| Accessory / Separate Part Category | adaptation accessories |
| Range Compatibility |
|
| Accessory / Separate Part Type | adaptor |
| Ip Degree Of Protection | IP20 |
| Accessory / Separate Part Destination | variable speed drive |
| Electrical Connection |
|
| Warranty | 18 months |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
