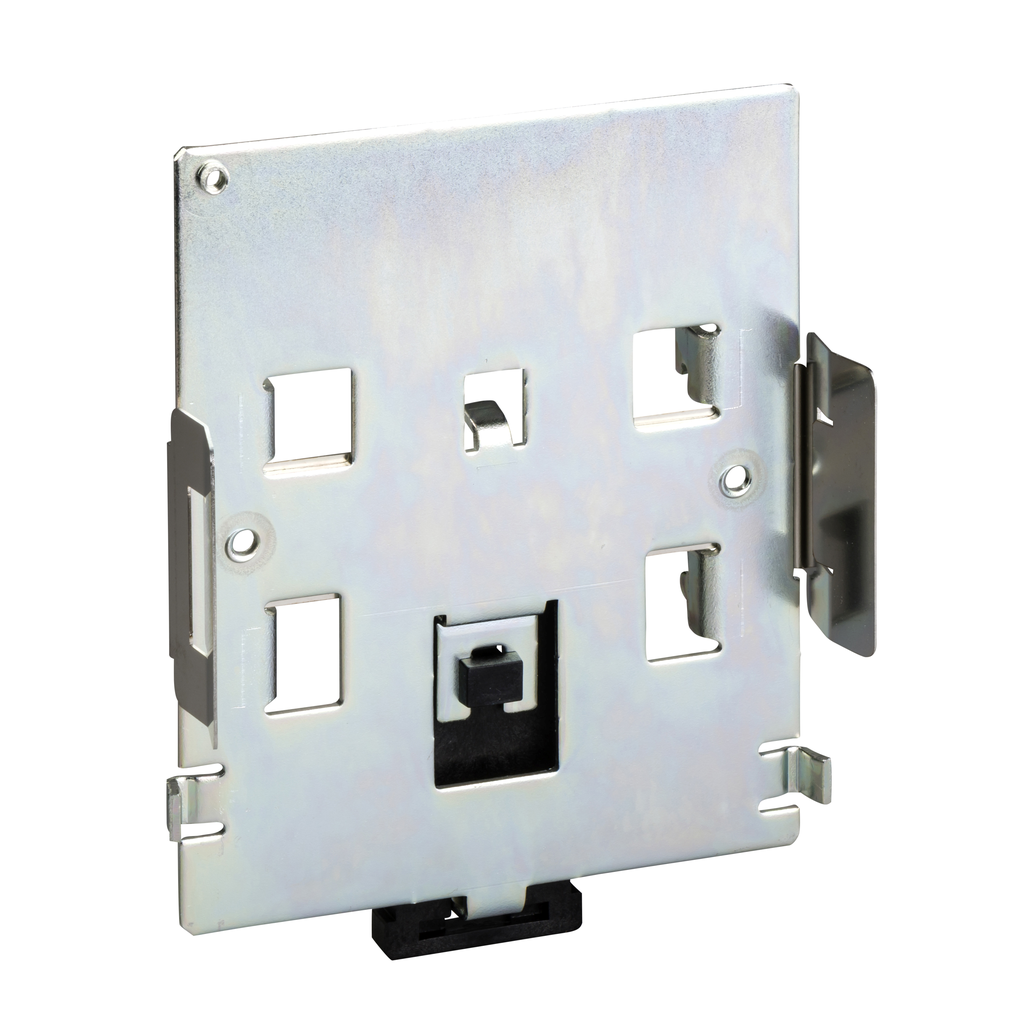

VW3A9805 – plate for mounting on symmetrical DIN rail, Altivar, for variable speed drive, size 2C and 2F
VW3A9805
plate for mounting on symmetrical DIN rail, Altivar, for variable speed drive, size 2C and 2F

This rail DIN kit is an option for variable speed drives of Altivar 12 range. This plate enables the mounting of your variable speed drive on 35mm symmetrical DIN rail. Its dimensions are 105mm wide, 144mm high, and 40mm deep. It weighs 0.385kg. This plate enables the mounting of your variable speed drive on 35mm symmetrical DIN rail. It is compatible with Altivar 12, Altivar 312 and Altivar Machine AT320. The ATV12 range meets basic machine requirements united with simplicity.

Brand: Schneider Electric

Add to Quote Catalogue
Specifications
Range Of Product Altivar
Product Compatibility
  • ATV12HU15M2
  • ATV312HU11M2
  • ATV312HU11M3
  • ATV312HU11N4
  • ATV312HU15M2
  • ATV312HU15M3
  • ATV312HU15N4
  • ATV312HU15S6
  • ATV312HU22M3
  • variable speed drive ATV320...C 1.1 kW, 200...240 V, single phase
  • variable speed drive ATV320...C 1.5 kW, 200...240 V, single phase
  • ATV12H075F1
  • variable speed drive ATV320...C 2.2 kW, 200...240 V, single phase
  • variable speed drive ATV320...C 0.37 kW, 380...500 V, three phase
  • variable speed drive ATV320...C 0.55 kW, 380...500 V, three phase
  • variable speed drive ATV320...C 0.75 kW, 380...500 V, three phase
  • variable speed drive ATV320...C 1.1 kW, 380...500 V, three phase
  • variable speed drive ATV320...C 1.5 kW, 380...500 V, three phase
  • variable speed drive ATV320...C 0.75 kW, 525...600 V, three phase
  • variable speed drive ATV320...C 1.5 kW, 525...600 V, three phase
  • ATV12HU15M3
  • ATV12HU22M2
  • ATV12HU22M3
  • ATV312H037N4
  • ATV312H055N4
  • ATV312H075N4
  • ATV312H075S6
Accessory / Separate Part Category mounting and fixing accessories
Range Compatibility
  • Altivar 312
  • Altivar 12
  • Altivar 312 Solar
  • Altivar Machine ATV320
Accessory / Separate Part Type mounting plate
Accessory / Separate Part Destination variable speed drive
Warranty 18 months
Mounting Support 35 mm symmetrical DIN rail
Net Weight 0.385 kg
China Rohs Regulation X
Rohs Exemption Information Yes
Mercury Free Yes
Eu Rohs Directive Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation Free of Substances of Very High Concern above the threshold
California Proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc Yes
