EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 1

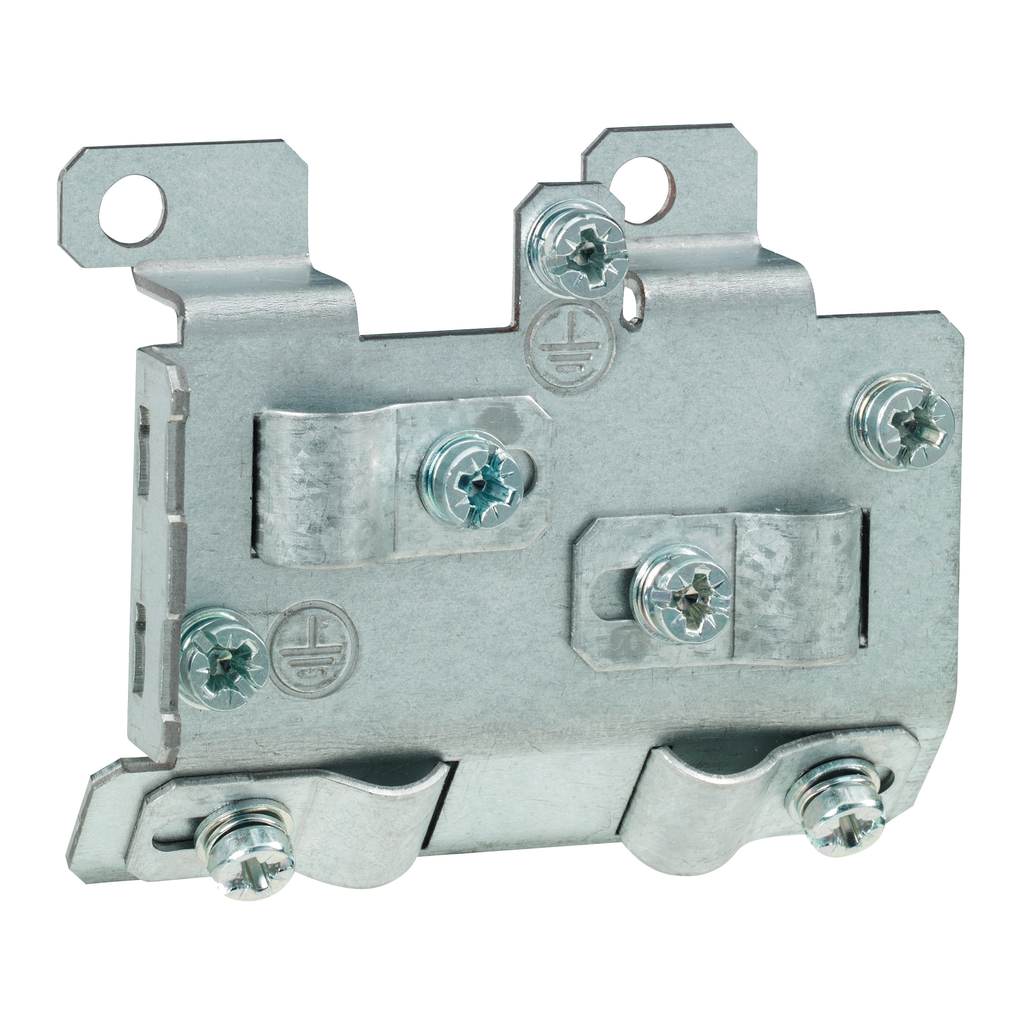

This EMC conformity kit is part of the Altivar Machine ATV12 and ATV320 ranges, an offer of variable speed drives for commercial equipment and simple machines. The metal plate makes the speed drive meet electromagnetic compatibility (EMC) requirements and must be ordered separately. This plate is size 1 (72x46.5mm). It helps organizing cable layout. It weighs 0.17kg. This kit is an accessory for power cables and motor cables. This product is certified by EMC, CE, and UL. This kit is compabible with ATV12H018F1, ATV12H037F1, ATV12P037F1, ATV12H018M2, ATV12*0**M2, and ATV12*0*M3 drives. The kit includes one EMC metal plate, clamps and fixing accessories. The metal plate is to be installed under speed drives. The ATV12 range meets basic machine requirements united with simplicity.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product |
|
|---|---|
| Accessory / Separate Part Category | mounting and fixing accessory |
| Product Compatibility |
|
| Accessory / Separate Part Type | EMC conformity kits |
| Accessory / Separate Part Destination | variable speed drive |
| Warranty | 18 months |
| Net Weight | 0.17 kg |
| Kit Composition |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
