VW3A9213 - kit for UL type 1 conformity, Altivar, for variable speed drive without braking unit

VW3A9213

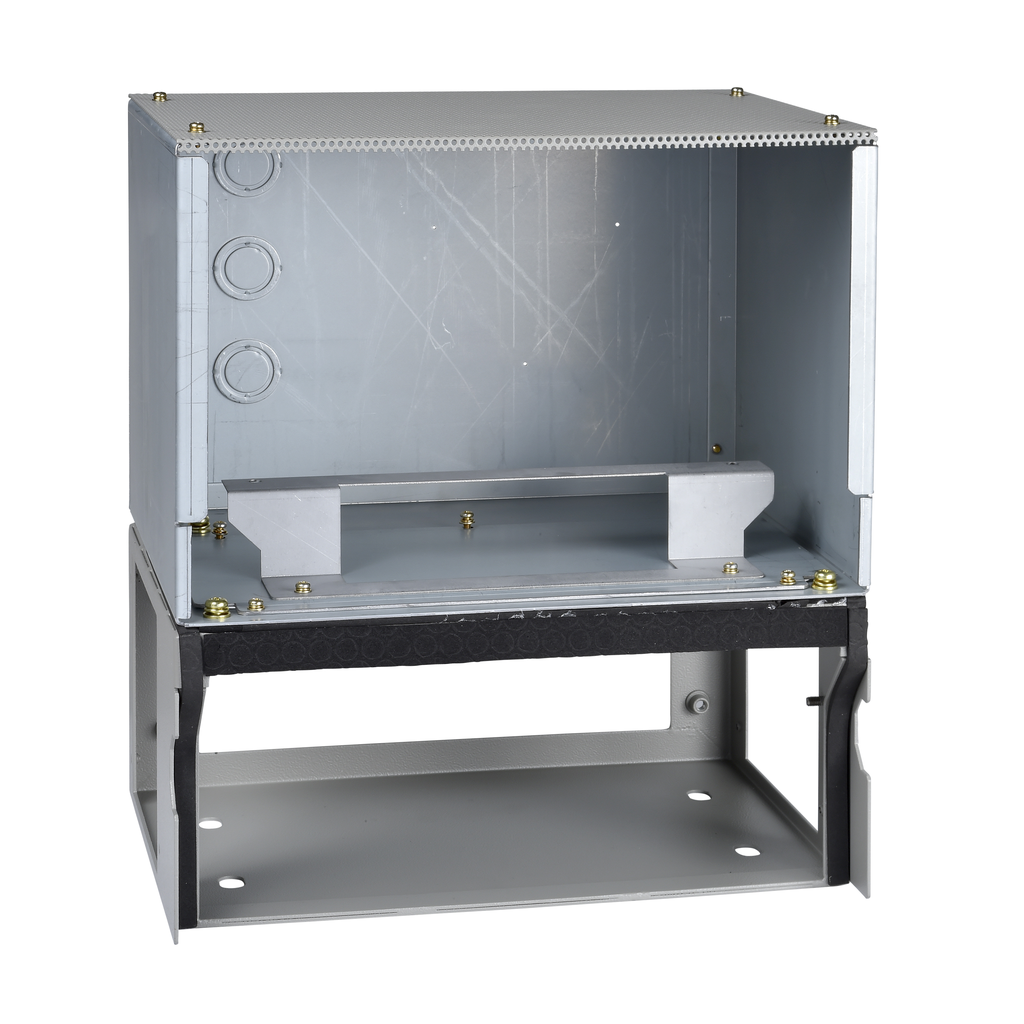

kit for UL type 1 conformity, Altivar, for variable speed drive without braking unit

This conformity kit is part of the Altivar range. It provides a UL type 1 degree of protection for drives without braking unit. It weighs 19.5kg. This product meets UL type 1 standards. The kit includes EMC plate, IP54 casing, fixing accessories, UL type 1 cover, manual and pre-drilled plate. The Altivar range is developed to the highest quality level to meet your needs in various applications, susch as industrila processes, machine or buildings.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Product Compatibility	ATV61HC25N4 ATV61HC25N4D ATV61HC25Y ATV61HC31N4 ATV61HC31N4D ATV61HC31Y ATV61HC40Y ATV71HC20N4 ATV71HC20N4D ATV71HC20Y ATV71HC25N4 ATV71HC25N4D ATV71HC25Y ATV71HC28N4 ATV71HC28N4D ATV71HC31Y variable speed drive ATV630 wall mount 250 kW, normal duty 380...480 V variable speed drive ATV630 wall mount 315 kW, normal duty 380...480 V variable speed drive ATV630 wall mount 220 kW, heavy duty 380...480 V variable speed drive ATV630 wall mount 250 kW, heavy duty 380...480 V variable speed drive ATV930 wall mount 250 kW, normal duty 380...480 V variable speed drive ATV930 wall mount 315 kW, normal duty 380...480 V variable speed drive ATV930 wall mount 250 kW, heavy duty 380...480 V variable speed drive ATV930 wall mount 200 kW, heavy duty 380...480 V
Accessory / Separate Part Category	mounting and fixing accessories
Range Compatibility	Altivar Process ATV900 Altivar 71 Altivar Process ATV600 Altivar 61
Accessory / Separate Part Type	conformity kit
Degree Of Protection	UL type 1
Accessory / Separate Part Destination	variable speed drive without braking unit
Warranty	18 months
Net Weight	19.5 kg
Kit Composition	1 EMC plate 1 IP54 casing fixing accessories 1 UL type 1 cover 1 manual 1 pre-drilled plate for connecting the tubes
China Rohs Regulation	X
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Standards	UL Type 1
