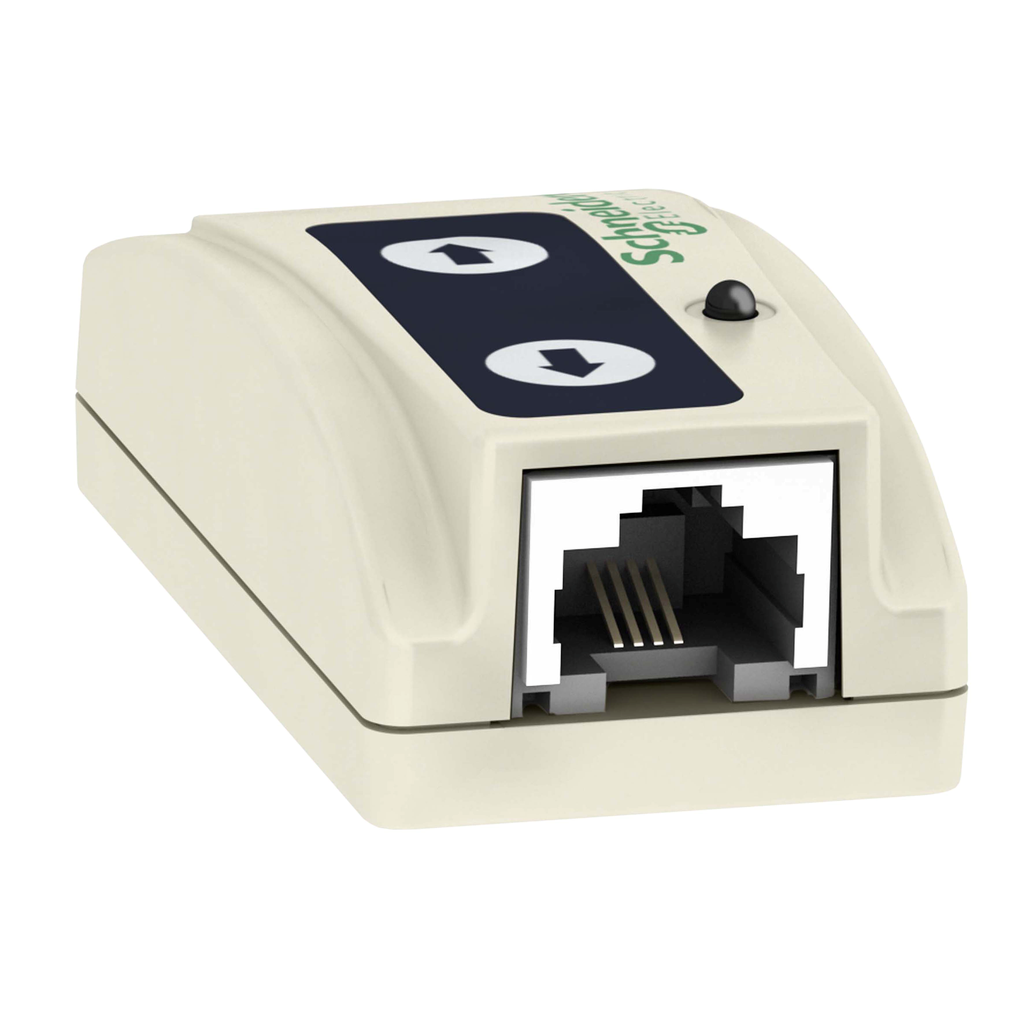

VW3A8120
simple loader tool, Altivar, Easy Altivar, for variable speed drive
This simple loader tool allows duplication of settings and configurations between drives. It is compatible with Altivar Lift, Altivar 61, Altivar 71, Altivar 61Q, Altivar 71Q, Altivar Machine ATV320. It is also compatible with Altivar 12, Altivar 32, Altivar 31C, Altivar 312, Altivar 312 Solar, Altivar Easy 310. It is supplied with a 2 x RJ45 cordset.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Altivar |
|---|---|
| Accessory / Separate Part Category | configuration accessory |
| Range Compatibility |
|
| Product Or Component Type | simple loader tool |
| Accessory / Separate Part Type | simple loader tool |
| Kit Composition |
|
| Accessory / Separate Part Destination | variable speed drive |
| Warranty | 18 months |
| Product Specific Application | copy configuration from one drive to another one |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
