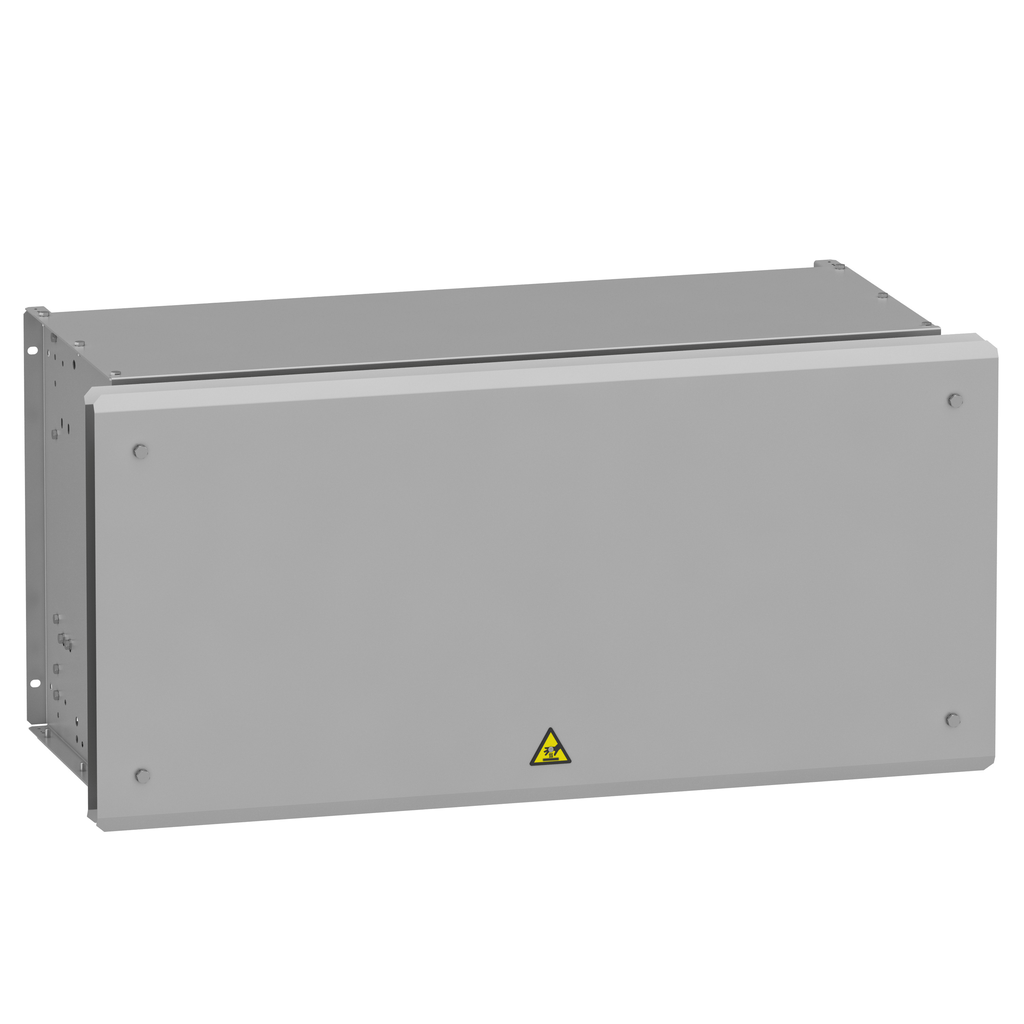

VW3A7747 - braking resistor, Altivar, 2.5Ohms, 11kW, IP23

VW3A7747

Add to Quote Catalogue

Ohmic Value	2.5 Ohm
[Ue] Rated Operational Voltage	24 V DC 250 V AC
Range Compatibility	Altivar Process ATV900
Product Or Component Type	braking resistor
Height	485 mm
Product Compatibility	variable speed drive ATV930 wall mount 110 kW 380...480 V medium cycle variable speed drive ATV930 wall mount 132 kW 380...480 V medium cycle variable speed drive ATV930 wall mount 160 kW 380...480 V medium cycle
Protection Type	thermal protection via drive or temperature control switch 120 °C
Duty Cycle	medium cycle (normal duty) <4 s braking with 135 % braking torque for a 40 s cycle medium cycle (heavy duty) <4 s braking with 165 % braking torque for a 40 s cycle
Width	540 mm
Depth	1060 mm
Average Power Available	11 kW 50 °C
Net Weight	48.5 kg
Electrical Connection	terminal <= 2.5 mm² / AWG 12 temperature control switch M12 bar wire drive
China Rohs Regulation	X
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
Ambient Air Temperature For Operation	0-50 °C
Ambient Air Temperature For Storage	-25-70 °C
Ip Degree Of Protection	IP23
