VW3A4555 - line/motor choke - 0.5 mH - 60 A - 3 phases - 94 W - for variable speed drive

VW3A4555

line/motor choke - 0.5 mH - 60 A - 3 phases - 94 W - for variable speed drive

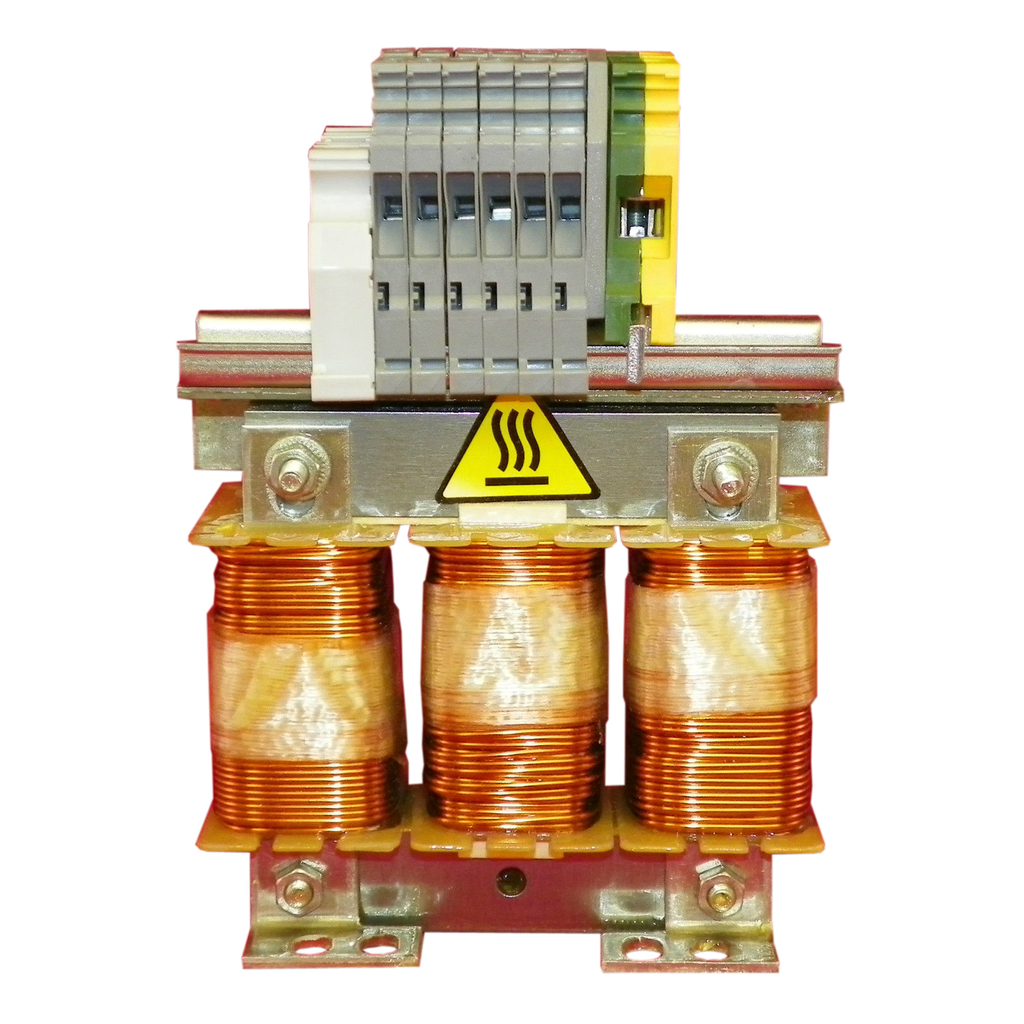

This line choke is an option for variable speed drives of Altivar range. Its rated current is equal to 60A. It provides improved protection against overvoltages on the line supply and contributes to reduce harmonic distortion of the current produced by the drive. Its protection index is IP00. It has an inductance value of 0.5mH. It weighs 11kg and its dimensions are, 180mm wide, 210mm high, 165mm deep. Its use is particularly recommended in case of close connection of several drives in parallel, line supply with significant disturbance from other equipment (interference, overvoltages), line supply with voltage imbalance between phases.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Thermal Losses	94 W
Range Of Product	Altivar
Product Or Component Type	line/motor choke
Phase	three phase
Value Of Inductance	0.5 mH
Product Compatibility	LXM32MD85N4 - line choke - 1 per drive LXM32MC10N4 - line choke - 1 per drive variable speed drive ATV340 15 kW 380...480 V - line choke - 1 per drive ATV61CD15N4 - motor choke - 1 per drive ATV61HD11M3X - line choke - 1 per drive ATV61HD15N4 - motor choke - 1 per drive ATV61HD18N4 - line choke - 1 per drive ATV61HD22N4 - line choke - 1 per drive ATV61HD30Y - line choke - 1 per drive ATV61HD37Y - line choke - 1 per drive ATV61HD45Y - line choke - 1 per drive ATV61HU75M3 - line choke - 1 per drive ATV61KD15N4 - motor choke - 1 per drive ATV61WD18N4 - line choke - 1 per drive ATV61WD18N4C - line choke - 1 per drive ATV61WD22N4 - line choke - 1 per drive ATV61WD22N4C - line choke - 1 per drive ATV71HD11M3X - line choke - 1 per drive ATV71HD18N4 - line choke - 1 per drive ATV71HD22N4 - line choke - 1 per drive ATV71HD30Y - line choke - 1 per drive ATV71HD37Y - line choke - 1 per drive ATV71HD45Y - line choke - 1 per drive ATV71HU75M3 - line choke - 1 per drive ATV71WD18N4 - line choke - 1 per drive ATV71WD22N4 - line choke - 1 per drive ATV312HD11M3 - line choke - 1 per drive ATV312HD15M3 - line choke - 1 per drive ATV32HD15N4 - motor choke - 1 per drive variable speed drive ATV340 18 kW 380...480 V - line choke - 1 per drive variable speed drive ATV340 22 kW 380...480 V - line choke - 1 per drive variable speed drive ATV320 15 kW 380...500 V - three phase - motor choke - 1 per drive variable speed drive ATV320 11 kW 200...240 V - three phase - line choke - 1 per drive variable speed drive ATV320 15 kW 200...240 V - three phase - line choke - 1 per drive variable speed drive ATV630 30 kW 500...690 V - three phase - line choke - 1 per drive variable speed drive ATV630 37 kW 500...690 V - three phase - line choke - 1 per drive variable speed drive ATV630 45 kW 500...690 V - three phase - line choke - 1 per drive variable speed drive ATV930 30 kW 500...690 V - three phase - line choke - 1 per drive variable speed drive ATV930 37 kW 500...690 V - three phase - line choke - 1 per drive variable speed drive ATV930 45 kW 500...690 V - three phase - line choke - 1 per drive variable speed drive ATV630 600 V - three phase - line choke - 40 hp - 1 per drive variable speed drive ATV630 600 V - three phase - line choke - 50 hp - 1 per drive variable speed drive ATV630 600 V - three phase - line choke - 60 hp - 1 per drive variable speed drive ATV930 600 V - three phase - line choke - 40 hp - 1 per drive variable speed drive ATV930 600 V - three phase - line choke - 50 hp - 1 per drive variable speed drive ATV930 600 V - three phase - line choke - 60 hp - 1 per drive
Electrical Connection	terminal 35 mm² / AWG 0, 2.5-3 N.m
Line Rated Current	60 A
Range Compatibility	Altivar 32 Altivar Machine ATV340 Lexium 62 Altivar 71 Altivar Machine ATV320 Altivar 312 Altivar Process ATV900 Altivar Process ATV600 Altivar 61 Lexium 32 Easy Altivar 310
Device Application	reduction of overvoltages at motor terminals reduction of current harmonics
Warranty	18 months
Height	210 mm
Net Weight	11 kg
Leakage Distance	11.5 mm IEC 60664
Electrical Insulation Class	class F
Minimum Clearance Distance	5.5 mm IEC 60664
Max Current	1.65 x nominal current 60 s)
Width	180 mm
Depth	165 mm
Maximum Voltage Drop At Rated Load	5 %
Supply Frequency	50...60 Hz
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Standards	EN 50178 IEC 60076 (with HD398) VDE 0160 level 1
Ambient Air Temperature For Operation	45-55 °C with current derating of 2 % per °C) 0-45 °C without current derating)
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Environmental Characteristic	3B1 IEC 721-3-3 3C2 IEC 721-3-3 3S1 IEC 721-3-3
Vibration Resistance	1 gn 13-200 Hz)IEC 60068-2-6 1.5 mm peak to peak 3-13 Hz)IEC 60068-2-6
Relative Humidity	0-95 %
Pollution Degree	2 EN 50178
Ambient Air Temperature For Storage	-25-70 °C
Ip Degree Of Protection	choke IP00 terminals IP10
Operating Altitude	<= 3280.84 ft (1000 m) without current derating <= 3280.84 ft (1000 m) without derating
