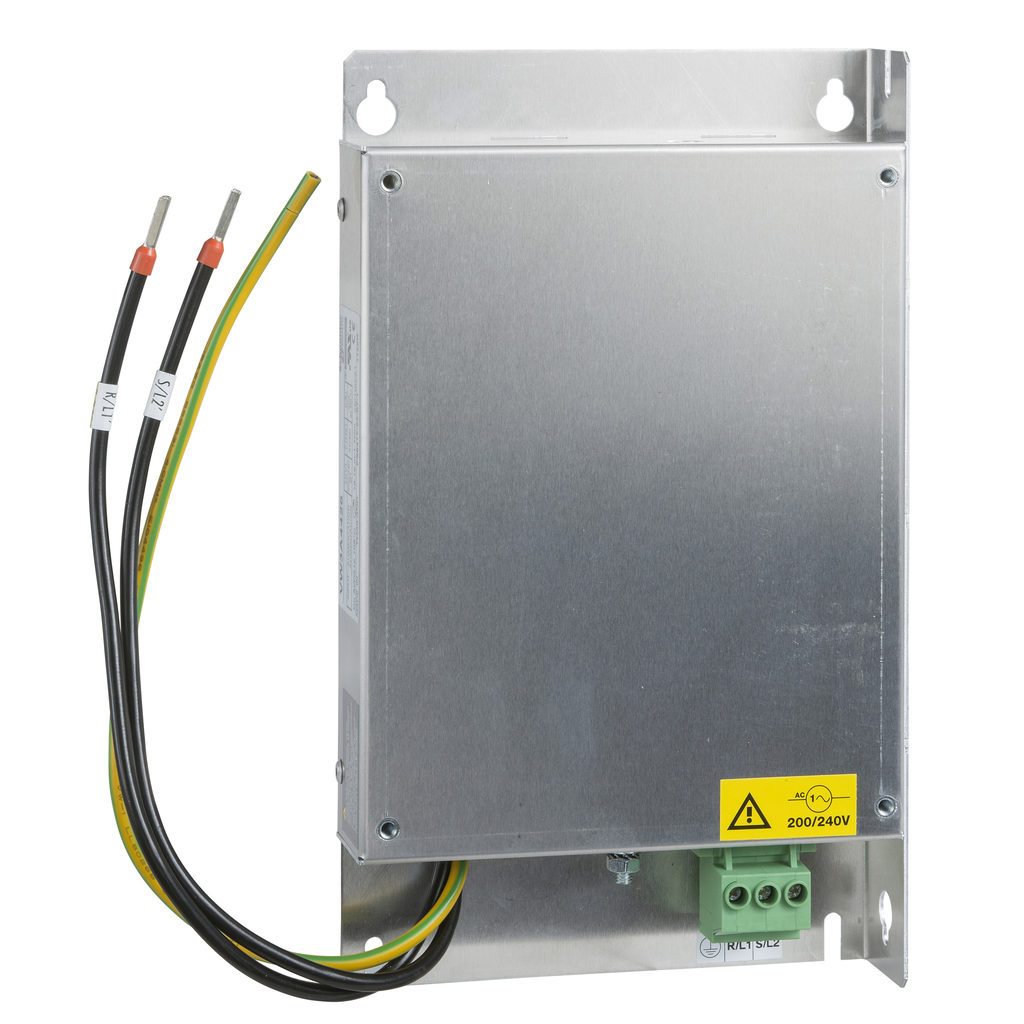

VW3A4426 - EMC input filter, Altivar, Lexium, 23.9A, 1 phase, 200..240V

VW3A4426

EMC input filter, Altivar, Lexium, 23.9A, 1 phase, 200..240V

This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and Lexium 28. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Lexium Altivar
Product Compatibility	LXM28A ATV32, 200...240 V, 2.2 kW variable speed drive ATV320...B 2.2 kW, 200...240 V, single phase
Product Specific Application	radio interference input filter
Range Compatibility	Altivar 32 Altivar Machine ATV320 Lexium 28
Product Or Component Type	EMC input filter
Phase	single phase
Mounting Location	at variable speed drive side
Warranty	18 months
Maximum Cable Distance Between Devices	20 m IEC 61800-3 category C1 50 m IEC 61800-3 category C2
Tolerance	15...10 %
Emc Filter Compatibility	type 026
Line Rated Current	23.9 A
Thermal Losses	7.5 W
Net Weight	1.13 kg
Network Rated Voltage	200-240 V
China Rohs Regulation	X
Rohs Exemption Information	Yes
Mercury Free	Yes
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation	Free of Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Reach Free Of Svhc	Yes
