VW3A4406
additionnal EMC input filter - 3-phase supply - 90 A

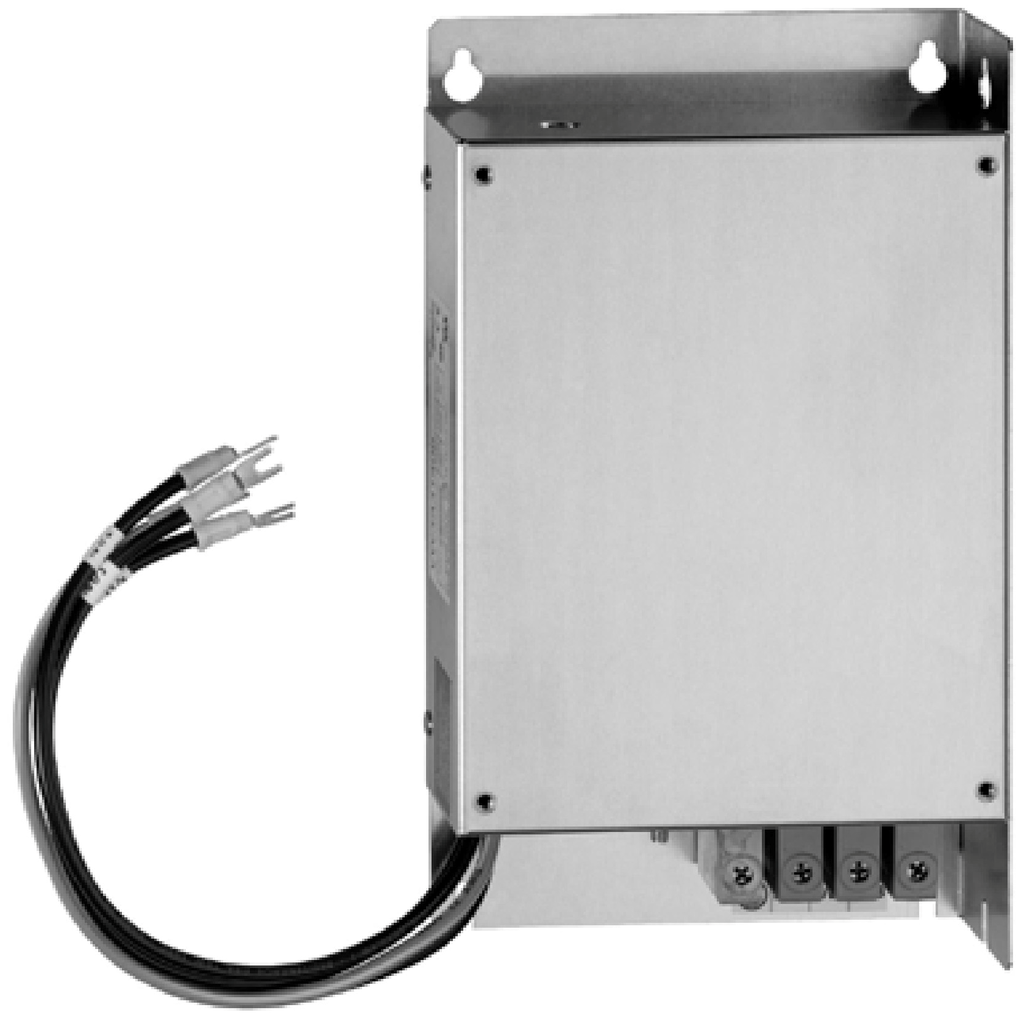

This EMC filter is an option for variable speed drives of Altivar range and servo drives of Lexium range. Its rated current is equal to 90A. It is used to reduce conducted emissions on the line supply below the limits of standards EN 55011 group 1, class A or B, and IEC/EN 61800-3 category C1, C2. Its protection index is IP20. It weighs 15kg. This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Altivar |
|---|---|
| Product Compatibility |
|
| Product Specific Application | radio interference input filter |
| Line Rated Current | 90 A |
| Range Compatibility |
|
| Product Or Component Type | EMC input filter |
| Thermal Losses |
|
| Phase | three phase |
| Warranty | 18 months |
| Tolerance | 10 % |
| Tightening Torque | 6 N.m |
| Electrical Connection | terminal 50 mm² AWG 0 |
| Net Weight | 15 kg |
| Earth Leakage Current |
|
| Network Rated Voltage |
|
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Ambient Air Temperature For Storage | -40-65 °C |
| Relative Humidity | 0-93 % IEC 68-2-3 |
| Standards |
|
| Ip Degree Of Protection |
|
| Operating Altitude |
|
| Ambient Air Temperature For Operation | -10-50 °C |
| Shock Resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
| Vibration Resistance |
|
