VW3A3609

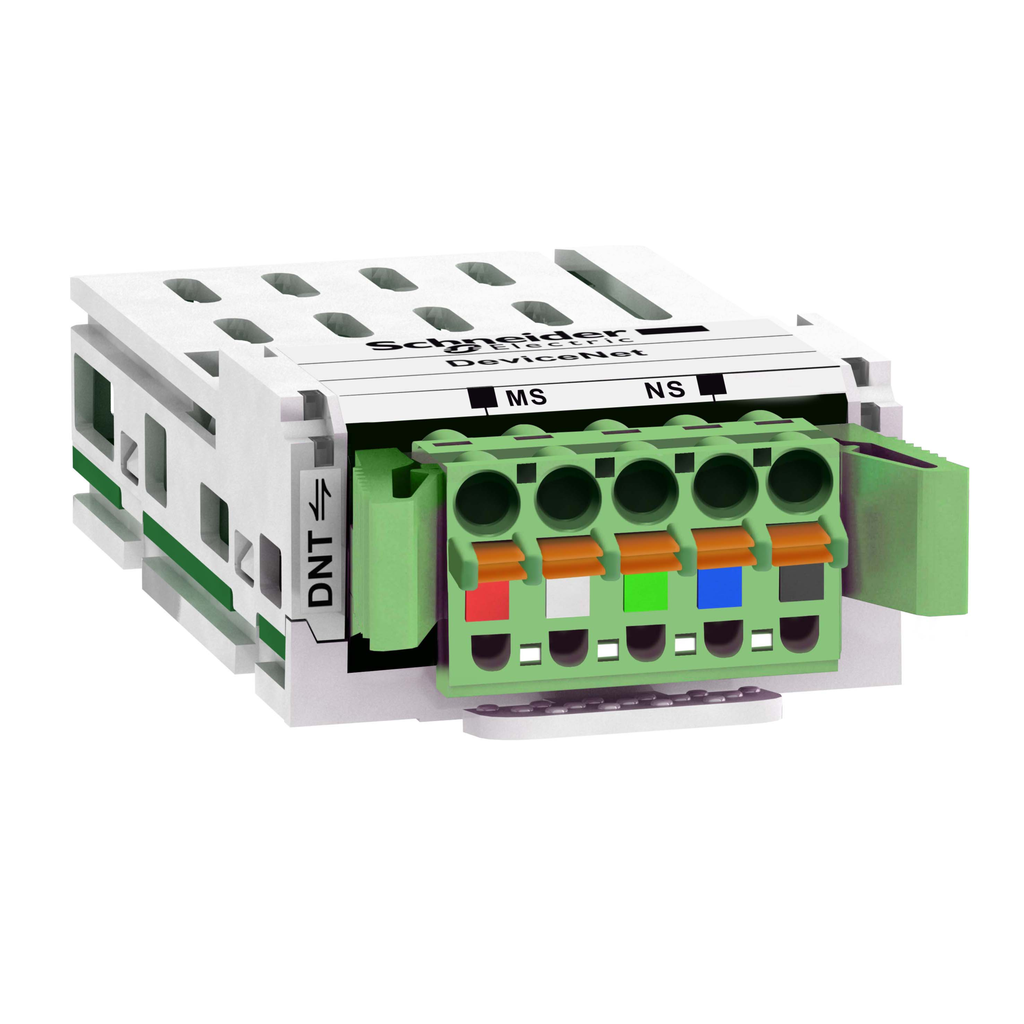

communication module DeviceNet, Altivar, 500kbps, 1 removable 5 way screw connector
This Schneider Electric Altivar DeviceNet communication module has 1 x 5-way screw connector. This communication module enables integration of your drive in your DeviceNet process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar 32, Altivar Process ATV600 (ATV630, ATV650)Altivar Process ATV900 (ATV930, ATV950), Altivar Machine ATV340 and Altivar Machine ATV320. Removable module allows last minute decisions on drive communication protocol, facilitates installation project management. It weighs 300g.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Altivar |
|---|---|
| Product Or Component Type | communication module |
| Warranty | 18 months |
| Addressing | 1...63 configurable by graphic terminal/SoMove software |
| Maximum Cable Distance Between Devices |
|
| Bus Profile |
|
| Alarm Function |
|
| Electrical Connection | 1 connector 1 removable 5-way screw connector |
| Net Weight | 0.3 kg |
| Communication Service |
|
| Communication Port Protocol | DeviceNet |
| Display Type |
|
| Range Compatibility |
|
| Transmission Rate | 125 kbps, 250 kbps and 500 kbps configurable |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
