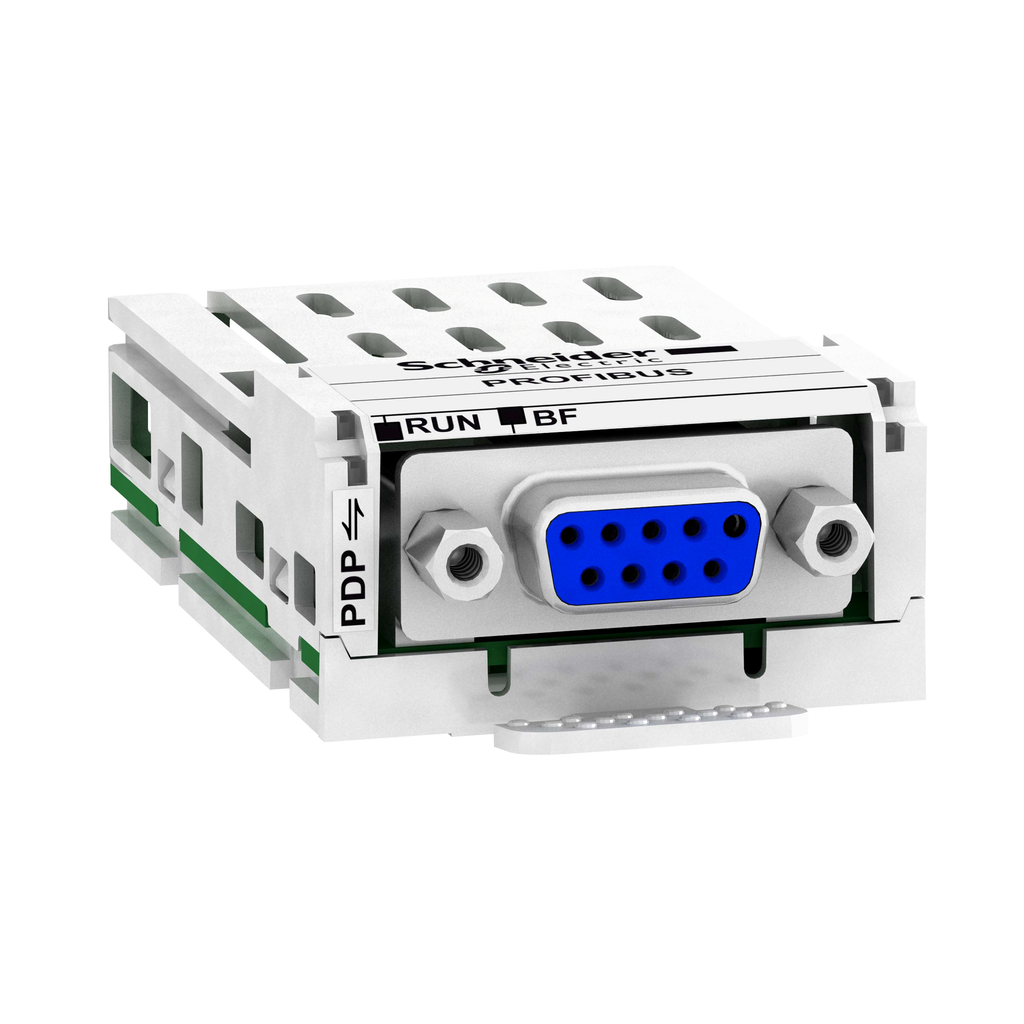

This Schneider Electric Altivar Profibus DP communication module has 1 x 9-way female SUB-D connector. It complies with PROFIBUS DP V1 standard. This communication module enables integration of your drive in your Profibus process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600 (ATV630, ATV650)Altivar Process ATV900 (ATV930, ATV950), Lexium 32, Altivar Easy 610, Altivar 32, Altivar Machine ATV340 and Altivar Machine ATV320. Removable module allows last minute decisions on drive communication protocol, facilitates installation project management. It weighs 140g.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Altivar |
---|---|
Product Or Component Type | communication module |
Warranty | 18 months |
Addressing |
|
Bus Profile |
|
Alarm Function |
|
Electrical Connection | 1 female connector SUB-D 9 |
Communication Service |
|
Communication Port Protocol | Profibus DP V1 |
Product Compatibility | Lexium 32 |
Display Type |
|
Range Compatibility |
|
Transmission Rate | 9.6 kbps...12 Mbps |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP2010009EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Standards | IEC 61800-7-201 (CiA 402) |
