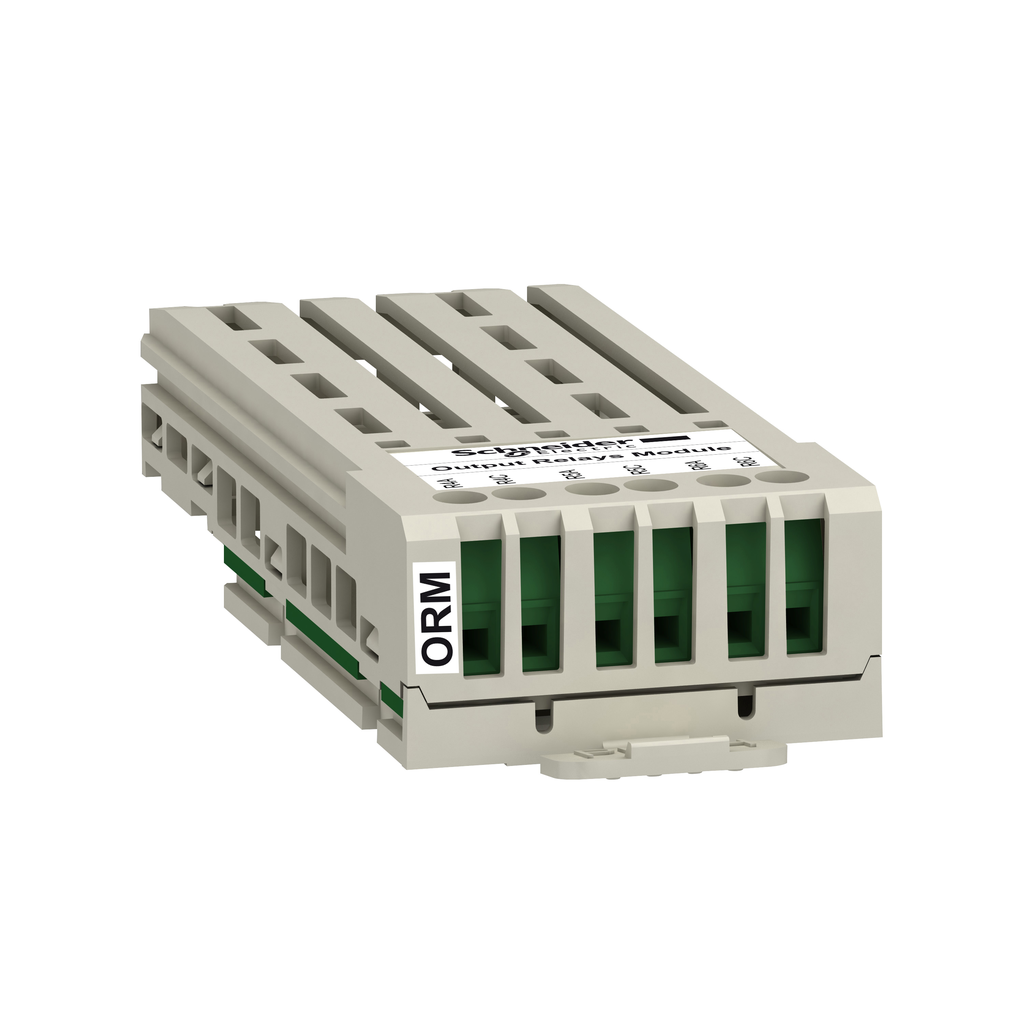

VW3A3204
additional output module, Altivar, relay output, 24 to 30V DC, 1 screw terminal
This extended module enables your drive to meet the needs of application that manage additional or specific sensors. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Process ATV600, Altivar Process ATV900 and Altivar Machine ATV340. It is also compatible with Altivar Easy 610. It has one screw terminal block 1.5 mm² / AWG 16.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Discrete Output Number | 3 |
|---|---|
| Discrete Output Type | R4, R5, R6) relay normally open 1-1 ms |
| Range Compatibility |
|
| Product Or Component Type | additional output module |
| Input/Output Type | 3 relay output |
| Minimum Switching Current | 5 mA 24 V DC |
| Electrical Connection | screw terminal block, 1.5 mm² / AWG 16, 0.5 N.m |
| Electrical Durability | 100000 cycles |
| Maximum Switching Current |
|
| Net Weight | 0.4 kg |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
