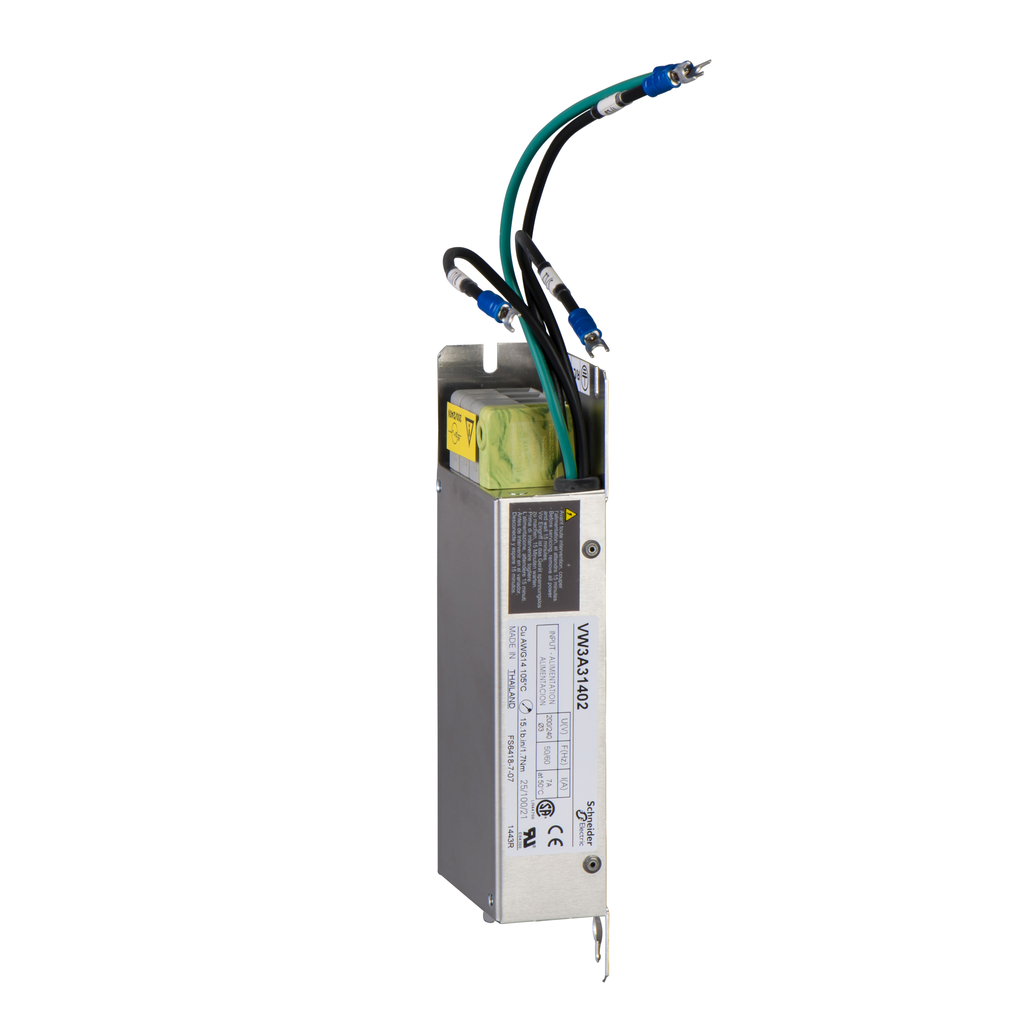

VW3A31402
additionnal EMC filter S1 S2 M3 - 3-phase supply - 7 A
Specifications
| Range Of Product | Altivar |
|---|---|
| Product Compatibility |
|
| Product Specific Application | radio interference input filter |
| Line Rated Current | 7 A |
| Range Compatibility |
|
| Product Or Component Type | EMC input filter |
| Thermal Losses | 2.6 W ATV31H018M3X |
| Phase | three phase |
| Warranty | 18 months |
| Tolerance | 10 % |
| Net Weight |
|
| Earth Leakage Current | 7 mA 50 Hz |
| Network Rated Voltage | 200-240 V |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Ambient Air Temperature For Storage | -25-70 °C |
| Relative Humidity | 0-93 % IEC 68-2-3 |
| Standards |
|
| Ip Degree Of Protection |
|
| Operating Altitude |
|
| Ambient Air Temperature For Operation | -10-50 °C |
| Shock Resistance | 15 gn 11 ms EN/IEC 60068-2-27 |
| Vibration Resistance |
|
