VW3A1105

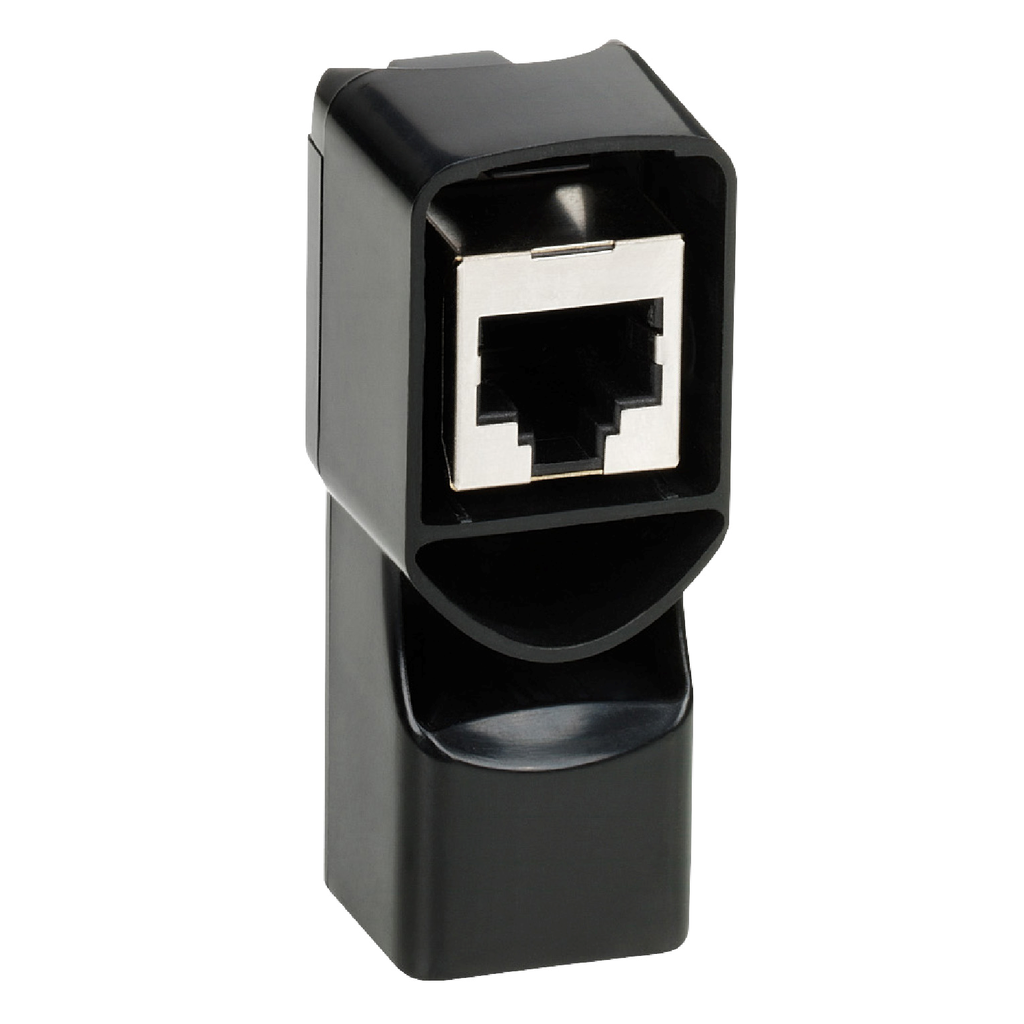

RJ45 female/female adaptor, Altivar, for remote graphic display terminal
This adaptor enables remote graphic display terminal to be connected to several variable speed drives via multidrop link. It consists in 2 female RJ45 connectors.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Altivar |
|---|---|
| Accessory / Separate Part Category | adaptation accessories |
| Range Compatibility |
|
| Product Compatibility |
|
| Accessory / Separate Part Type | adaptor |
| Kit Composition | 1 adaptor RJ45 female/female |
| Accessory / Separate Part Destination | remote graphic display terminal |
| Warranty | 18 months |
| Net Weight | 0.01 kg |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
