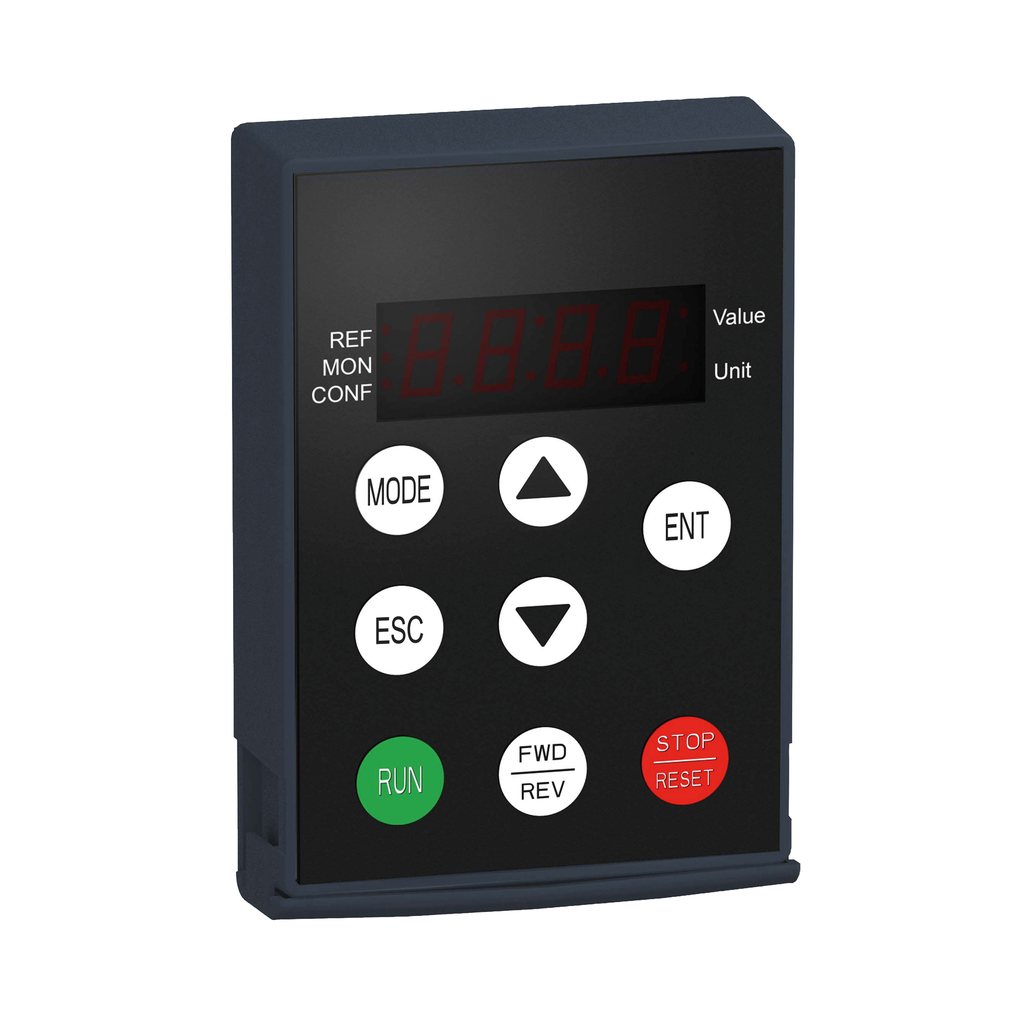

VW3A1007
remote terminal, Altivar, for variable speed drive, IP65
This remote terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP65. This terminal is used to locate the Human-Machine Interface of the Altivar drive remotely on the door of an enclosure. Its maximum operating temperature is 50 °C. It weighs 275g. It is used to ccntrol, adjust, and configure the drive remotely, display the drive status and error codes. A remote-mounting cordset VW3A1104Rxx is also required, to be ordered separately. The ATV12 range meets basic machine requirements united with simplicity.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Altivar |
|---|---|
| Accessory / Separate Part Category | display and signalling accessory |
| Range Compatibility |
|
| Accessory / Separate Part Type | remote terminal |
| Ip Degree Of Protection | IP65 |
| Accessory / Separate Part Destination | variable speed drive |
| Warranty | 18 months |
| Net Weight | 0.275 kg |
| Mounting Location | door of enclosure |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
