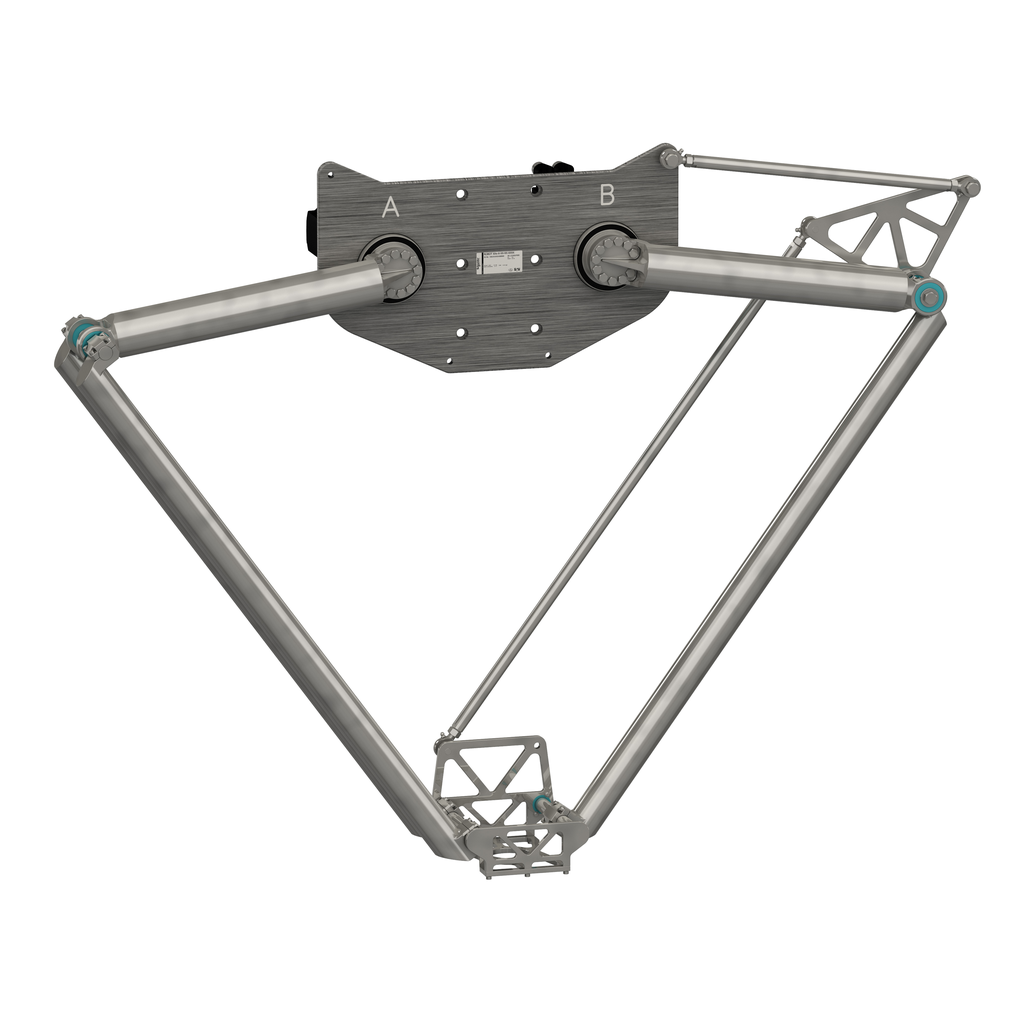

Delta 2 robot, T5, 2-3 axis, 30 kg permissible load, 0-1500 mm working envelop
This product is part of the Lexium T, P range, an offer of Delta robots for pick and place solutions. The Delta 2 robot in a standard design which provides 2 to 3 axes. Its permanent permissible load reaches 30kg. It has a 1500mm working envelop. This pick and place robot features 0mm to 1500mm horizontal, 0mm to 615mm vertical work envelopes. It offers permanent permissible load of 10kg and maximum actuation speed of 4m/s. It has stainless steel construction. It weighs 65kg. It is suitable for general machine control, packaging machine automation and material handling applications. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. It is compatible with Lexium SH3 motors. Lexium T, P delta robots for pick and place solutions. Lexium Delta 2 and Delta 3 robots are designed for fast pick-and-place with payloads of up to 60kg (Delta 2) and 15kg (Delta 3).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Lexium P, T |
|---|---|
| Product Or Component Type | delta 2 robot |
| Design | compact |
| Device Short Name | T5 |
| Operating Travel |
|
| Repeat Accuracy | 0.1 mm |
| Number Of Axis | 2-2 |
| Maximum Actuation Speed | 4 m/s |
| Range Compatibility | Lexium MH3 motor |
| Net Weight | 60 kg |
| Maximum Acceleration | 40 m/s² |
| Permanent Permissible Load | 30 kg |
| Environmental Characteristic | normal environment |
