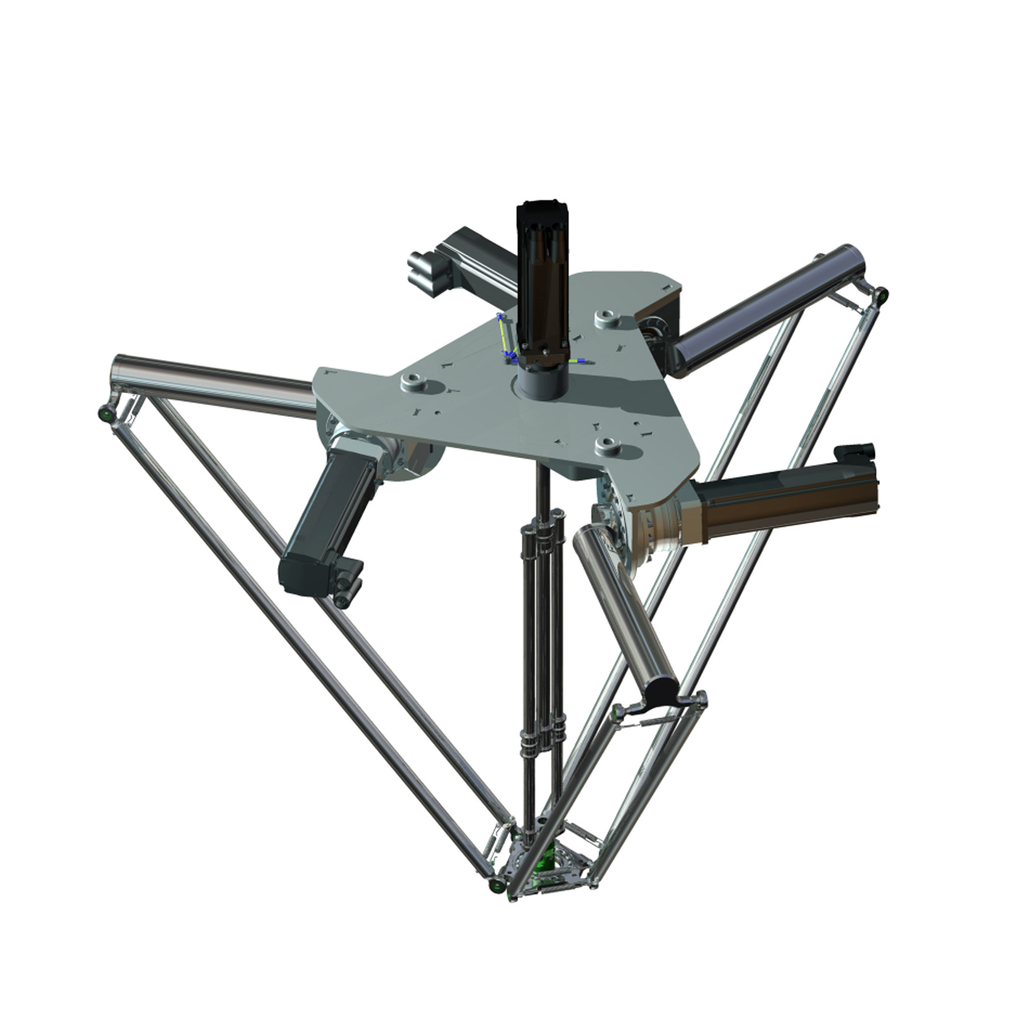

This product is part of the Lexium T, P range, an offer of Delta robots for pick and place solutions. The Delta 3 robot in a compact design which provides 3 to 4 axes. Its permanent permissible load reaches 10kg. It has a 1600mm working envelop. This pick and place robot features 0mm to 1600mm diameter, 0mm to 550mm vertical work envelopes. It offers permanent permissible load of 10kg. It has stainless steel construction. It weighs 80kg. It is suitable for general machine control, packaging machine automation and material handling applications. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. It is compatible with Lexium SH3 motors. Lexium T, P delta robots for pick and place solutions. Lexium Delta 2 and Delta 3 robots are designed for fast pick-and-place with payloads of up to 60kg (Delta 2) and 15kg (Delta 3).
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Lexium P, T |
---|---|
Product Or Component Type | delta 3 robot |
Design | compact |
Device Short Name | P6 |
Operating Travel |
|
Repeat Accuracy | 0.1 mm |
Number Of Axis | 3-3 |
Maximum Actuation Speed | 10 m/s |
Range Compatibility | Lexium SH3 motor |
Net Weight | 80 kg |
Maximum Acceleration |
|
Permanent Permissible Load | 10 kg |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1503015EN |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1503015EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Environmental Characteristic | normal environment |
