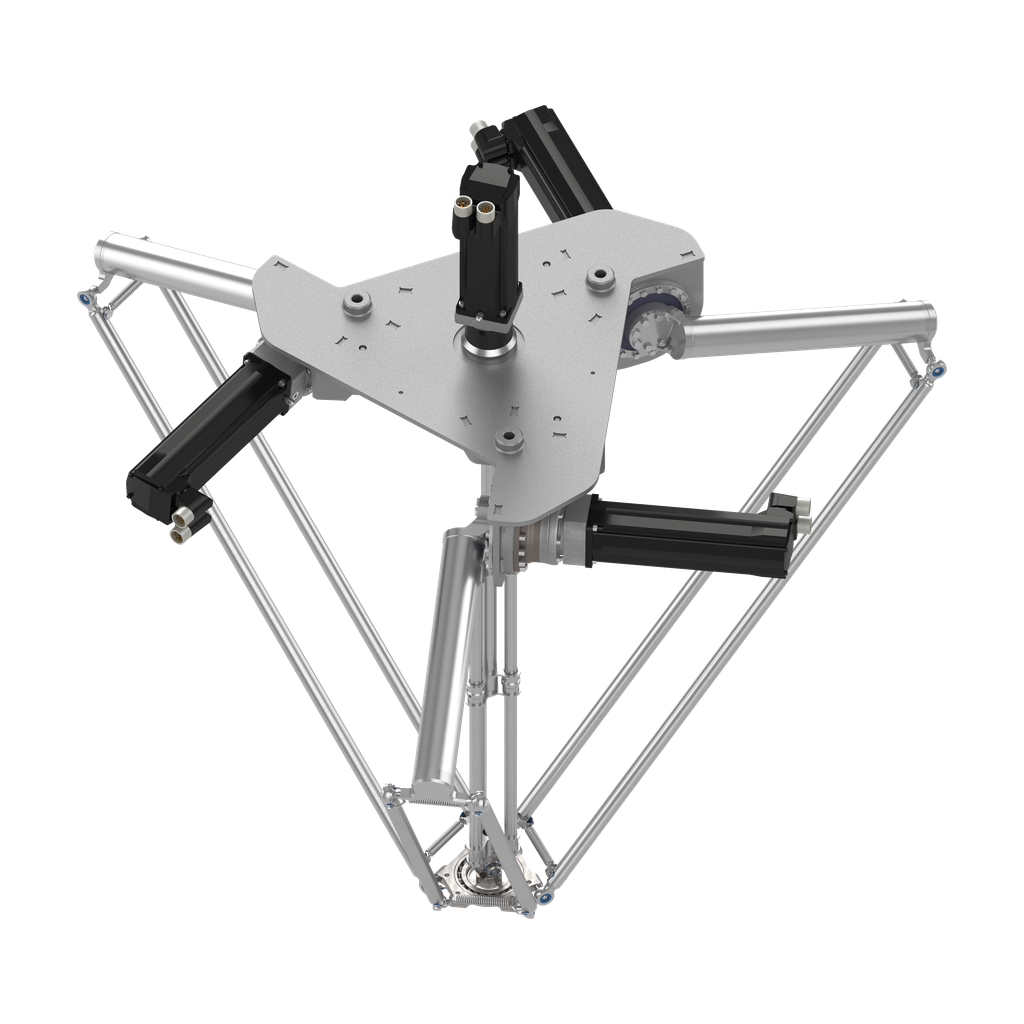

Delta 3 robot, P4, 3-4 axis, 15 kg permissible load, 0-1200 mm working envelop
This product is part of the Lexium T, P range, an offer of Delta robots for pick and place solutions. The Delta 3 robot in a compact design which provides 3 to 4 axes. Its permanent permissible load reaches 15kg. It has a 1200mm working envelop. This pick and place robot features 0mm to 1200mm diameter, 0mm to 425mm vertical work envelopes and rotational 360° operating position. It offers permanent permissible load of 15kg and maximum actuation speed of 10m/s. It has stainless steel construction. It weighs 75kg. It is suitable for general machine control, packaging machine automation and material handling applications. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. It is compatible with Lexium SH3 motors and Lexium 62 ILM. Lexium T, P delta robots for pick and place solutions. Lexium Delta 2 and Delta 3 robots are designed for fast pick-and-place with payloads of up to 60kg (Delta 2) and 15kg (Delta 3).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Lexium P, T |
|---|---|
| Product Or Component Type | delta 3 robot |
| Design | compact |
| Device Short Name | P4 |
| Operating Travel |
|
| Repeat Accuracy | 0.1 mm |
| Number Of Axis | 4-4 |
| Maximum Actuation Speed | 10 m/s |
| Operating Position | rotational 360° |
| Range Compatibility |
|
| Net Weight | 75 kg |
| Maximum Acceleration |
|
| Permanent Permissible Load | 15 kg |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1503015EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1503015EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Characteristic | normal environment |
