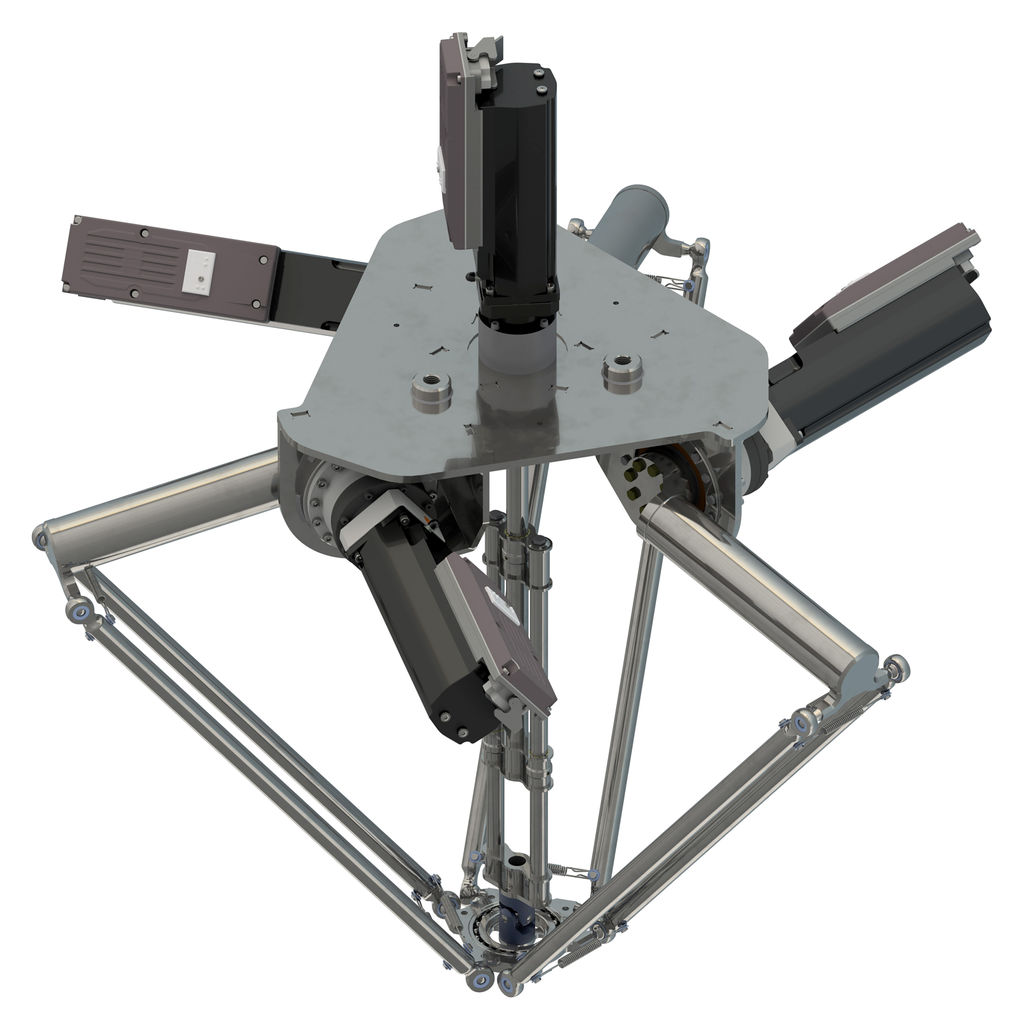

Delta 3 robot, P2, 3-4 axis, 15 kg permissible load, 0-800 mm working envelop
This robot belongs to Lexium T- P, which is figuring Delta robots for pick & place solutions. This is a P2 compact delta robot with 3 to 5 axes. Its permanent permissible load reaches 15kg. It has a 800mm working envelop. Lexium P are Delta 3 robots designed for fast pick-and-place with payloads of up to 15kg. It has a rotational axis and is equipped with Lexium 62 ILM integrated drives. It weighs 70kg. This robotics solution is an add-on to the PacDrive product line, designed to satisfy the rapidly rising demand for the integration of robots into machine design using Lexium components. This robotics solution is engineered with standard EcoStruxure Machine Expert tools for PacDrive, IEC 61131-3-compliant, CoDeSys-based programming. This robot is compatible with spare parts such as motor cover, fasteners, gearbox for main axis, parallel plate, guiding tubes for telescopic axis, sealing set for cover, for motor cover, for gearboxes, ball pins and ball sockets. And more. With its PacDrive-based robotics solution, Schneider Electric has integrated Lexium T and P robots into a standard automation solution. Lexium T, P (Delta 2 and delta 3 kinematics) offers a fully integrated solution for many pick-and-place packaging and handling applications. The stainless kinematics are well suited for the food, pharma, cosmetics, and beverage industries.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Lexium P, T |
|---|---|
| Product Or Component Type | delta 3 robot |
| Design | compact |
| Device Short Name | P2 |
| Operating Travel |
|
| Repeat Accuracy | 0.1 mm |
| Number Of Axis | 4-4 |
| Maximum Actuation Speed | 10 m/s |
| Operating Position | rotational 360° |
| Range Compatibility | Lexium 62 ILM motor |
| Net Weight | 70 kg |
| Maximum Acceleration |
|
| Permanent Permissible Load | 15 kg |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1503015EN |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1503015EN |
| Sustainable Offer Status | Green Premium product |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Environmental Characteristic | normal environment |
