VN12 - Switch body,TeSys Control,3 poles,12A,compact size

VN12

Switch body,TeSys Control,3 poles,12A,compact size

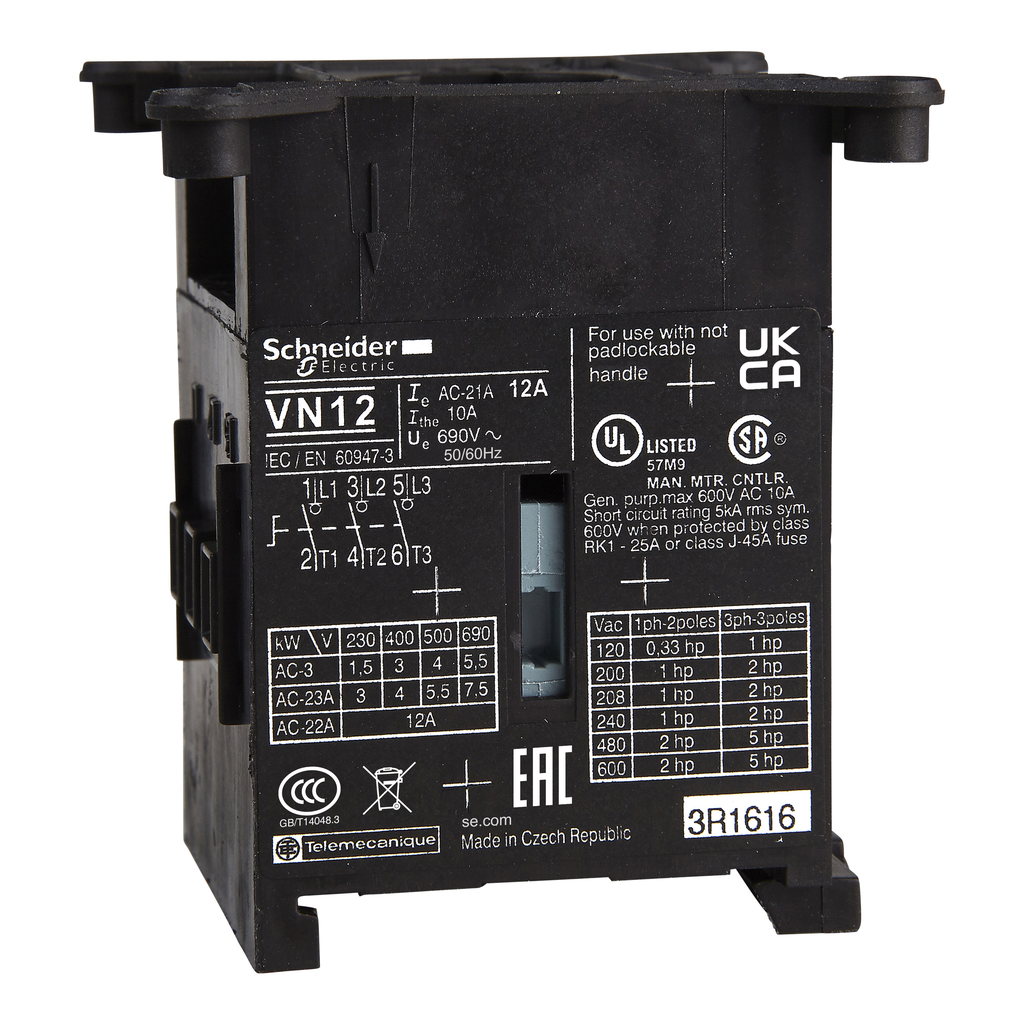

VN12 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric for motor applications 4kW@400V AC-23. It requires an operating handle and extension shaft to form a complete unit for enclosure mounting. VN12 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 12A 690V, it is used in motor applications 4kW@400V AC-23. It requires an operating handle and extension shaft to form a main or emergency stop switch disconnector. Add-on modules (main pole, neutral pole, earthing module, auxiliary contacts) can complete the assembly. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole switch body for rotary switch disconnector assemblies. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 on each side) , main (VZN12), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Network Frequency	50/60 Hz
Network Type	DC AC
Product Or Component Type	switch body
Product Name	TeSys Mini-VARIO
Performance Level	standard
Range	TeSys
Contacts Type And Composition	3 NO
Poles Description	3P
Warranty	18 months
[Ue] Rated Operational Voltage	690 V AC 50/60 Hz
Height	46.5 mm
Intermittent Duty Class	30
[Ith] Conventional Free Air Thermal Current	12 A
Mounting Support	symmetrical rail
[Ithe] Conventional Enclosed Thermal Current	10 A
Net Weight	0.11 kg
[Uimp] Rated Impulse Withstand Voltage	6 kV
Making Capacity	120 A 400 V AC-21A 120 A 400 V AC-22A 120 A 400 V AC-23A
Connections - Terminals	power circuit screw clamp terminals 4-4 mm² solid power circuit screw clamp terminals 4-4 mm² flexible - with cable end
[Icm] Rated Short-Circuit Making Capacity	0.5 kA 400 V at Ipeak
Electrical Durability	30000 cycles DC-1...5 50000 cycles AC-21
Suitability For Isolation	yes
[Ie] Rated Operational Current	8.1 A AC-23)400 V
Mechanical Durability	50000 cycles
Width	56 mm
Tightening Torque	power circuit 7-7 N.m screw clamp terminals
Depth	62 mm
Breaking Capacity	120 A 400 V AC-22A) 120 A 400 V AC-23A) 120 A 400 V AC-21A)
Rated Operational Power In W	3 kW 400...415 V AC-3) 4 kW 500 V AC-3) 4 kW 690 V AC-3) 1.5 kW 230...240 V AC-3) 5.5 kW 500 V AC-23A) 7.5 kW 690 V AC-23A) 3 kW 230...240 V AC-23A) 4 kW 400...415 V AC-23A)
Rated Conditional Short-Circuit Current	6 kA 400 V 12 A aM 6 kA 400 V 12 A gG
[Icw] Rated Short-Time Withstand Current	140 A 400 V 1 s
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110227EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
Halogen Content Performance	Halogen free product
Product Certifications	UL CSA GL UKCA
Ambient Air Temperature For Operation	-20-50 °C
Standards	IEC 60947-3
Ip Degree Of Protection	IP20 conforming to IEC 60529
Protective Treatment	TC
Mechanical Robustness	vibrations 10...150 Hz 5 gn) IEC 60068-2-6 shocks 11 ms 15 gn) IEC 60068-2-27
Fire Resistance	960 °C IEC 60695-2-1
