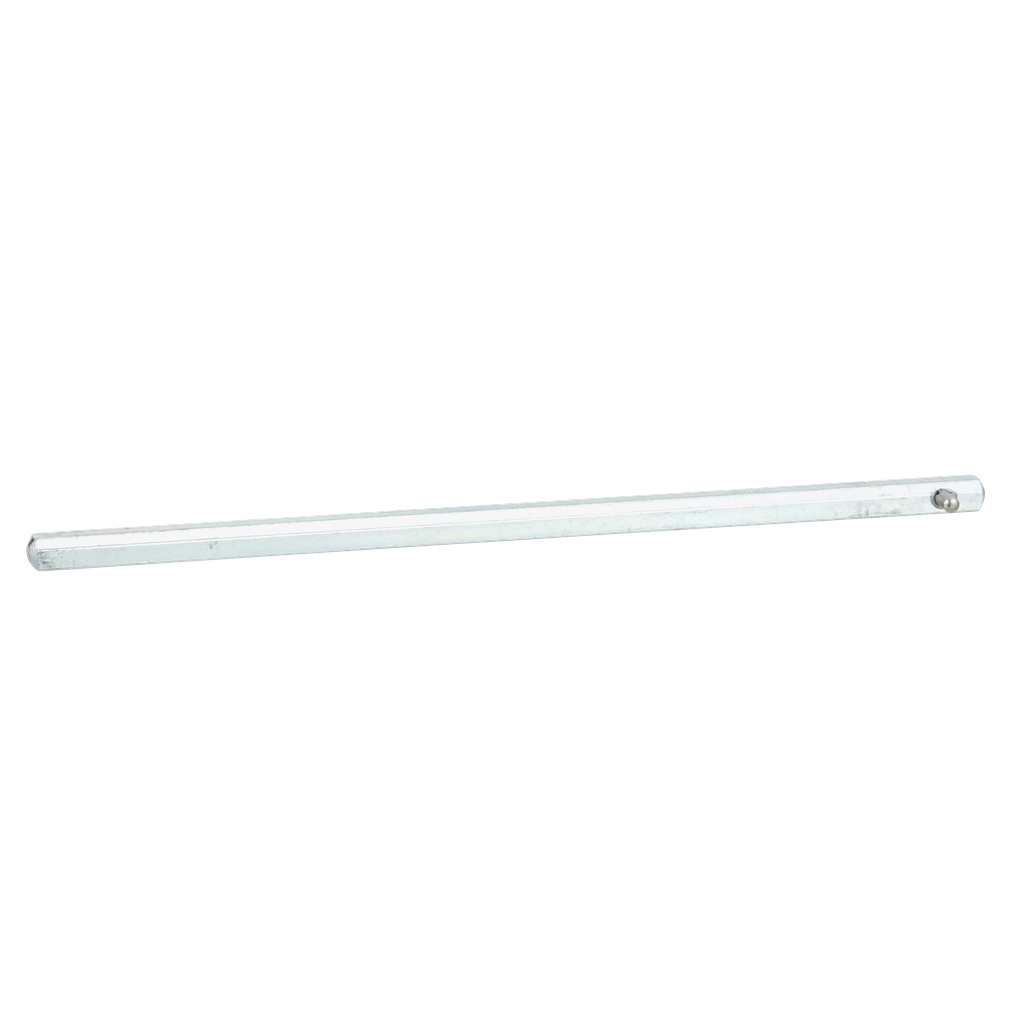

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. Shaft extension is for rear-mounting handles VLSH1S5R, VLSH2S5R, VLSH2H5R, VLSH2H5RD, VLSH1S5B, VLSH2S5B, VLSH2H5B, VLSH2H5BD or VLSH2S5BC. It can also be used with mechanical interlock VLS8C1 or VLS8C2 or mechanical coupling system VLS8M1. This shaft extension is 0.20 inches by 0.20 inches and 5.91 inches long. The shaft extension weighs 0.07 lbs. The shaft extension is cULus Listed and meets IEC 60947-3 requirements.
Brand: Schneider Electric
Add to Quote CatalogueRange Compatibility | TeSys (TeSys VARIO LS) VLSH |
---|---|
Product Or Component Type | shaft extension |
Device Short Name | VLSS |
Range | TeSys |
Height | 5 mm |
Width | 5 mm |
Depth | 150 mm |
Net Weight | 32 g |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Toxic Heavy Metal Free | Yes |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
