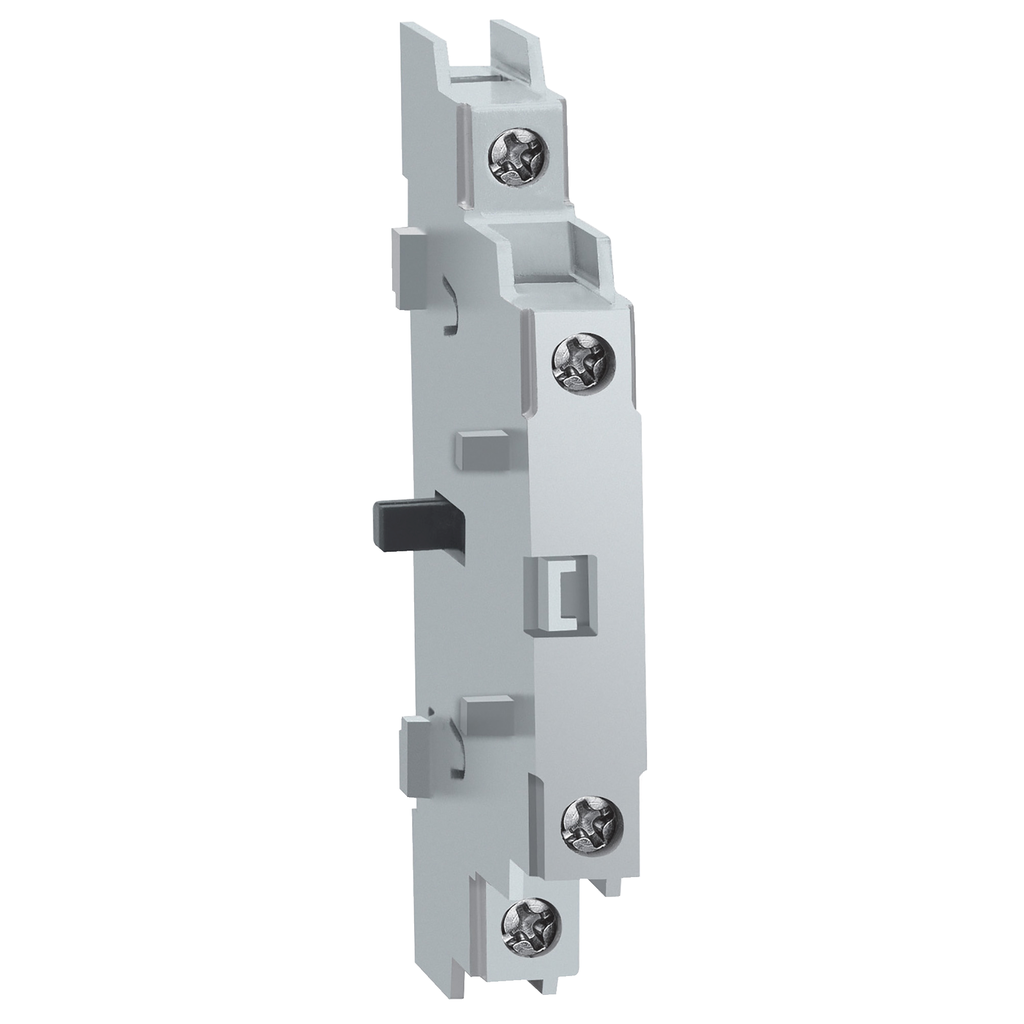

Disconnect switch, TeSys VLS, auxiliary contact block, 1 normally closed and 1 normally open, DIN rail
These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This auxiliary contact can be added to a VLS3P016D1, VLS3P025D1, VLS3P032D1, VLS3P040D1 or VLS3P063D1 door mount switch. This auxiliary contact can also be added to a VLS3P030D2, VLS3P063D2, VLS3P080D2, VLS3P100D2 or VLS3P125D2 door mount switch. This auxiliary contact can be mounted on the right or left hand side. This auxiliary contact has one normally open early break contact. The operational voltage of this auxiliary contact is 600 V. This auxiliary contact block has A600 and Q600 current ratings. The screw clamp terminals will accept 18 AWG to 6 AWG wire. This auxiliary contact is 2.86 inches tall, 0.35 inches wide and 1.82 inches deep. The switch weighs 0.07 lbs. This auxiliary contact module is cULus Listed and meets IEC 60947-3 requirements.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Network Frequency | 50/60 Hz |
|---|---|
| Contact Operation |
|
| Contacts Type And Composition | 1 NC + 1 NO |
| Network Type |
|
| Range Compatibility |
|
| Product Or Component Type | auxiliary contact block |
| Device Short Name | VLSA |
| Performance Level | high performance |
| Range | TeSys |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Height | 72.6 mm |
| Minimum Output Current | 10 mA |
| [Ith] Conventional Free Air Thermal Current | 10 A 55 °C |
| Mounting Support | DIN rail |
| [Ie] Rated Operational Current |
|
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Color | Gray |
| Width | 9 mm |
| Tightening Torque | control circuit 0.8-1 N.m screw clamp terminals |
| Depth | 46.2 mm |
| Minimum Output Voltage | 5 V |
| Net Weight | 0.03 kg |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Mounting Location |
|
| Connections - Terminals | control circuit screw clamp terminals 2.5-2.5 mm² flexible - without cable end |
| China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Reach Free Of Svhc | Yes |
| Product Certifications |
|
| Ambient Air Temperature For Operation | -25-55 °C |
| Standards |
|
| Mechanical Robustness |
|
| Fire Resistance | 850 °C IEC 60695-2-11 |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
