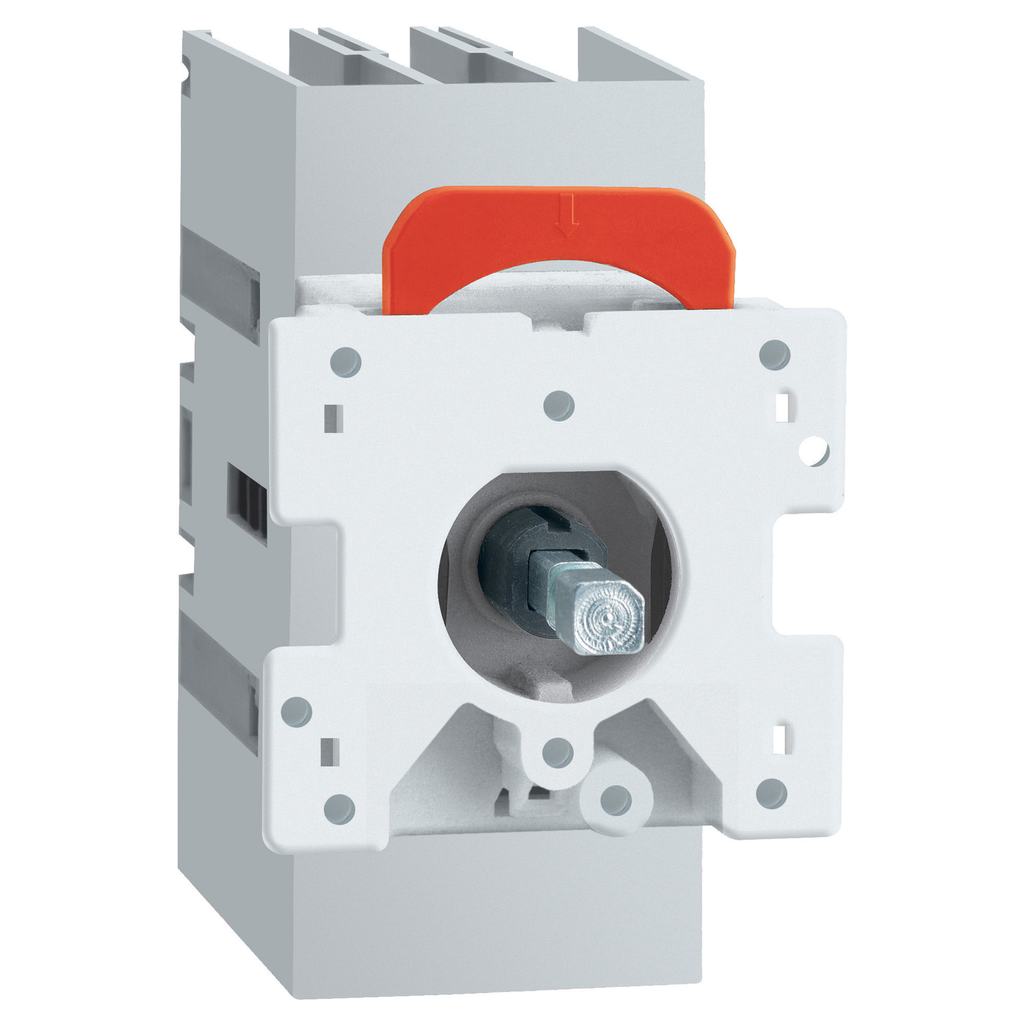

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 16A disconnect switch has 3 normally open poles and mounts directly in the enclosure door. Per UL and CSA this this disconnect switch has a 1 HP rating at 120 VAC and a 2 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 5 HP rating at 200 to 208 VAC and 240 VAC and a 10 HP rating at 480 and 600 VAC three phase. Per UL508A this this disconnect switch has up to a 5 kA at 600 V short circuit current rating (SCCR) with a 30A Type RK5 fuse maximum. Per IEC requirements, this disconnect switch has a 7.5 kW rating at 400 and 500 V and a 11 kW rating at 690V three phase. The screw clamp terminals will accept 10 mm solid or 16 mm stranded wire. The clamps will also accept solid or stranded wire from 18 AWG to 6 AWG. This disconnect switch is 3.07 inches tall, 1.77 inches wide and 2.87 inches deep. The switch weighs 0.30 lbs. There are many handles and accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL60947-4-1, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.
Brand: Schneider Electric
Add to Quote CatalogueProduct Or Component Type | switch body |
---|---|
Product Name | TeSys VARIO LS |
Range | TeSys |
Device Short Name | VLS3P |
Network Frequency | 50/60 Hz |
[Ue] Rated Operational Voltage | 600 V AC 50/60 Hz UL 508 |
[Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
Height | 78 mm |
Intermittent Duty Class | class 120 - 60 % |
[Ith] Conventional Free Air Thermal Current | 16 A 55 °C |
Mounting Support | door |
Network Type | AC |
[Ithe] Conventional Enclosed Thermal Current | 16 A |
Net Weight | 0.135 kg |
Performance Level | high performance |
[Uimp] Rated Impulse Withstand Voltage | 8 kV |
Making Capacity |
|
Connections - Terminals |
|
Contacts Type And Composition | 3 NO |
[Icm] Rated Short-Circuit Making Capacity | 1128 A 690 V |
Electrical Durability | 100000 cycles AC-21A |
[Ie] Rated Operational Current |
|
Mechanical Durability | 100000 cycles |
Poles Description | 3P |
Color | Gray |
Width | 45 mm |
Tightening Torque | power circuit 1.8-2 N.m screw clamp terminals |
Depth | 73 mm |
Breaking Capacity |
|
Rated Operational Power In W |
|
Rated Conditional Short-Circuit Current | 50 kA 400 V 16 A gG |
[Icw] Rated Short-Time Withstand Current | 800 A 690 V 1 s |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Free of Substances of Very High Concern above the threshold |
Reach Free Of Svhc | Yes |
China Rohs Regulation | Pro-active China RoHS declaration (out of China RoHS legal scope) |
Eu Rohs Directive | Compliant |
Product Certifications |
|
Ambient Air Temperature For Operation | -25-55 °C |
Standards |
|
Ip Degree Of Protection | IP20 conforming to IEC 60529 |
Mechanical Robustness |
|
Fire Resistance | 960 °C IEC 60695-2-11 |
