VCFN40GE
Enclosed switch disconnector,TeSys Control,for ON/emergency stop,32A,IP65,compact size

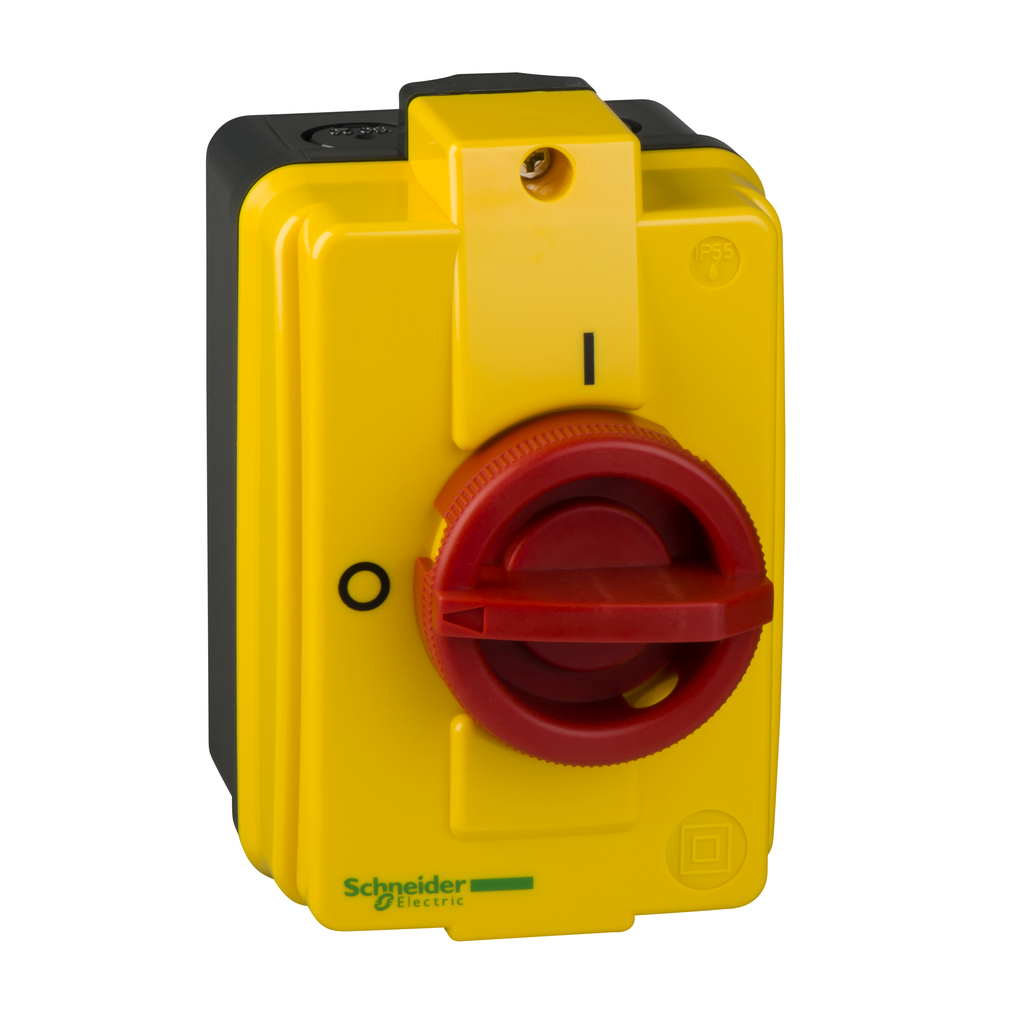

TeSys enclosed starter with switch disconnector, 3 poles, Ithe 32A 690V, for main and emergency stop switching in motor applications up to 15kW@400V AC-23. Enclosure providing IP55 protection, yellow cover fitted with a red rotary handle and I/O marking, padlockable (padlocks not included). It includes a 3-pole Vario switch body V2 with no possibility to have add-on module attachments. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. It conforms to IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
|---|---|
| Handle Front Plate Colour | yellow |
| Handle Colour | red |
| Product Or Component Type | emergency stop switch disconnector |
| Product Name | TeSys Mini-VARIO |
| Performance Level | standard |
| Range | TeSys |
| Control Type | rotary handle |
| Poles Description | 3P |
| Device Short Name | VCFN |
| Warranty | 18 months |
| [Ue] Rated Operational Voltage | 690 V AC |
| Height | 131 mm |
| Intermittent Duty Class | 30 |
| [Ithe] Conventional Enclosed Thermal Current | 32 A |
| Marking | 0 - 1 |
| Base Dimension | 60 x 60 mm |
| Net Weight | 0.512 kg |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Making Capacity | 400 A 400 V AC-21A |
| Suitability For Isolation | yes |
| Fire Resistance | 960 °C IEC 60595-2-1 |
| Width | 82.5 mm |
| Depth | 106 mm |
| Rated Operational Power In W |
|
| Rated Conditional Short-Circuit Current | 10 kA 400 V |
| [Icw] Rated Short-Time Withstand Current | 960 A 400 V 1 s |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111273EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -20-50 °C |
| Standards | IEC 60947-4-1 |
| Protective Treatment | TC |
| Mechanical Robustness |
|
