VCCDN20 - Switch disconnector,TeSys Control,for ON/emergency stop,20A(VN20),for mounting at back of an enclosure

VCCDN20

Switch disconnector,TeSys Control,for ON/emergency stop,20A(VN20),for mounting at back of an enclosure

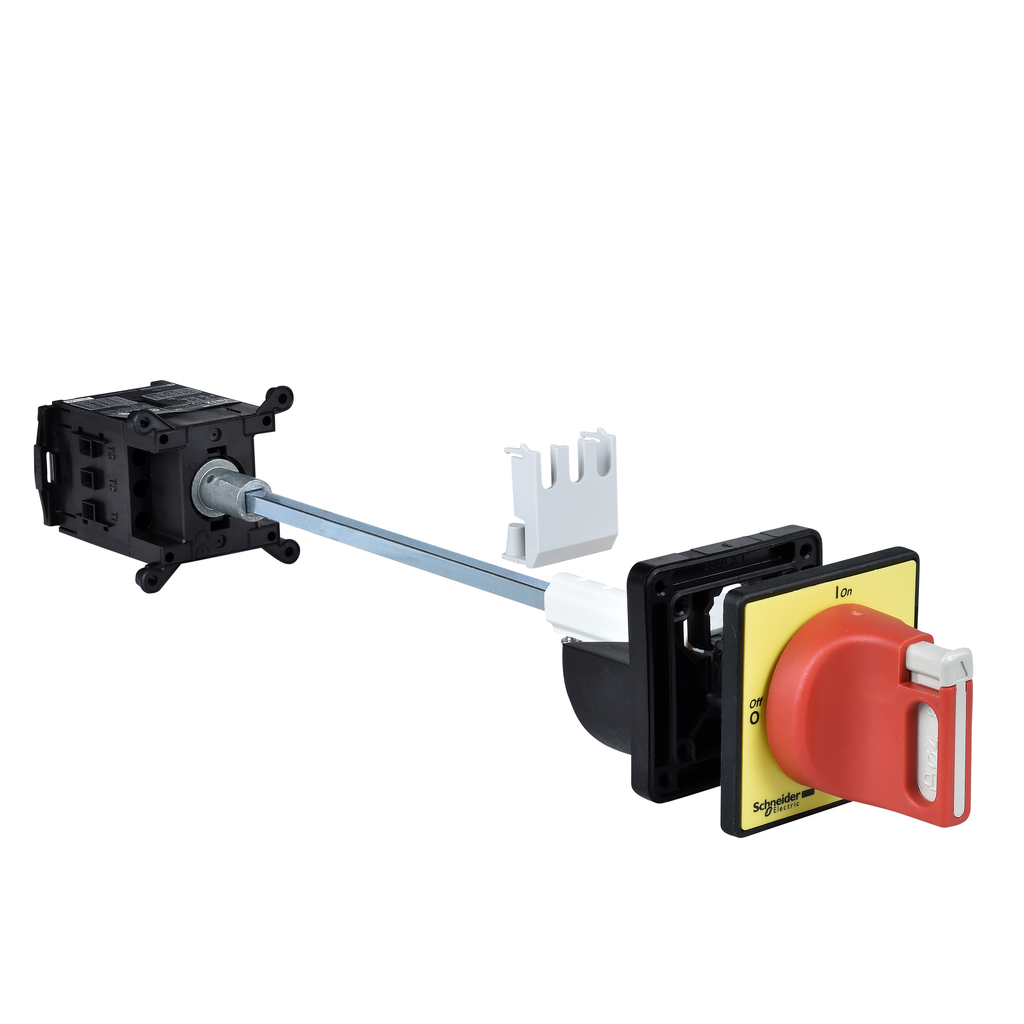

VCCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 5.5kW@400V AC-23. For enclosure back mounting, it provides a red & yellow operator and extension shaft with IP65 protection. VCCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 5.5kW@400V AC-23. It consists of a VZ20 Vario switch body to be mounted on the back of an enclosure, an extension shaft, and a padlockable red & yellow operator with a single fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for back mounting. Composed with a switch body VZ20, an extension shaft and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 2 add-on poles (1 in each side) , main (VZN20), neutral (VZN11), earthing (VZN14), auxiliary (VZN05, VZN06).

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Rotary Handle Padlocking	1 to 3 padlocks 4-8 mm
Rotary Handle Mounting Style	extended
Network Type	DC AC
Handle Front Plate Colour	yellow
Handle Colour	red
Product Or Component Type	emergency stop switch disconnector
Product Name	TeSys Mini-VARIO
Performance Level	standard
Range	TeSys
Control Type	rotary handle
Contacts Type And Composition	3 NO
Poles Description	3P
Device Short Name	VCCDN
Warranty	18 months
Height	60 mm
Intermittent Duty Class	30
[Ith] Conventional Free Air Thermal Current	20 A
Fixing Mode	hole 22.5 mm handle by clips switch
[Ithe] Conventional Enclosed Thermal Current	16 A
Marking	0 - 1
Base Dimension	60 x 60 mm
Net Weight	0.334 kg
Making Capacity	200 A 400 V AC-21A 200 A 400 V AC-22A 200 A 400 V AC-23A
Connections - Terminals	power circuit screw clamp terminals 4-4 mm² flexible - with cable end power circuit screw clamp terminals 4-4 mm² solid
[Icm] Rated Short-Circuit Making Capacity	0.5 kA 400 V at Ipeak
Electrical Durability	30000 cycles DC-1...5 50000 cycles AC-21
Suitability For Isolation	yes
Mounting Support	handle door switch symmetrical rail
[Ie] Rated Operational Current	11 A AC-23)400 V
Mechanical Durability	50000 cycles
Width	60 mm
Tightening Torque	power circuit 0.7-0.7 N.m screw clamp terminals
Device Composition	shaft extension handle switch
Breaking Capacity	200 kA 400 V AC-21A) 200 kA 400 V AC-22A) 200 kA 400 V AC-23A)
Rated Operational Power In W	4 kW 230...240 V AC-23A) 5.5 kW 400...415 V AC-23A) 7.5 kW 500 V AC-23A) 11 kW 690 V AC-23A) 3 kW 230...240 V AC-3) 4 kW 400...415 V AC-3) 5.5 kW 500 V AC-3) 5.5 kW 690 V AC-3)
Rated Conditional Short-Circuit Current	6 kA 400 V 20 A aM 6 kA 400 V 20 A gG
[Icw] Rated Short-Time Withstand Current	140 A 400 V 1 s
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP110227EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs Regulation	Product out of China RoHS scope. Substance declaration for your information.
Eu Rohs Directive	Compliant
Product Certifications	GL CSA CCC UL UKCA
Standards	IEC 60947-3
Ip Degree Of Protection	IP65
Protective Treatment	TC
Mechanical Robustness	shocks 11 ms 15 gn) IEC 60068-2-27 vibrations 10...150 Hz 1 gn) IEC 60068-2-6
