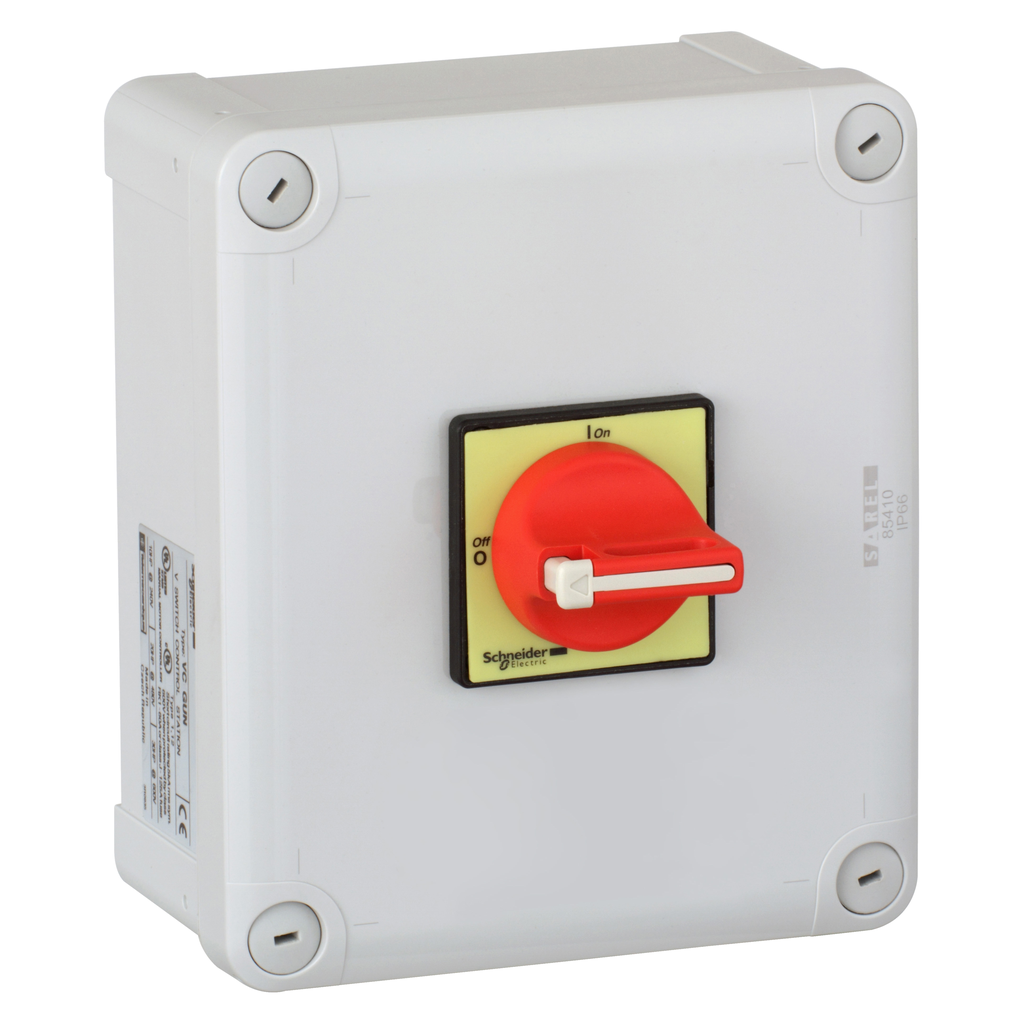

Enclosed switch disconnector,TeSys Control,for ON/emergency stop,63A,conforming UL/CSA standard
VC4GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for emergency stop switching in motor applications 40HP@600V. It provides an IP65 / NEMA type 12 enclosure, V4 Vario switch disconnector and red & yellow operator. VC4GUN is a 3-pole TeSys Vario enclosed switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 40HP@600V. It includes a V4 Vario switch disconnector rated 63A conforming UL/CSA. It provides an IP65 / NEMA type 12 enclosure with a red & yellow operator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC) and Green Premium compliant (RoHs/Reach). Enclosed switch disconnector including a 3-pole switch-disconnector Vario V4 model. Conforming to IEC (IEC 60947-4-1, IEC 60204) and UL/CSA (UL 508 and CSA 22.2 n° 14). NEMA type 12 enclosure rating, IP65 protection degree, sealable. Operating red handle for emergency stop, padlockable. Connections directly on the screw clamp terminals of the switch. Possible attachment of 2 add-on poles to the switch body , main (VZ4), neutral (VZ12), earthing (VZ15), auxiliary (VZ7, VZ20).
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Rotary Handle Padlocking | 1 to 3 padlocks 4-8 mm |
|---|---|
| Handle Front Plate Colour | yellow |
| Handle Colour | red |
| Product Or Component Type | enclosed emergency stop switch disconnector |
| Product Name | TeSys VARIO |
| Performance Level | high performance |
| Range | TeSys |
| Control Type | rotary handle |
| Poles Description | 3P |
| Device Short Name | VC-GUN |
| Warranty | 18 months |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Height | 193 mm |
| Intermittent Duty Class | 30 |
| [Ithe] Conventional Enclosed Thermal Current | 63 A |
| Marking | 0 - 1 |
| Base Dimension | 60 x 60 mm |
| Net Weight | 0.93 kg |
| [Uimp] Rated Impulse Withstand Voltage | 8 kV |
| Making Capacity |
|
| Connections - Terminals |
|
| [Icm] Rated Short-Circuit Making Capacity | 2.1 kA 400 V at Ipeak |
| Electrical Durability |
|
| Environmental Characteristic | standard environment |
| Suitability For Isolation | yes |
| [Ie] Rated Operational Current | 57 A AC-23A)400 V |
| Mechanical Durability | 30000 cycles |
| Rated Power In Hp |
|
| Fire Resistance | 960 °C IEC 60595-2-1 |
| [Ithe] Conventional Enclosed Thermal Current |
|
| Width | 164 mm |
| Tightening Torque | 4-4 N.m screw clamp terminals |
| Depth | 132 mm |
| Breaking Capacity |
|
| Rated Operational Power In W |
|
| Rated Conditional Short-Circuit Current |
|
| [Icw] Rated Short-Time Withstand Current | 960 A 400 V 1 s |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP111273EN |
| Sustainable Offer Status | Green Premium product |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Eu Rohs Directive | Compliant |
| Ambient Air Temperature For Operation | -20-50 °C |
| Standards |
|
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Nema Degree Of Protection | NEMA 12 |
| Protective Treatment | TC |
| Mechanical Robustness |
|
