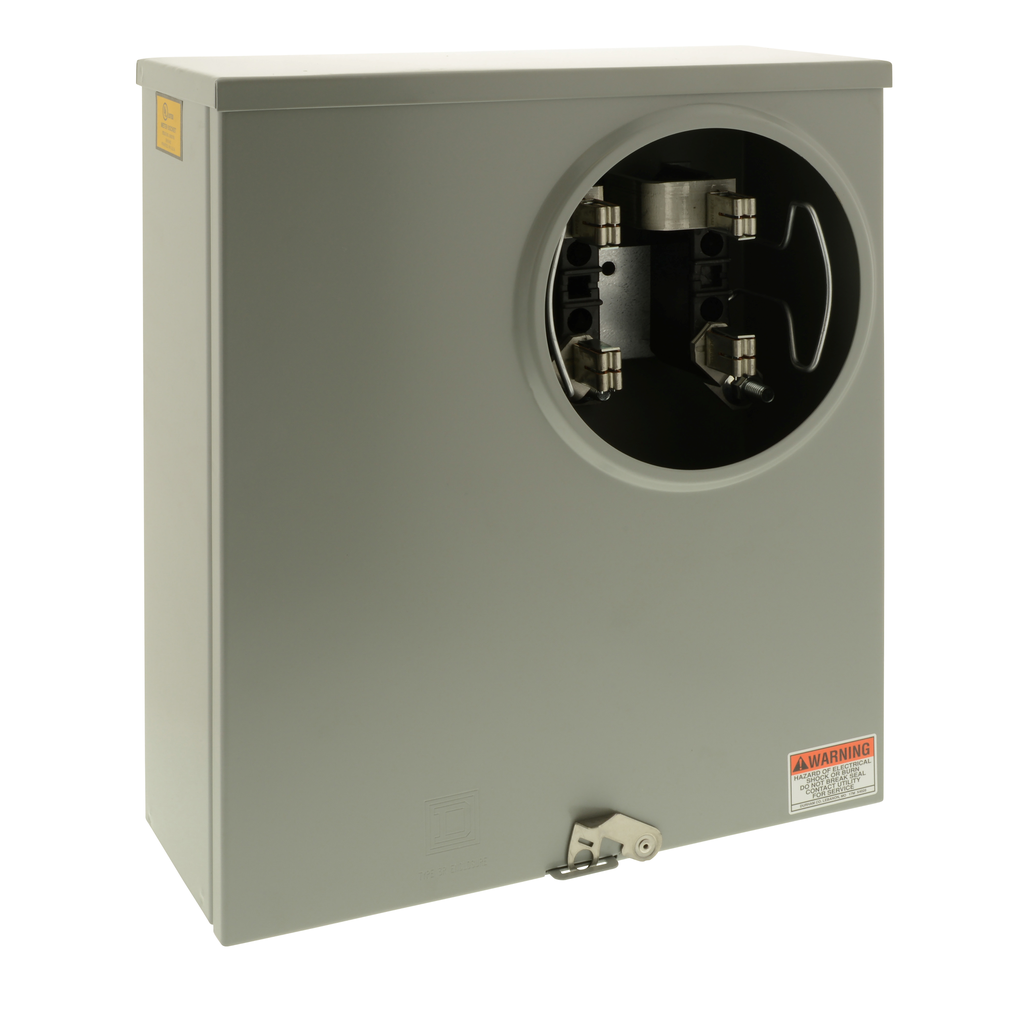

Individual meter socket, ringless socket, no bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W
Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a higher rating with utility approval. Units are supplied with a bonded neutral. Units are supplied with a hub opening in top end wall which requires the use of a bolt on hub or a closing plate. This ringless meter socket has four jaws with no bypass and without jaw release. This meter socket is for single phase 3 wire systems up to 600 VAC. This meter socket has a 200 A rating. This unit can be for a feed from an underground service. This unit has a NEMA 3R surface mounting enclosure. This individual meter socket is UL Listed.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Hub Type | solid top |
|---|---|
| Meter Socket Type | ringless |
| Product Or Component Type | Meter Socket |
| Warranty | 18 months |
| Service Feed Location | UG |
| Meter Socket Rated Current | 200 A |
| Device Mounting | surface |
| [Ue] Rated Operational Voltage | 600 V AC |
| Bypass Type | no bypass |
| Enclosure Material | steel |
| Wiring Configuration | 3-wire |
| Electrical Connection | studs 0.375" hex |
| Number Of Jaws | 4 without jaw release |
| Phase | 1 phase |
| Eu Rohs Directive | Under investigation |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Product Certifications | UL Listed |
| Nema Degree Of Protection | NEMA 3R |
