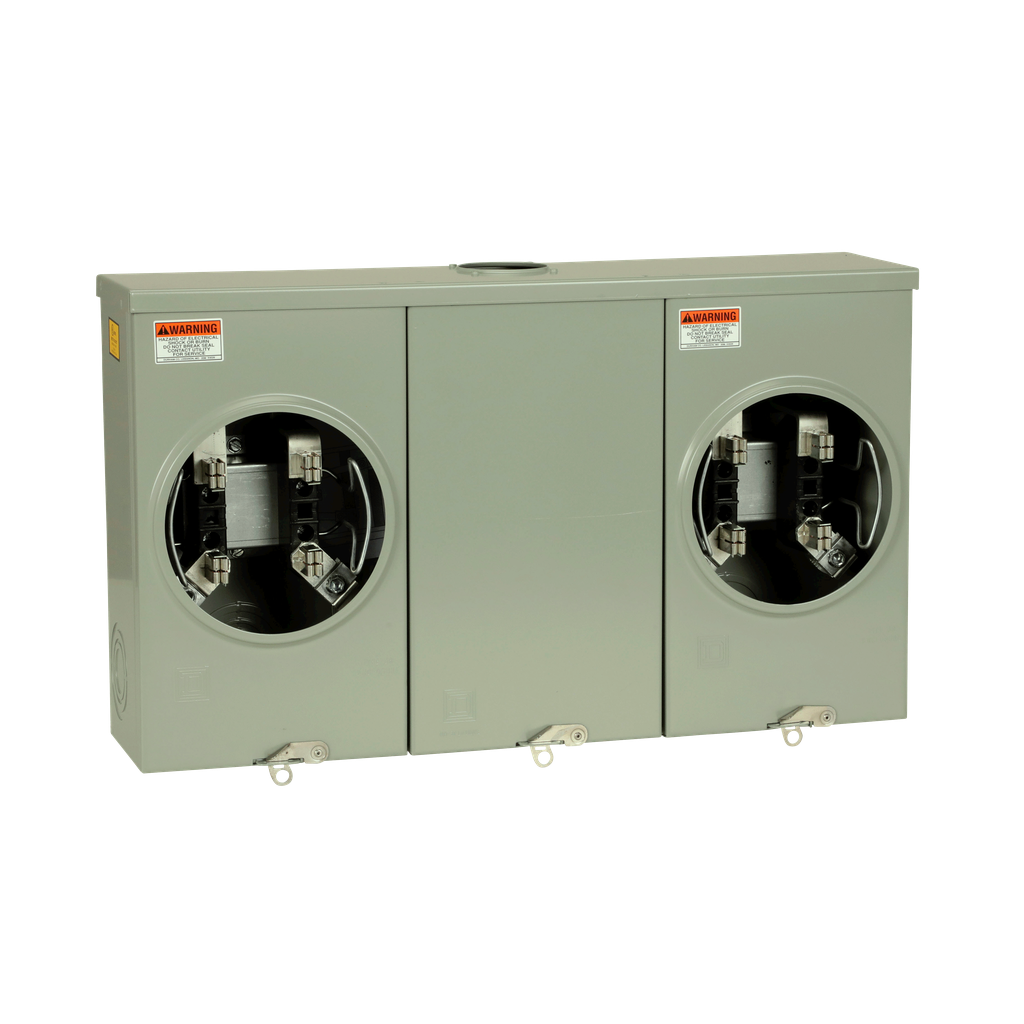

Square D™ Horizontal Ganged Meter Sockets are single phase power distribution panels used in residential applications. These meter sockets are NEMA 3R enclosures that are supplied with ground lugs and top endwall hub opening. This requires the use of a bolt on hub or closing plate. Horizontal Ganged Meter Sockets are 600 VAC and main lugs only. This product is a ringless type with no bypass, underground or overhead service feed, and has 2 positions. It also is rated at 200A with 4 jaws. When using the interior option, this product comes with main lugs rated at 205A. UL Listed rated.
Brand: Schneider Electric
Add to Quote Catalogue[Ue] Rated Operational Voltage | 600 V AC |
---|---|
Number Of Meter Sockets | 2 |
Line Rated Current | 205 A |
Product Or Component Type | Meter Socket |
Phase | 1 phase |
Warranty | 18 months |
Product Certifications | UL Listed |
Service Feed Location |
|
Hub Type | A ACP closing plate |
Nema Degree Of Protection | NEMA 3R |
Bypass Type | no bypass |
Meter Socket Type | ringless |
Wiring Configuration | 3-wire |
Awg Gauge |
|
Number Of Jaws | 4 without jaw release |
Box Number | 17R |
Eu Rohs Directive | Under investigation |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Nickel (Metallic), which is known to the State of California to cause cancer, and Toluene, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
