TVS3DSPHIC
Surge protection accessory, Surgelogic, TVSS display kit, 3 phase, I-Line, counter

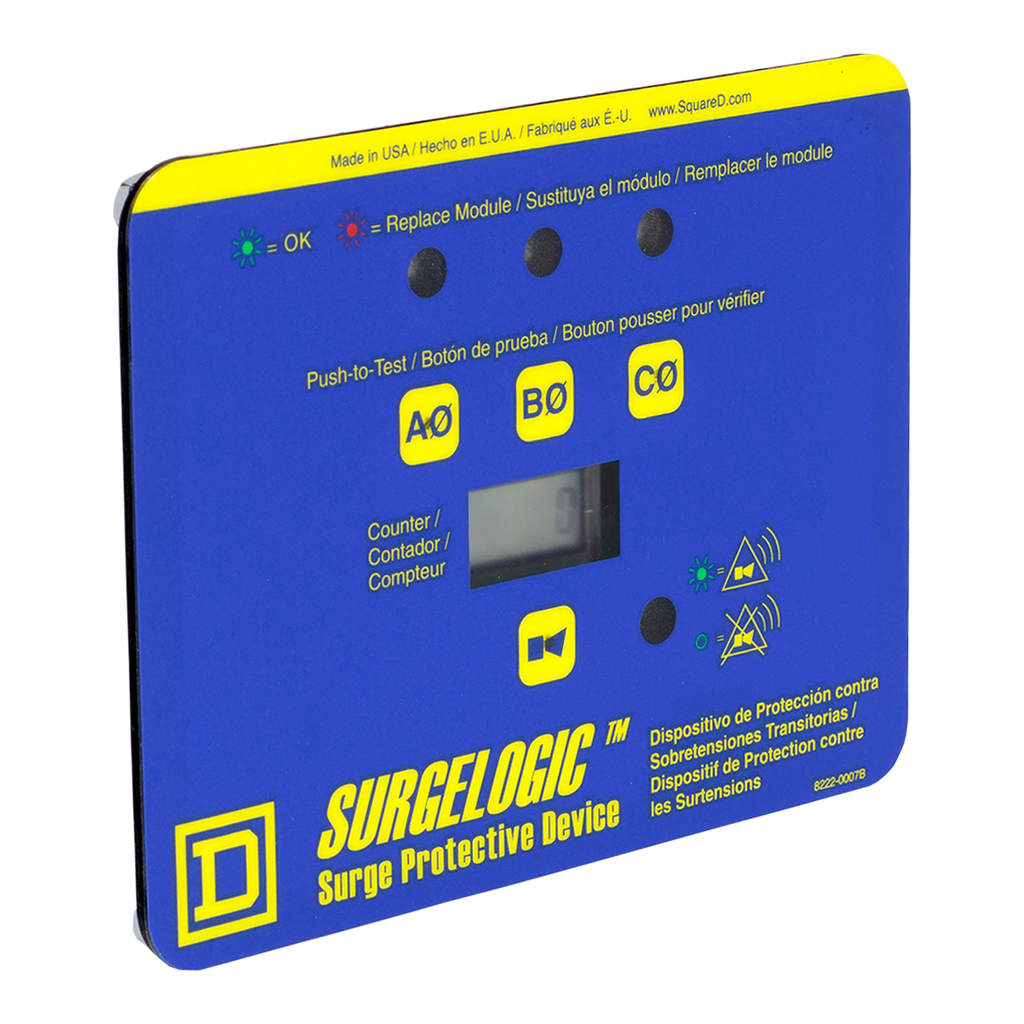

Transient voltage surge suppressor (TVSS) units protect sensitive electronic equipment from transients. TVSS is a modular parallel device designed for service entrance, distribution or branch panel applications. This kit is a digital display unit and counter. It is for three phase I-Line Plug-on SPDs. The unit has a horizontal orientation with the RJ45 patch cable connection at the bottom of the unit. This display unit is a replacement for TVSS Surgelogic.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Surgelogic |
|---|---|
| Product Or Component Type |
|
| Device Short Name | I-Line |
| Warranty | 18 months |
| Local Signalling |
|
| Connections - Terminals | RJ45 connector bottom |
| Surge Current | 120 kA per phase |
| Phase | 3 phase |
| [Ue] Rated Operational Voltage |
|
| China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
