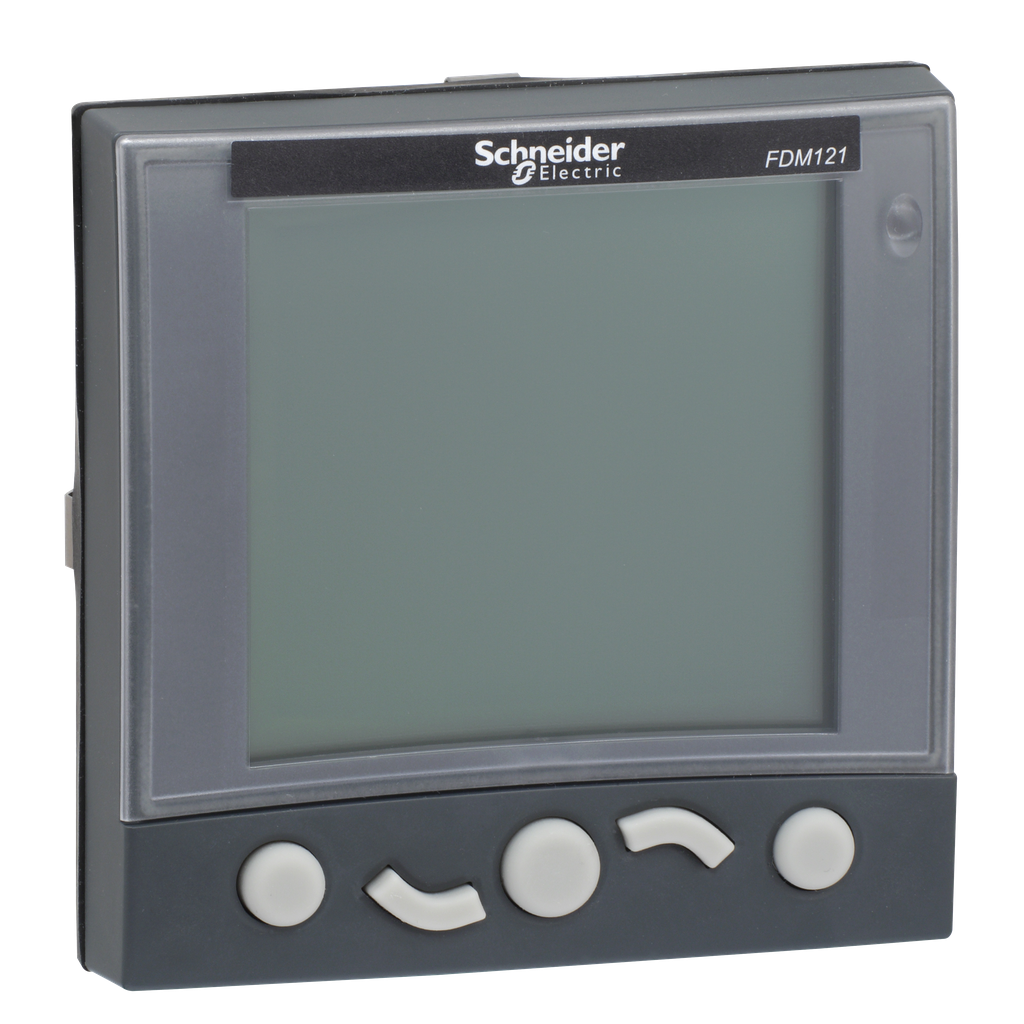

This FDM121 is an Ethernet switchboard display module and it is part of EnerlinX communication system. This display unit is compatible with Masterpact, Compact and PowerPact circuit breakers. FDM121 displays the measurements, alarms, and operating assistance data from one circuit breaker over ULP. Its LCD screen offers a high resolution with white backlighting. The FDM121 is equipped with a 24VDC terminal block and two RJ45 sockets for ULP connection. It is easily installed in a switchboard, either through a standard door cut-out (92x92mm) or two 22mm diameter holes. It is a 96 x 96 x 30 mm screen requiring 10 mm behind the door (or 20 mm when the 24 V power supply connector is used) The operating temperature range is between -10°C to 55°C, and the protection degree is IP54 on the front face. The FDM121 display module is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The FDM121 firmware can be updated using EcoStruxure Power Commission software.
Brand: Schneider Electric
Add to Quote CatalogueRange Compatibility |
|
---|---|
Accessory / Separate Part Category | display and signalling accessory |
Product Or Component Type | display module |
Product Name | Enerlin'X FDM |
Function Of Module |
|
Device Short Name | FDM121 |
Warranty | 18 months |
[Us] Rated Supply Voltage | 24 V DC - 20...10 % |
Height | 96 mm |
Standards |
|
Mounting Support |
|
Display Resolution | 128 x 128 pixels |
Current Consumption | 21 mA |
Control Type | remote control |
Accessory / Separate Part Category |
|
View Angle Horizontal X Vertical | 60 x 30° |
Mounting Mode | flush mounting |
Width | 96 mm |
Display Type | LCD screen with white backlighting |
Depth | 33.6 mm |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1510011 |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | Product out of China RoHS scope. Substance declaration for your information. |
Circularity Profile | ENVEOLI1510011EN |
Eu Rohs Directive | Compliant |
Ambient Air Temperature For Operation | -10-55 °C |
Ambient Air Temperature For Storage | -40-85 °C |
Ip Degree Of Protection | front face IP53 |
