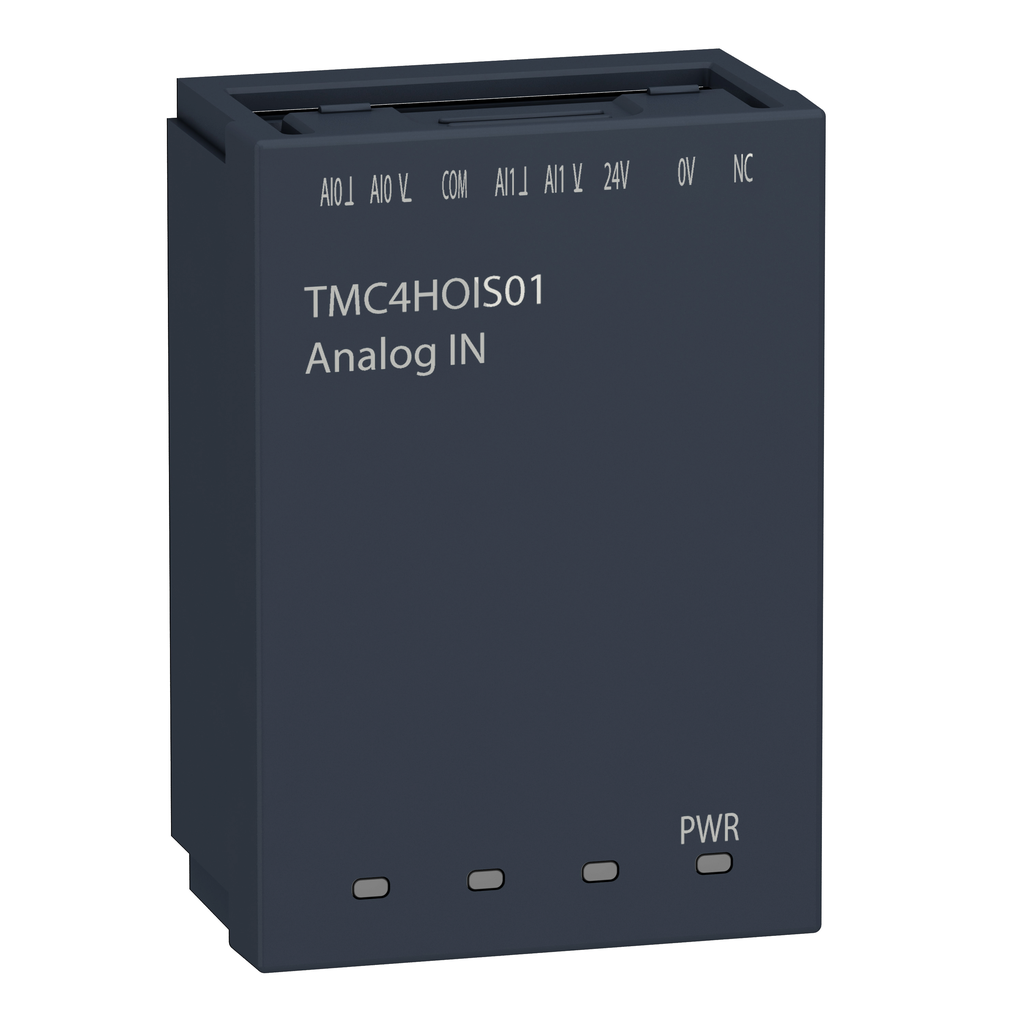

cartridge M241 - hoisting 1 analog input This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This application cartridge is for Modicon M241 logic controllers. It provides 2 analog inputs (voltage or current) for hoisting load cell with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. The Modicon M241 logic controllers are designed for high-performance compact machines incorporating speed and position control functions. This product is certified by CE, IACS E10, RCM, CSA, CULus. It meets ANSI/ISA 12-12-01, CSA C22.2 No 142, CSA C22.2 No 213, EN/IEC 61131-22007, marine specification (LR, ABS, DNV, GL), UL 1604 and UL 508 standards. This analogue output cartridge is compatible with Modicon M241C PLC. There is 1 slot for application cartridge on TM241C*24 . There are 2 slots for application cartridge on TM241C*40.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon M241 |
---|---|
Product Or Component Type | analogue input cartridge |
Analogue Input Number | 2 |
Product Specific Application | hoisting applications |
Product Compatibility | Modicon M241C |
Maximum Cable Distance Between Devices | twisted shielded pairs cable <30 m input |
Electrical Connection | 1 x 1.5 mm² 1 spring terminal block pitch 3.81 mm for inputs and supply |
Height | 50 mm |
Input Impedance |
|
Non-Linearity | +/- 0.05 %FS |
Lsb Value |
|
Permissible Continuous Overload |
|
Analogue Input Resolution | 16 bits |
Net Weight | 0.055 kg |
Type Of Cable | twisted shielded pairs cable |
Absolute Accuracy Error | +/- 0.2 % of full scale at 25 °C |
Temperature Drift | +/- 0.006 %FS/°C |
Supply Voltage Limits | 20.4-28.8 V |
Local Signalling | for PWR 1 LED (green) |
Cross Talk | 80 dB |
Width | 34 mm |
Depth | 21 mm |
Insulation |
|
Sampling Duration | 10 ms |
Repeat Accuracy | +/- 0.2 %FS |
Analogue Input Type |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1403017EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1403017EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Immunity To Microbreaks | 10 ms |
