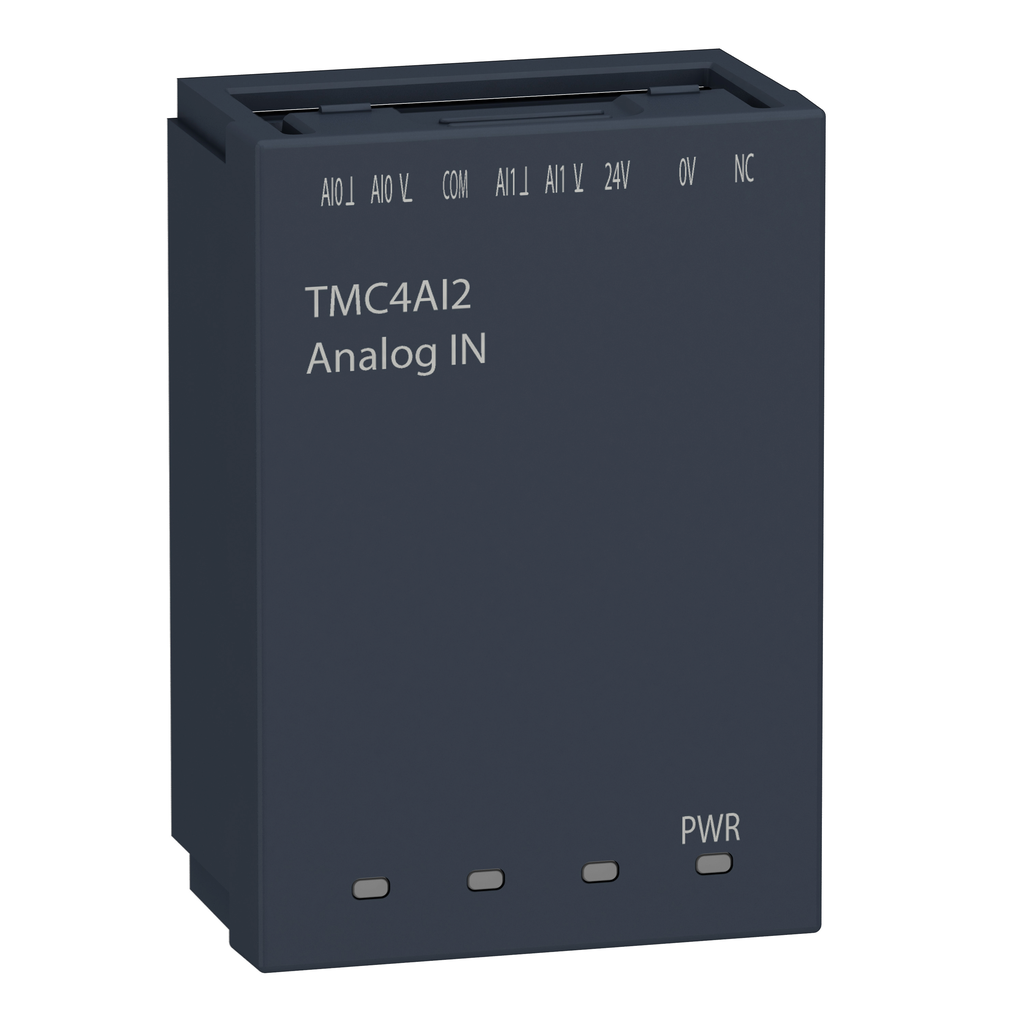

analogue input cartridge, Modicon M241, 2 analog current inputs
This product is part of the Modicon M241 range, an offer of logic controllers for performance demanding applications. This analogue input cartridge is for logic controllers. It provides 2 analogue current inputs with 16bit resolution. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is an insulation between input and internal logic at 500V DC and no insulation between inputs. It is furnished with spring terminal for electrical connection. Its dimensions are 34mm (Width) x 21mm (Depth) x 50mm (Height). It weighs 0.055kg. This analogue input cartridge is compatible with Modicon M241C PLC. Achieve benchmark performance while increasing profitability with the Modicon M241 through intuitive machine programming with EcoStruxure Machine Expert, ready-to-use applications and function blocks.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M241 |
|---|---|
| Product Or Component Type | analogue input cartridge |
| Analogue Input Number | 2 |
| Product Compatibility | Modicon M241C |
| Maximum Cable Distance Between Devices | twisted shielded pairs cable <30 m input |
| Electrical Connection | 1 x 1.5 mm² 1 spring terminal block pitch 3.81 mm for inputs and supply |
| Height | 50 mm |
| Input Impedance |
|
| Non-Linearity | +/- 0.05 %FS |
| Lsb Value |
|
| Permissible Continuous Overload |
|
| Analogue Input Resolution | 16 bits |
| Net Weight | 0.055 kg |
| Type Of Cable | twisted shielded pairs cable |
| Absolute Accuracy Error | +/- 0.2 % of full scale at 25 °C |
| Temperature Drift | +/- 0.006 %FS/°C |
| Supply Voltage Limits | 20.4-28.8 V |
| Local Signalling | for PWR 1 LED (green) |
| Cross Talk | 80 dB |
| Width | 34 mm |
| Depth | 21 mm |
| Insulation |
|
| Sampling Duration | 10 ms |
| Repeat Accuracy | +/- 0.2 %FS |
| Analogue Input Type |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403017EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Immunity To Microbreaks | 10 ms |
