TMC2TI2 - analogue input cartridge, Modicon M221, 2 temperature inputs, IO extension

TMC2TI2

analogue input cartridge, Modicon M221, 2 temperature inputs, IO extension

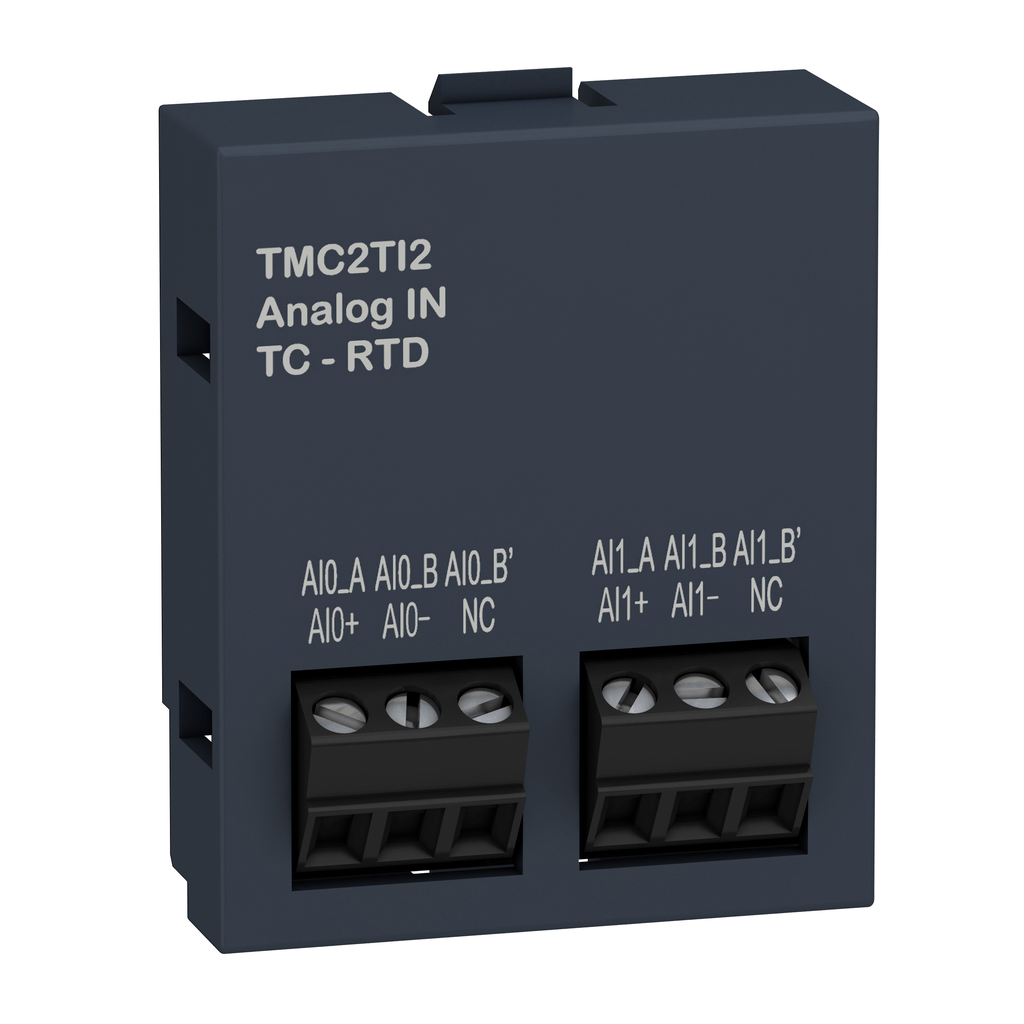

This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 temperature inputs with 14bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks

Brand: Schneider Electric

Add to Quote Catalogue

Specifications

Range Of Product	Modicon M221
Product Or Component Type	analogue input cartridge
Analogue Input Number	2
Product Compatibility	Modicon M221C
Maximum Cable Distance Between Devices	twisted shielded pairs cable <30 m input
Electrical Connection	3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs
Height	41 mm
Input Impedance	>= 1 MOhm
Non-Linearity	+/- 0.01 %FS
Lsb Value	0.1 °C
Analogue Input Resolution	14 bits
Net Weight	0.015 kg
Type Of Cable	twisted shielded pairs cable
Absolute Accuracy Error	+/- 0.1 % of full scale at 25 °C for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe +/- 0.4 % of full scale at 25 °C for thermocouple N - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple N 0...1300 °C +/- 6 °C at 25 °C for thermocouple R, S 0...200 °C +/- 0.1 % of full scale at 25 °C for thermocouple R, S 200...1760 °C +/- 0.1 % of full scale at 25 °C for thermocouple C 0...2315 °C +/- 0.4 % of full scale at 25 °C for thermocouple K - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple K 0...1300 °C +/- 0.4 % of full scale at 25 °C for thermocouple J - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple J 0...1000 °C +/- 0.4 % of full scale at 25 °C for thermocouple E - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple E 0...800 °C +/- 0.4 % of full scale at 25 °C for thermocouple T - 200...0 °C +/- 0.1 % of full scale at 25 °C for thermocouple T 0...400 °C
Temperature Drift	+/- 0.02 %FS/°C
Cross Talk	<= 1 LSB
Width	35 mm
Depth	15 mm
Insulation	non-insulated between analogue input and internal logic
Sampling Duration	125 ms thermocouple 250 ms temperature probe
Repeat Accuracy	+/- 0.5 %FS
Analogue Input Type	thermocouple - 200...1000 °C thermocouple J Ni 100/Ni 1000 temperature probe - 60...180 °C Pt 100 temperature probe - 200...850 °C Pt 1000 temperature probe - 200...600 °C thermocouple - 200...1300 °C thermocouple K thermocouple 0...1760 °C thermocouple R thermocouple 0...1760 °C thermocouple S thermocouple 0...1820 °C thermocouple B thermocouple - 200...400 °C thermocouple T thermocouple - 200...1300 °C thermocouple N thermocouple - 200...800 °C thermocouple E thermocouple 0...2315 °C thermocouple C
Rohs Exemption Information	Yes
Mercury Free	Yes
Environmental Disclosure	ENVPEP1403017EN
Sustainable Offer Status	Green Premium product
Pvc Free	Yes
Toxic Heavy Metal Free	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
California Proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs Regulation	X
Circularity Profile	ENVEOLI1403017EN
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
Immunity To Microbreaks	10 ms
