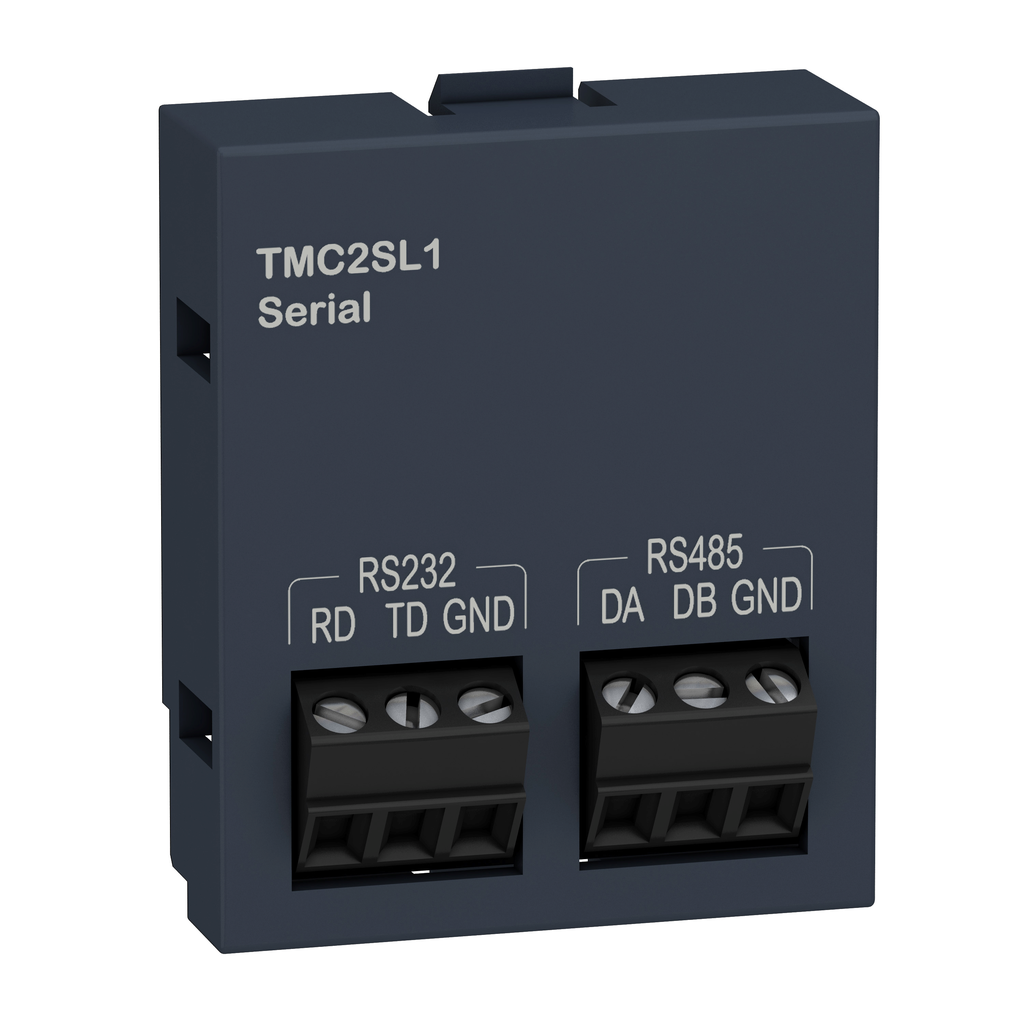

communication cartridge module, Modicon M221, 1 serial line extension
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This serial line cartridge is a communication extension which support transmission rate 1.2kbps to 115.2kbps for bus length of 15m for RS485 and 3m for RS232. This product requires minimal installation and offers tremendous versatility. There is no insulation between lines and internal logic. It has non isolated serial link communication port protocols like Modbus master/slave and RTU/ASCII or SoMachine-Network. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M221 |
|---|---|
| Product Or Component Type | serial line cartridge |
| Product Compatibility | Modicon M221C |
| Height | 41 mm |
| Transmission Rate |
|
| Communication Port Protocol | non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network |
| Net Weight | 0.015 kg |
| Integrated Connection Type |
|
| Width | 35 mm |
| Depth | 15 mm |
| Insulation | non-insulated between lines and internal logic |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403017EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
