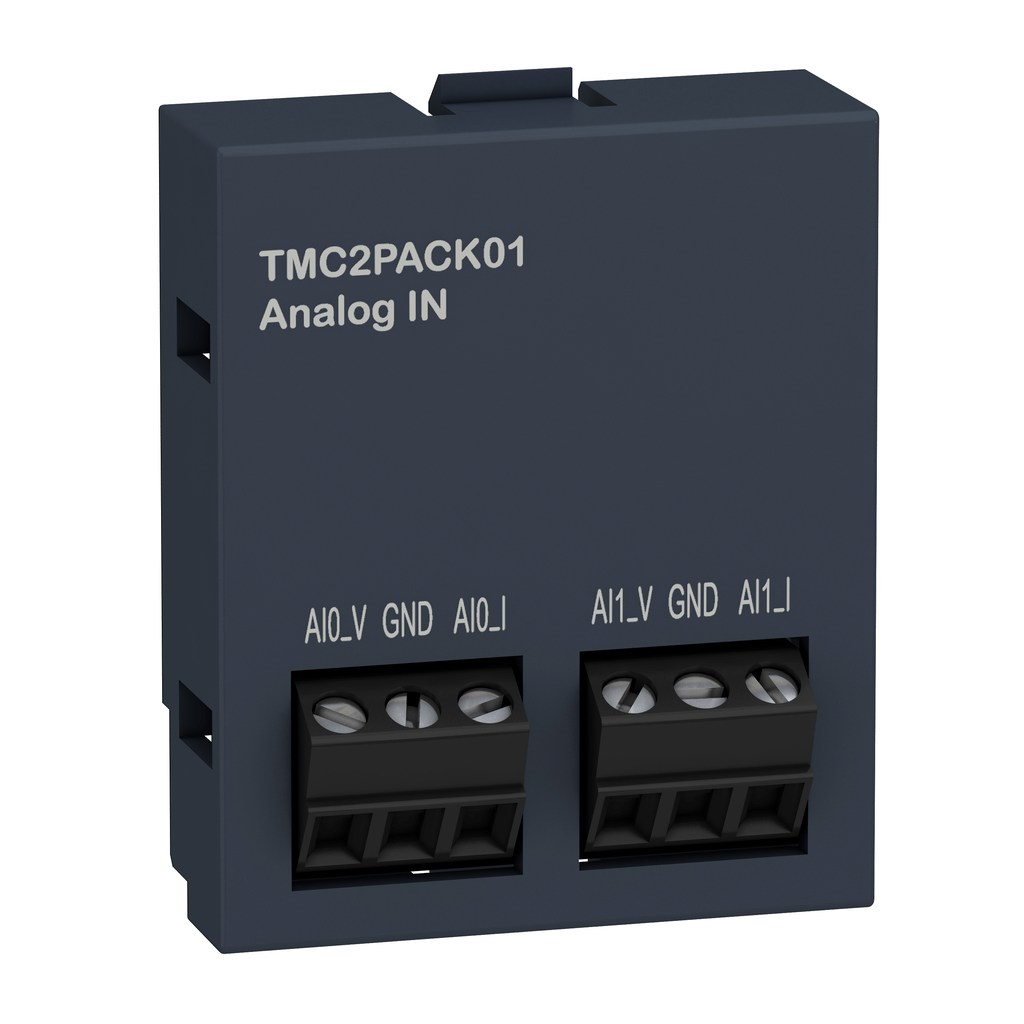

cartridge M221 - packaging 2 analog inputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides 2 dedicated analog inputs for controlling the temperature on a packaging machine. The analog input types are current 0 to 20 mA, 4 to 20 mA and voltage 0 to 10 v. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon M221 |
---|---|
Product Or Component Type | analogue input cartridge |
Analogue Input Number | 2 |
Product Specific Application | packaging |
Product Compatibility | Modicon M221C |
Maximum Cable Distance Between Devices | twisted shielded pairs cable <30 m input |
Electrical Connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs |
Height | 41 mm |
Input Impedance |
|
Non-Linearity | +/- 0.01 %FS |
Lsb Value |
|
Permissible Continuous Overload |
|
Analogue Input Resolution | 12 bits |
Net Weight | 0.015 kg |
Type Of Cable | twisted shielded pairs cable |
Absolute Accuracy Error |
|
Temperature Drift | +/- 0.02 %FS/°C |
Cross Talk | <= 1 LSB |
Width | 35 mm |
Depth | 15 mm |
Conversion Time | 20 ms |
Insulation | non-insulated between analogue input and internal logic |
Sampling Duration | 10 ms |
Repeat Accuracy | +/- 0.5 %FS |
Analogue Input Type |
|
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1403017EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1403017EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Immunity To Microbreaks | 10 ms |
