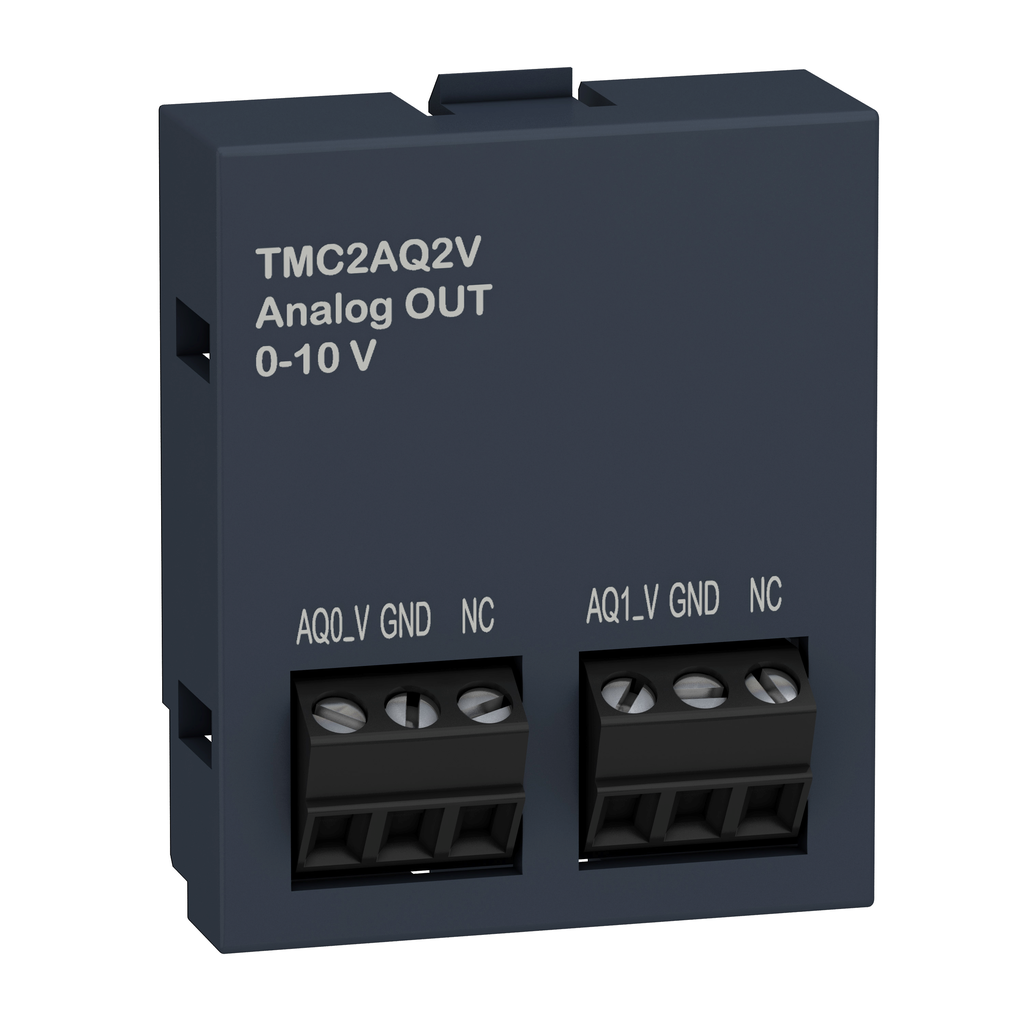

analogue output cartridge, Modicon M221, 2 analog voltage outputs, IO extension
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue output cartridge provides 2 outputs with 12bit output resolution. The analogue output voltage ranges from 0V to 10V. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue output and internal logic. It is furnished with screw terminal for electrical connection with pitch 3.81mm adjustment for outputs. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M221 |
|---|---|
| Product Or Component Type | analogue output cartridge |
| Product Compatibility | Modicon M221C |
| Maximum Cable Distance Between Devices | twisted shielded pairs cable <30 m output |
| Electrical Connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for outputs |
| Height | 41 mm |
| Load Type | resistive |
| Analogue Output Type | voltage 0...10 V |
| Non-Linearity | +/- 0.01 %FS |
| Lsb Value | 2.44 mV 0...10 V voltage |
| Net Weight | 0.015 kg |
| Type Of Cable | twisted shielded pairs cable |
| Absolute Accuracy Error |
|
| Analogue Output Resolution | 12 bits |
| Temperature Drift | +/- 0.02 %FS/°C |
| Stabilisation Time | 40 ms |
| Analogue Output Number | 2 |
| Load Impedance Ohmic | >= 2 kOhm |
| Cross Talk | <= 1 LSB |
| Width | 35 mm |
| Depth | 15 mm |
| Conversion Time | 20 ms |
| Insulation | non-insulated between analogue output and internal logic |
| Repeat Accuracy | +/- 0.4 %FS |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403017EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Immunity To Microbreaks | 10 ms |
