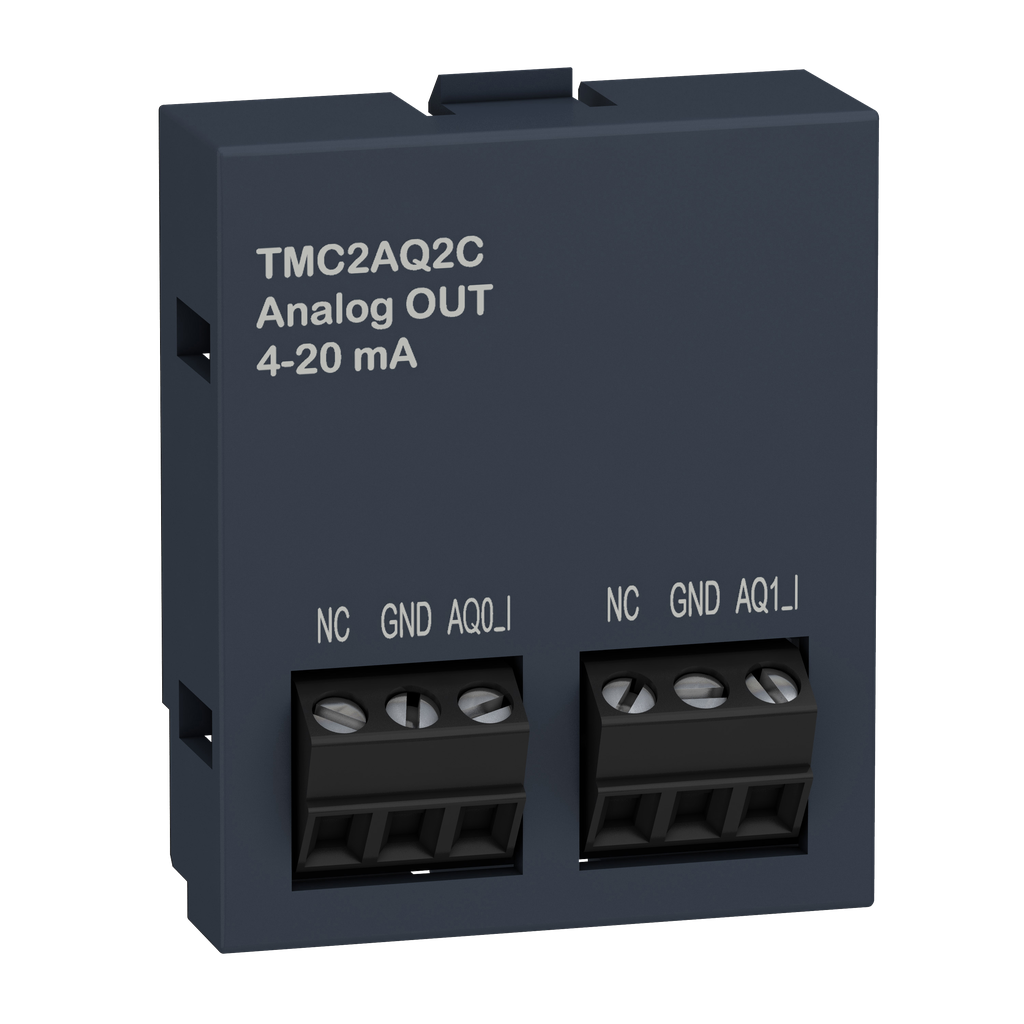

analogue output cartridge, Modicon M221, 2 analog current outputs, IO extension
cartridge M221 - 2 analog current outputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analog input cartridge is an option for Modicon M221C logic controller. It provides 2 current analog outputs with 12bit input resolution. The analog input type is 4…20 mA current. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M221 |
|---|---|
| Product Or Component Type | analogue output cartridge |
| Product Compatibility | Modicon M221C |
| Maximum Cable Distance Between Devices | twisted shielded pairs cable <30 m output |
| Electrical Connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for outputs |
| Height | 41 mm |
| Load Type | resistive |
| Analogue Output Type | current 4...20 mA |
| Non-Linearity | +/- 0.01 %FS |
| Lsb Value | 3.91 µA 4...20 mA current |
| Net Weight | 0.015 kg |
| Type Of Cable | twisted shielded pairs cable |
| Absolute Accuracy Error |
|
| Analogue Output Resolution | 12 bits |
| Temperature Drift | +/- 0.02 %FS/°C |
| Stabilisation Time | 40 ms |
| Analogue Output Number | 2 |
| Load Impedance Ohmic | <= 500 Ohm |
| Cross Talk | <= 1 LSB |
| Width | 35 mm |
| Depth | 15 mm |
| Conversion Time | 20 ms |
| Insulation | non-insulated between analogue output and internal logic |
| Repeat Accuracy | +/- 0.4 %FS |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403017EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Immunity To Microbreaks | 10 ms |
