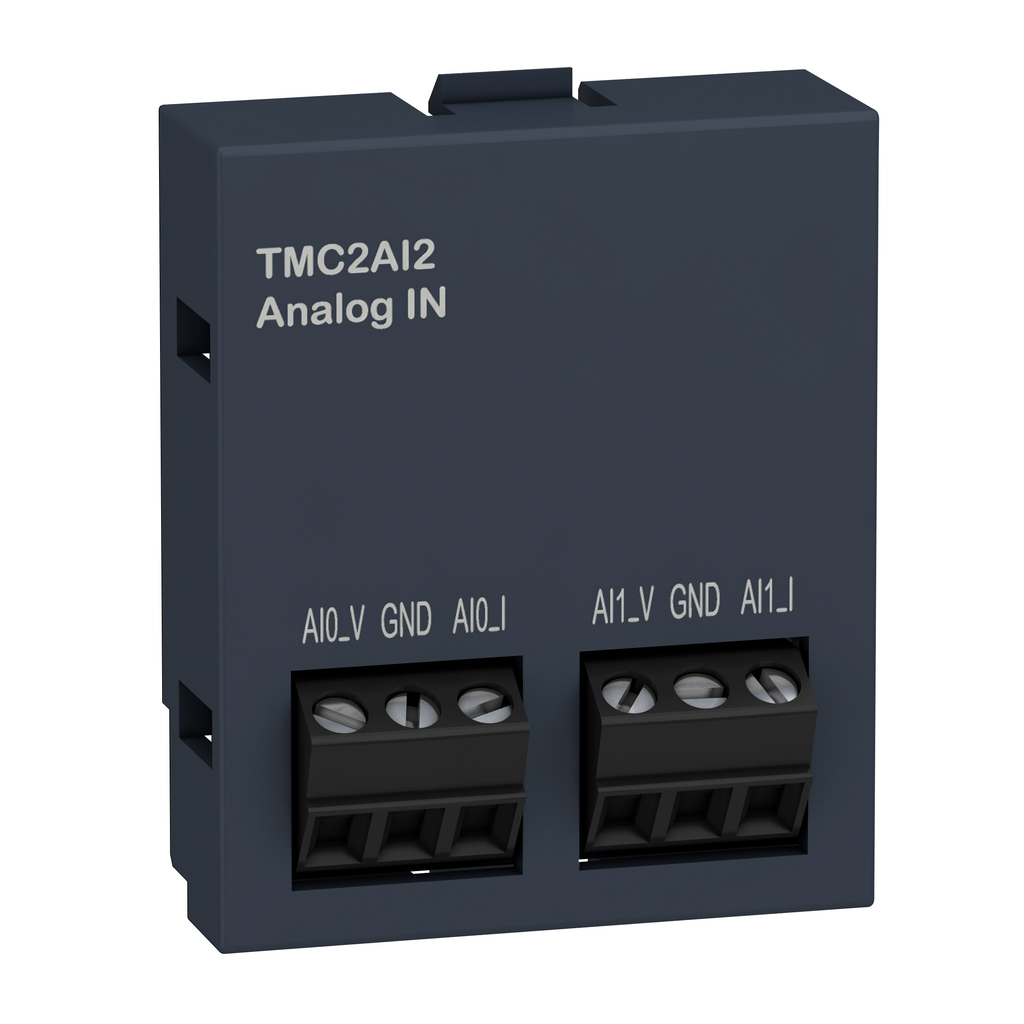

analogue input cartridge, Modicon M221, 2 analog inputs, IO extension
This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This analogue input cartridge provides 2 inputs with 12bit input resolution. This product requires minimal installation and offers tremendous versatility. The maximum twisted shielded pairs cable distance between devices is <30m for input. There is no insulation between analogue input and internal logic. It is furnished with screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This cartridge is compatible with Modicon M221C PLC. Achieve benchmark performance while increasing profitability with the Modicon M221 through intuitive machine programming with SoMachine Basic, ready-to-use applications and function blocks
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Range Of Product | Modicon M221 |
|---|---|
| Product Or Component Type | analogue input cartridge |
| Analogue Input Number | 2 |
| Product Compatibility | Modicon M221C |
| Maximum Cable Distance Between Devices | twisted shielded pairs cable <30 m input |
| Electrical Connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs |
| Height | 41 mm |
| Input Impedance |
|
| Non-Linearity | +/- 0.01 %FS |
| Lsb Value |
|
| Permissible Continuous Overload |
|
| Analogue Input Resolution | 12 bits |
| Net Weight | 0.015 kg |
| Type Of Cable | twisted shielded pairs cable |
| Absolute Accuracy Error |
|
| Temperature Drift | +/- 0.02 %FS/°C |
| Cross Talk | <= 1 LSB |
| Width | 35 mm |
| Depth | 15 mm |
| Conversion Time | 20 ms |
| Insulation | non-insulated between analogue input and internal logic |
| Sampling Duration | 10 ms |
| Repeat Accuracy | +/- 0.5 %FS |
| Analogue Input Type |
|
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1403017EN |
| Sustainable Offer Status | Green Premium product |
| Pvc Free | Yes |
| Toxic Heavy Metal Free | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1403017EN |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Immunity To Microbreaks | 10 ms |
