TMAT2PSET
connector set, Modicon M221, for M2X1 power supply

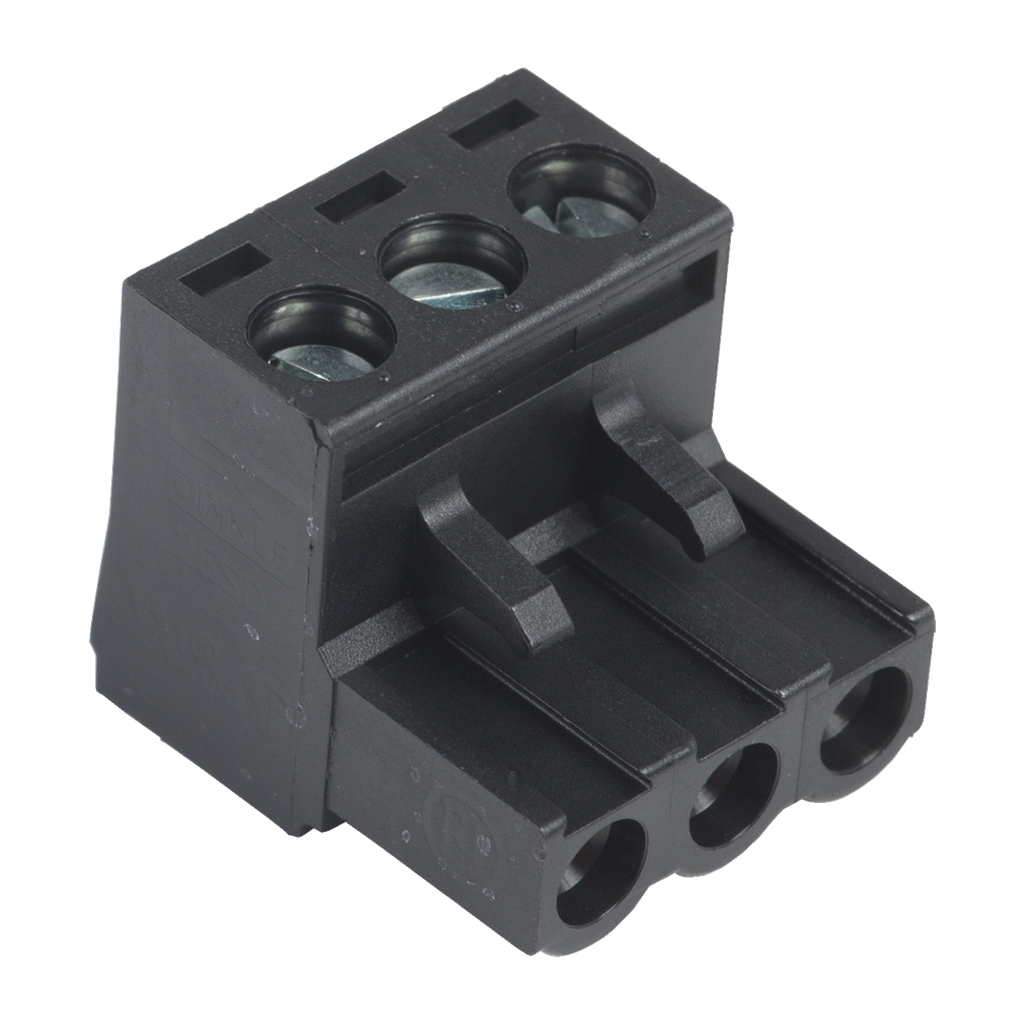

connector set for M2X1 - power supply This connector set is proposed as a spare part available for Modicon M221 logic controllers. It is used to connect the power supply of Modicon M221 and M221 Book controllers. It is composed of 8 removable terminal blocks with screw terminals used to equip a Modicon M221 or Modicon M221 Book logic controller. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards.
Brand: Schneider Electric
Add to Quote CatalogueSpecifications
| Accessory / Separate Part Category | connection accessories |
|---|---|
| Product Or Component Type | terminal block |
| Accessory / Separate Part Type | screw terminal block |
| Electrical Connection | removable screw terminal block, 3 for connecting the AC or DC power supply pitch 5.08 mm) |
| Range Compatibility |
|
| Number Of Connectors | 8 terminal block |
| Product Compatibility | logic controller |
| Net Weight | 0.127 kg |
| Accessory / Separate Part Destination | Modicon M221 |
| China Rohs Regulation | X |
| Rohs Exemption Information | Yes |
| Mercury Free | Yes |
| Pvc Free | Yes |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
