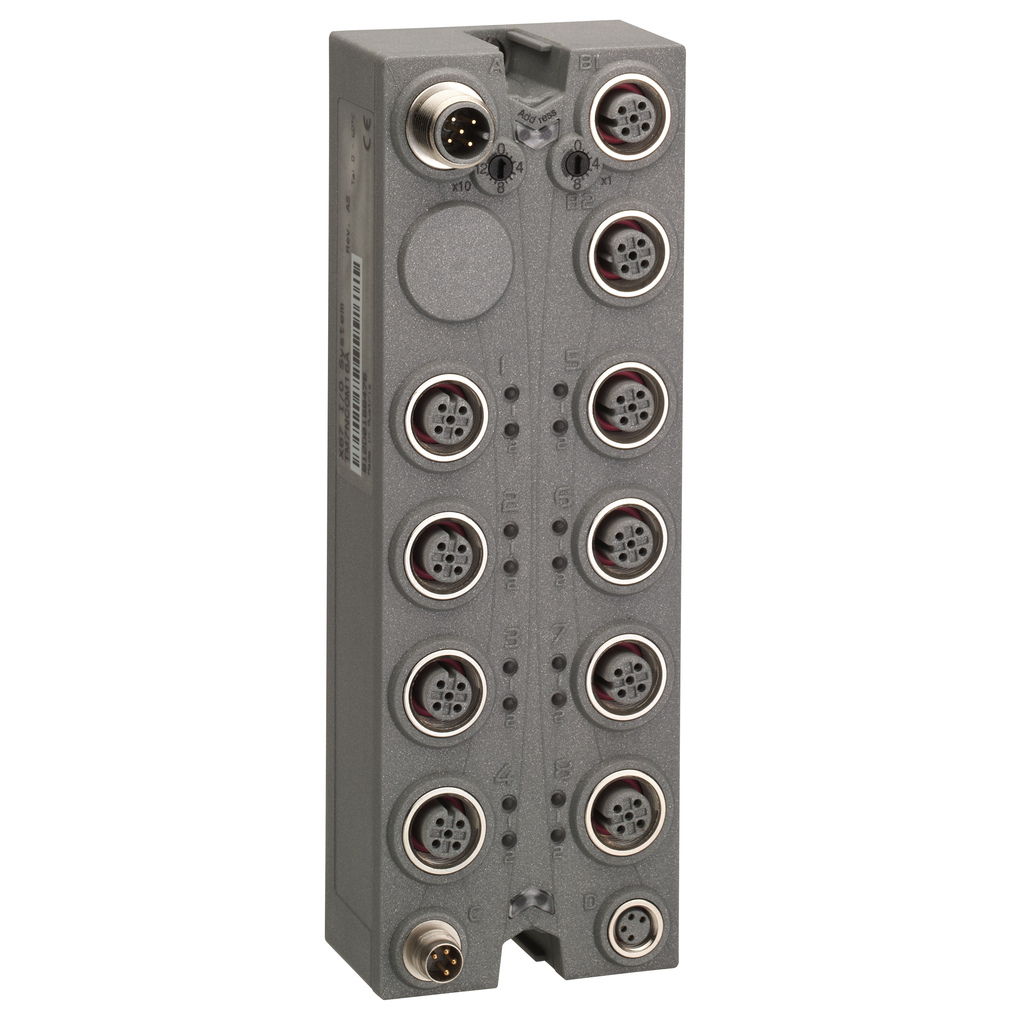

This product is part of the Modicon TM7 range, modular I/O system. This CANopen interface block provides 16 I/O blocks with positive discrete input logic and transistor discrete output. It is an interface block with a rated operational voltage of 24V DC, a discrete I/O voltage of 24V DC and a discrete input current of 4.4mA. It is an IP67 rated product. It weighs 0.32kg. This product is certified by ATEX II 3g EEx nA II T5, C-Tick, CE, CURus and GOST-R. It meets IEC 61131-2 standards. This range is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It can be fixed with screws. Dust/damp-proof and robust, the modular IO system Modicon TM7 enables connection of sensors and actuators at the heart of processes or machines in harsh environments. The Modicon TM7 CANopen interface blocks enable sensors and actuators distributed over machines to be connected via the CANopen fieldbus. These interface blocks communicate on the bus.
Brand: Schneider Electric
Add to Quote CatalogueRange Of Product | Modicon TM7 |
---|---|
[Ue] Rated Operational Voltage | 24 V DC |
Product Or Component Type | CANopen interface I/O block |
Input/Output Number | 16 |
Input/Output Number Of Splitter Box | 16 I/O |
Bus Type | CANopen |
Enclosure Material | Plastic |
Range Compatibility |
|
Warranty | 18 months |
Discrete Output Type | transistor |
Discrete Input Voltage | 24 V |
Fixing Mode | by 2 screws |
Discrete Input Voltage Type | DC |
Discrete Output Voltage Type | DC |
Discrete Output Number | 0-16 configurable by software |
Discrete Input Number | 0-16 configurable by software |
Discrete Input Current | 4.4 mA |
Discrete Output Current | <= 0.5 A |
Electrical Connection |
|
Net Weight | 0.32 kg |
Discrete Output Voltage | 24 V |
Discrete Input Logic | positive |
Sensor Power Supply | 24-24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection |
Local Signalling |
|
Operating Position | any position |
Rohs Exemption Information | Yes |
Mercury Free | Yes |
Environmental Disclosure | ENVPEP1409005EN |
Sustainable Offer Status | Green Premium product |
Pvc Free | Yes |
Toxic Heavy Metal Free | Yes |
Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
California Proposition 65 | WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
China Rohs Regulation | X |
Circularity Profile | ENVEOLI1409005EN |
Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
Product Certifications |
|
Ambient Air Temperature For Operation | -10-60 °C |
Resistance To Electromagnetic Fields |
|
Standards | IEC 61131-2 |
Storage Altitude | 0-3000 m |
Shock Resistance | 30 gn 11 ms IEC 60721-3-5 Class 5M3 |
Marking | CE |
Vibration Resistance |
|
Ip Degree Of Protection | IP67 conforming to IEC 61131-2 |
Disturbance Radiated/Conducted | CISPR 11 |
Electromagnetic Compatibility | EN/IEC 61000-4-6 |
Pollution Degree | 2 IEC 60664 |
Surge Withstand |
|
Ambient Air Temperature For Storage | -25-85 °C |
Relative Humidity | 5-95 % without condensation or dripping water |
Resistance To Electrostatic Discharge |
|
Resistance To Fast Transients |
|
Operating Altitude | 0...6561.68 ft (0...2000 m) |
